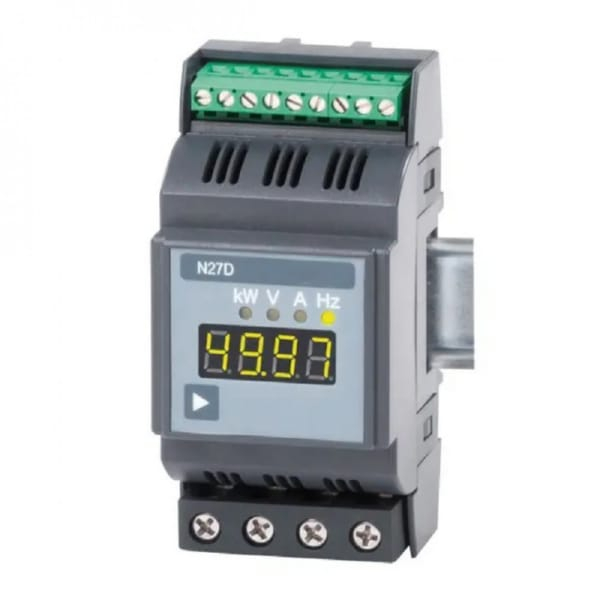

PCE Instruments PCE-N27D Performance Indicator for Compliance
- Part #:PCE-N27D
- Condition:Brand New
- List Price: $165.00
- $152.04 / EachYou Save: 7.85%
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e)
Free Shipping
- List Price: $165.00
- $152.04 / EachYou Save: 7.85%
- Free Shipping
Performance indicator for compliance with ISO 50001 / measures up to 63 A direct / measurement and display of current, voltage, power and frequency
The power indicator measures current up to 63 A directly. This makes it possible to connect the power indicator directly to the main distribution. The power indicator measures all relevant network parameters such as current, voltage, power and frequency. The power indicator is ideally suited for measurement purposes in order to comply with the ISO 50001 energy management standard.
Features:
- Measures up to 63 A directly
- Measurement of U, I, f, P
- DIN rail mounting
- To comply with ISO 50001
- Switchable size
- Simple operation
- LED display
- Easy installation
Includes:
- 1 x Power indicator PCE-N27D
- 1 x User manual
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Technical specification | |||
| entrance | display | Measuring range | accuracy |
| U.N | 500 V AC | 0.01 ... 1.2 x Un | ± 0.5% of measuring range. |
| In | 63 A AC | 0.01 ... 1.2 x In | ± 0.5% of measuring range. |
| Voltage frequency | 2 ... 500 Hz | ± 0.02% of the meas. | |
| Current frequency | 45 ... 500 Hz | ± 0.02% of the meas. | |
| Wealth | -31.5 to 31.5 kW | ± 1% of the measured value. | |
General technical specification for performance indication | |||
| display | 4-digit LED display | ||
| Digit height | 8.5 mm | ||
| Color | Yellow | ||
| Display area | -1999 ... 9999 | ||
| Dimensions | 53 x 110 x 60 mm / 2 x 4.3 x 2.3 in | ||
| Display frames | 45 x 53 mm / 1.7 x 2 in | ||
| mass | Approx. 250 g / 8.8 oz | ||
| Assembly | To 35 mm DIN rail | ||
| Environmental conditions | -10 ... 55 °C / 14 ... 131 °F / <95% rh | ||
| Degree of protection | CAT III 300 V / CAT II 600 V | ||
