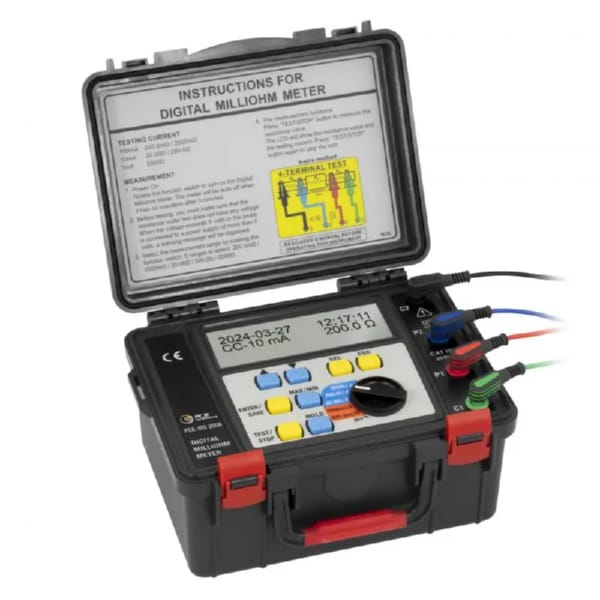

PCE Instruments PCE-MO 2006 Milliohmmeter with 4-Wire Measuring Method

Part #:PCE-MO 2006
Condition:Brand New

List Price: $905.00
$740.30 / Each
You Save: 18.2%
Free Shipping

List Price: $905.00
$740.30 / Each
You Save: 18.2%
Free Shipping

Typically In Stock

Check Availability

Quantity:

Description

Milliohmmeter with 4-wire measuring method / 5 selectable measuring ranges / Internal memory / MAX/MIN/HOLD functions
The milliohmmeter is a compact and precise measuring device with 5 selectable scale ranges for measuring resistances in the range from 0 mΩ . .. 2000 Ω. The use of the 4-wire measuring method enables a precise current flow through the measurement object while simultaneously measuring the voltage across it. Separate connections for current and voltage minimise errors and enable accurate resistance measurements.

Equipped with an integrated fuse (200 mA/600 V) and three test currents, it offers reliable protection and flexibility. The milliohmmeter complies with the CAT III 300V safety standard. The device has an internal memory that can store a maximum of 200 values, which can also be recalled via the display. In addition, the MAX/MIN/HOLD functions allow important values to be displayed. The milliohmmeter has a 5.1 inch LC display with backlighting. The robust housing (protection class IP65 with closed cover) enables use in harsh conditions, and the low battery indicator ensures the reliability of the device.

The milliohmmeter is a compact measuring device for precise resistance measurements in various industries.

Features:

4-wire measuring method
5 selectable measuring ranges
MAX/MIN/HOLD functions
Automatic switch-off
LC display 5.1 inch with illumination
Internal memory
Date and time display

Includes:

1 x milliohmmeter PCE-MO 2006
4 x test leads
1 x carrying strap
8 x LR44 1.5 V batteries
1 x operating instructions

See more product information Report an issue with this product

⚠️ Attention CA Residents: Prop 65 Warning

📈 Tariffs may impact pricing; subject to manufacturer updates.

You May Also Like
Your Recently Viewed
Reviews
Q&A

Technical details

Resistance
Measuring range	0 mΩ ... 200 mΩ
Resolution	0.1 mΩ
Accuracy	± 0.8% of VAT

Resistance
Measuring range	0 mΩ ... 2000 mΩ
Resolution	1 mΩ
Accuracy	± 0.8% of VAT

Resistance
Measuring range	0 Ω ... 20 Ω
Resolution	10 mΩ
Accuracy	±0.8% of VAT

Resistance
Measuring range	0 Ω ... 200 Ω
Resolution	0.1 Ω
Accuracy	±0.8% of VAT

Resistance
Measuring range	0 Ω ... 2000 Ω
Resolution	1 Ω
Accuracy	±0.8% of VAT

General technical data
Measurement functions	MIN, MAX, HOLD
Display type	LCD with illumination
Display size	5.1 inch
Storage medium	Internal memory
Memory capacity	200 measurements
Standard(s)	EN 61010-1, EN 61326-1
Automatic switch-off	3 min
Safety standard	CAT III 300V
Fuse(s)	200 mA / 600 V
Measurement method	4-wire method for mΩ measurement
Test current	100 mA: 200.0 mΩ / 2000 mΩ 10 mA: 20.00 Ω / 200.0 Ω 1 mA: 2000 Ω
Menu language	English
Protection class (device)	IP65
Protection class (additional information)	Only with closed lid
Weight	1500 g
Dimensions (L x W x H)	245 x 190 x 130 mm
Operating conditions	0 ... 40 °C , 0 ... 80 % r.H
Storage conditions	0 ... 40 °C , 0 ... 80 % r.H
Accumulator/battery	8x 1.5 V LR14 , alkaline-manganese
Capacity	7000 mAh
