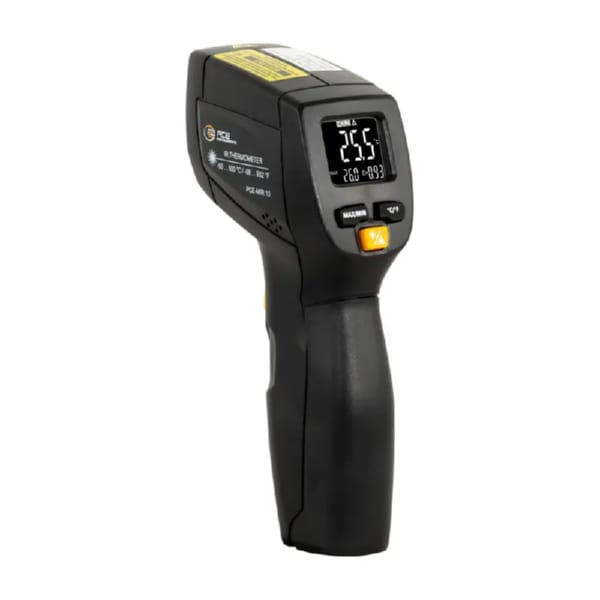

PCE Instruments PCE-MIR 10 Condition Monitoring
- Part #:PCE-MIR 10
- Condition:Brand New
- List Price: $47.00
- $44.56 / EachYou Save: 5.19%
%20Copyright%202023%20Fonticons,%20Inc.%20--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048V96H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20272c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2048c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20240c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2016c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20208c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64V416c0%2053%2043%2096%2096%2096s96-43%2096-96H384c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V288%20256%20237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48H112zM544%20237.3V256H416V160h50.7L544%20237.3zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96zm272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201%20-96%200z'/%3e%3c/svg%3e)
Free Shipping
Infrared thermometer with a measuring range of -50 ... +500 °C / emission value 0.95 / Display of largest and smallest measured value / backlit display / measuring spot 12:1 / quickly ready for use
The thermometer has a measuring range of -50 ... +500 °C and covers a wide temperature range. With an accuracy of ±2 % ±2 °C at 20 ... 500 °C, the thermometer is a very precise measuring device. For better orientation of the measuring spot, a laser pointer is built into the thermometer. This laser has an output power of <1 mW. The emission value of the thermometer is fixed at 0.95.
The thermometer is used, for example, for surface temperature testing of electric motors, combustion engines or heat sinks. Thanks to its compact design, the thermometer is handy and can be easily stowed away.
To switch on the thermometer, press the measuring button. The measurement is then immediately taken by the thermometer. When the button is released, the last value remains on the thermometer display until a new measurement is taken.
Features:
- Measuring range -50 ... 500 °C
- Automatic switch-off
- Immediate operating range
- Measuring ratio 12:1
- Max / Min function
Includes:
- 1 x Infrared Thermometer PCE-MIR 10
- 1 x Carrying bag
- 1 x instruction manual
- You May Also Like
- Your Recently Viewed
- Reviews
| Measuring range | -50 … +500 °C / -58 … +932 °F |
| Resolution | 0,1 °C / 0,1 °F |
| Accuracy | ±3 °C / 5,4 °F bei -50 … +20 °C / -58 … +68 °F |
| ±2 % ±2 °C / 3,6 °F bei 20 … 500 °C / 68 … 932 °F | |
| Repeatability | ±1 °C / ±1,8 °F |
| Spot ratio | 12:1 |
| Emission value | 0,95 fixed |
| Measuring rate | 2 Hz |
| Spectral range | 8 … 14 µm |
| Overload indicator | „ - - - - „ |
| Laser | output power: <1 mW; wavelength: 630 ... 670 mm; |
| Laser class: 2 | |
| Power supply | 9 V block battery |
| Operating conditions | 00 ... 50 °C / 32 ... 122 °F, <90 % r. h. |
| Storage conditions | -10 ... 60 °C / 14 ... 140 °F, <80 % r. h. |
| Dimensions | 175 x 75 x 35 mm |
| Weight | 132 g |
