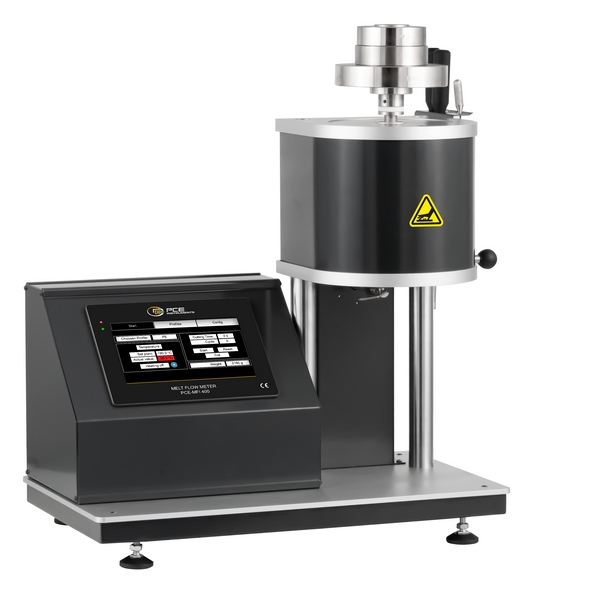

PCE Instruments PCE-MFI 400 Material Flow Index Tester

Overview

This advanced plastic testing device, the PCE Instruments PCE-MFI 400 Material Flow Index Tester, is engineered for rapid and precise determination of the melt mass flow rate (MFR) and melt volume flow rate (MVR) of plastics. It directly addresses the critical need for efficient quality control in both incoming goods inspection and continuous production monitoring within the plastics industry. Designed for high temperature stability up to 400°C (752°F) and capable of measuring melt rates up to 400.0 g/10 min, the PCE-MFI 400 features a large, clear 7" TFT touch display for intuitive operation and quick result determination. With an automatic cutting function for high reproducibility, pre-programmed standard plastics (PS, PP, PE, ABS, PC, PMMA, etc.), and included test weights, this robust plastometer provides plastics manufacturers, quality control laboratories, and research departments with an indispensable tool for ensuring the consistency, processability, and quality of polymer materials.

Key Features

• Rapid Melt Flow Rate Testing: Efficiently determines Melt Mass Flow Rate (MFR) and Melt Volume Flow Rate (MVR) for quick quality assessment of plastics.
• High Temperature Stability (Up to 400°C / 752°F): Capable of testing a wide range of plastics requiring elevated processing temperatures.
• Large 7" TFT Touch Display: Provides a clear and intuitive interface for easy operation, parameter display, and quick viewing of measurement results.
• Automatic Cutting Function: Enhances measurement reproducibility by ensuring consistent sample cutting during the test process.
• Pre-Set Standard Plastics & Parameters: Includes pre-programmed standard test temperatures and weights for common plastics (PS, PP, PE, ABS, PC, PMMA, etc.), streamlining setup.

Specifications

Product Name: PCE Instruments PCE-MFI 400 Material Flow Index Tester

Testing Method: Melt Mass Flow Rate (MFR) / Melt Volume Flow Rate (MVR)

Max. Heating Temperature: 400°C (752°F)

Melt Rate Range: Up to 400.0 g / 10 min

Display: 7" TFT Touch Display

Features: Automatic cutting function, high temperature stability, programmable temperature control, heating time display

Pre-set Materials: PS, PP, PE, ABS, PC, PMMA, and more (with standard test temperatures and weights)

Housing Material: Robust metal

Power Requirement: 220 VAC only (110:220 (5000 Watt) Transformer included for US customers)

Country of Origin: N/A

Shipping Wt: N/A

Package Dimensions: N/A

Applications

Ideal for quality control departments in plastics manufacturing, raw material suppliers, polymer research and development laboratories, and universities. This material flow index tester is essential for incoming goods inspection of plastic pellets, continuous production monitoring to ensure consistency of melt flow, and for validating material properties for specific processing methods like injection molding or extrusion. It's crucial for assessing the processability of new plastic formulations, ensuring the quality of recycled materials, and troubleshooting production issues where melt flow behavior is a key indicator of material integrity and performance.

Performance and Characteristics

The PCE Instruments PCE-MFI 400 Material Flow Index Tester delivers high-precision measurements of melt mass flow rate with exceptional reproducibility, critical for demanding quality assurance in the plastics industry. Its advanced temperature control maintains high temperature stability up to 400°C (752°F), accommodating a wide array of polymer types. The large 7" TFT touch display provides a clear, intuitive interface for managing test parameters and viewing results, streamlining workflow. The automatic cutting function significantly enhances consistency, reducing variability between tests. Pre-programmed standard plastics and test parameters minimize setup time, while the robust metal housing ensures durability for continuous use in industrial environments. The inclusion of a comprehensive set of weights allows for versatile testing under various load conditions, providing detailed insight into material rheology and processability.

Additional Information

The PCE-MFI 400 is a professional-grade plastometer designed to meet the rigorous demands of modern plastic testing. Its ability to intelligently control time and temperature during the heating process ensures highly accurate and reliable results, which are vital for maintaining product quality and optimizing manufacturing processes. The robust construction and user-friendly interface make it a valuable asset for both experienced technicians and new operators. For US customers, the inclusion of a 110:220 (5000 Watt) transformer ensures direct compatibility. This device represents a sound investment for any organization focused on precise polymer characterization and consistent product performance.

Kit Contents

• 1 x Material Flow Index Tester / Plastometer PCE-MFI400
• 1 x Power cable
• 1 x Tweezers
• 1 x Funnel
• 1 x Cleaning rod
• 1 x User manual
• 1 x Set of weights consisting of:
  • 1 x 325 g
  • 1 x 875 g
  • 1 x 960 g
  • 1 x 1200 g
  • 1 x 1640 g
  • 1 x 2500 g
  • 1 x 4100 g
  • 2 x 5000 g

Ensure plastic material consistency and optimize production processes. Shop the PCE Instruments PCE-MFI 400 Material Flow Index Tester today!
