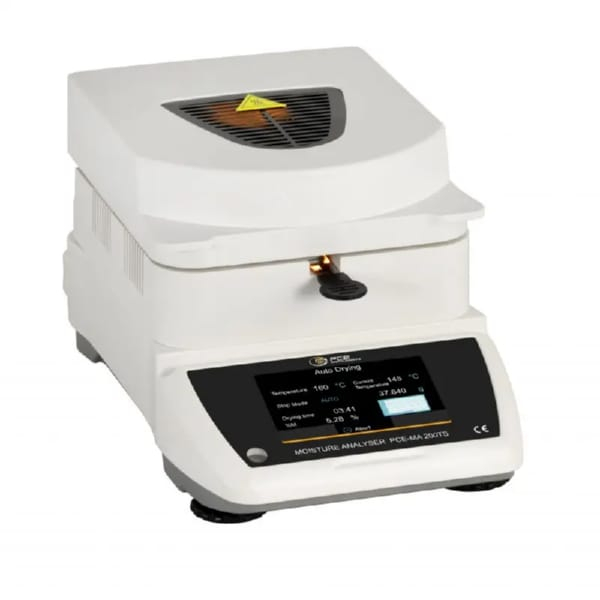

PCE Instruments PCE-MA 200TS Benchtop Scale with Touch Display
- Part #:PCE-MA 200TS
- Condition:Brand New
- List Price: $1,258.00
- $1,037.60 / EachYou Save: 17.52%
%20Copyright%202023%20Fonticons,%20Inc.%20--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048V96H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20272c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2048c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20240c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2016c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20208c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64V416c0%2053%2043%2096%2096%2096s96-43%2096-96H384c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V288%20256%20237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48H112zM544%20237.3V256H416V160h50.7L544%20237.3zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96zm272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201%20-96%200z'/%3e%3c/svg%3e)
Free Shipping
Benchtop Scale for precise determination of absolute moisture in various materials / Touch Display / easy operation / Data storage for 32 measurements
The benchtop scale has a measuring range of 0 ... 100% absolute humidity. The benchtop scale is operated via the 5" large touchscreen. To measure the moisture content with the benchtop scale, a sample is evenly distributed on the sample pan. The sample pan is then placed and sealed in the benchtop scale. After setting all parameters, the benchtop scale begins the measurement.
The benchtop scale determines the moisture content based on the measured weight difference, relative to the weight before and after drying the sample. The adjustable temperature range for the benchtop scale is between 40 ... 165 °C. Thus, a specific drying temperature for the sample can be selected with the benchtop scale. The generated drying temperature is produced by a built-in halogen lamp with a diameter of 90 mm.
The drying process of the sample makes the benchtop scale usable in various fields. Thus, the benchtop scale finds its application, for example, in laboratories to measure the moisture of different powders, in quality control to determine the moisture of granules, or on farms to determine the moisture content of oats, grains, or wheat.
A major advantage over devices using capacitive measuring methods is that the benchtop scale operates independently of characteristic curves and provides more accurate results.
The measured values can be transferred to a PC via the Serial RS232 interface of the benchtop scale for analysis. A suitable software is available optionally for the benchtop scale.
Features:
- Measurement range from 0 ... 100%
- Weighing range up to 200 g
- High resolution of 0.01 g
- Heating temperature from 40 ... 165 °C
- Memory for 32 measurements
- Suitable for various materials
Includes:
- 1 x Benchtop Scale PCE-MA 200TS
- 10 x Sample pan
- 1 x Sample pan holder
- 1 x Sample pan handle
- 1 x Power cable
- 1 x 100 g Calibration weight
- 1 x User manual
- You May Also Like
- Your Recently Viewed
- Reviews
| Absolute Moisture | |
| Measurement Range | 0% ... 100% |
| Resolution | 0.01% |
| Accuracy | ± 0.04% |
| Weighing Range | |
| Measurement Range | 0 g ... 200 g |
| Resolution | 0.01 g |
| Accuracy | ± 0.04 g |
| General Technical Data | |
| Measurement Functions | ATRO Moisture Content %R |
| Dry Content %D | |
| Moisture Content %M | |
| Initial Weight %W | |
| Display Type | LC Touch Display |
| Display Size | 5 inches |
| Display Refresh Rate | 10 times per second |
| Memory Capacity | 32 data sets |
| Data Interface | RS232 |
| Heating Element | Halogen Lamp |
| Heating Temperature | 40 ... 165 °C |
| Measurement Rate | 1 Hz |
| Abort Criteria | Weight Loss, Time |
| Menu Language | Chinese, Russian, Polish, Turkish, Portuguese, Dutch, Spanish, Italian, French, English, German |
| Protection Class | IP20 |
| Power Supply | Schuko Plug (110 V - 240 V AC | 50/60 Hz) |
| Weight | 3.7 kg |
| Device Weight with Package | 4.3 kg |
| Device Weight with Package and Outer Packaging | 5.34 kg |
| Dimensions (L x W x H) | 375 x 225 x 205 mm |
| Additional Dimensions | Sample Pan Ø 90 mm, Height 6 mm |
| Operating Conditions | 20 ... 25 °C, 40 ... 60 % r.F. |
| Storage Conditions | 0 ... 40 °C, 0 ... 80 % r.F. |
