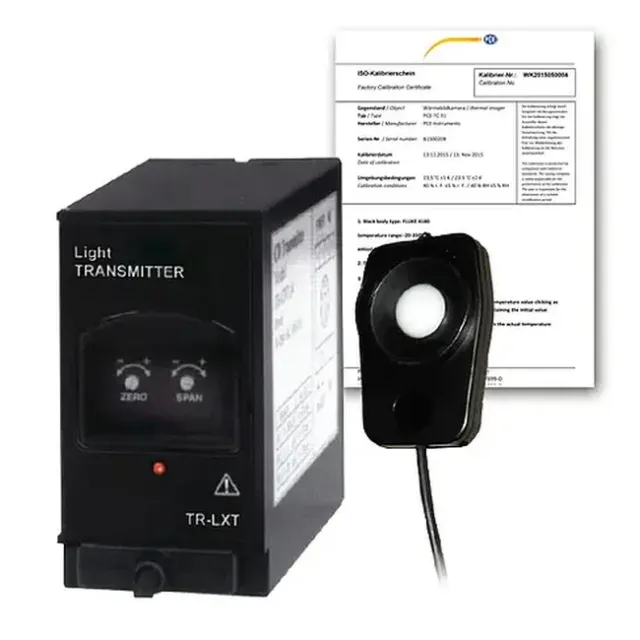

PCE Instruments PCE-LXT-TRM-ICA Fixed-Mount Light Meter incl. ISO Calibration Certificate
- Part #:PCE-LXT-TRM-ICA
- Condition:Brand New
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e){kind=small}
Free ShippingPCE Instruments PCE-LXT-TRM Fixed-Mount Light Meter
Fixed-mount light meter with 4-20-mA analog output and control relay / 0 ... 50,000 lux measuring range / Includes light sensor wall-mounting bracket This is a fixed-mount illuminometer consisting of a transmitter unit and an external light sensor probe with a 1.5 m / 4.9 ft long cable and wall-mounting bracket. This illuminometer allows for the continuous monitoring of light exposure in the workplace. Ideal for use in photography laboratories and production facilities manufacturing light-sensitive food and medical products, the illuminometer can be used to control an alarm (not included) or to save the signals from the transmitter to a data logger (not included) for documentation and review.
Key Features
- Fixed-Mount Design: For continuous light monitoring.
- Wide Measuring Range: 0 ... 50,000 lux (lx) in three ranges.
- Analog Output: 4-20 mA for data logging.
- Control Relay: For alarm or process control.
- External Sensor: With wall-mounting bracket.
- Versatile Applications: Ideal for light-sensitive environments.
Specifications
- Measuring Range: 0 ... 50,000 lux (lx) in three ranges
- Resolution: 0.1 lx / 1 lx (depending on range)
- Accuracy: ± 5% of reading
- Analog Output: 4 ... 20 mA
- Control Relay: Included
- Sensor Cable Length: 1.5 m (4.9 ft)
Kit Contents
- 1 x PCE-LXT-TRM Illuminometer transmitter unit
- 1 x External light sensor probe with 1.5 m / 4.9 in long cable
- 1 x Wall-mounting bracket
- 1 x User manual
- 1 x ISO Calibration Certificate
Ensure optimal light conditions with the PCE-LXT-TRM!
- Specification Sheet
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Illuminometer sensor | |
| Measurement Range | 0 ... 50,000 lux en three ranges |
| Resolution | 0.1 lx / 1 lx |
| Accuracy | ± 5% of reading ± 10 digits (<10,000 lux) ± 10% of reading ± 10 digits (>10,000 lux) |
| Repeatability | ± 5% |
| Sensor | Photodiode with color correction filter according to CIE |
| Power supply | By the transmitter of the light transducer |
| Cable length (from the sensor transmitter to the light transducer) | 1.5 m / 4.9 ft |
| Environmental conditions | Maximum 80% H. r. / 0 ... 50°C / 32 ... 122°F |
| Housing material | ABS plastic |
Transmitter of the Illuminometer | |
| Housing | ABS plastic |
| Power supply | 90 ... 260 ACV |
| Calibration | Adjustable with slave screw of the light transducer |
| Output | 4 ... 20-mA |
| Protection type | IP 54 |
| Environmental conditions for the light transducer | Maximum 85% R.H. / 0 ... 50°C / 32 ... 122°F |
