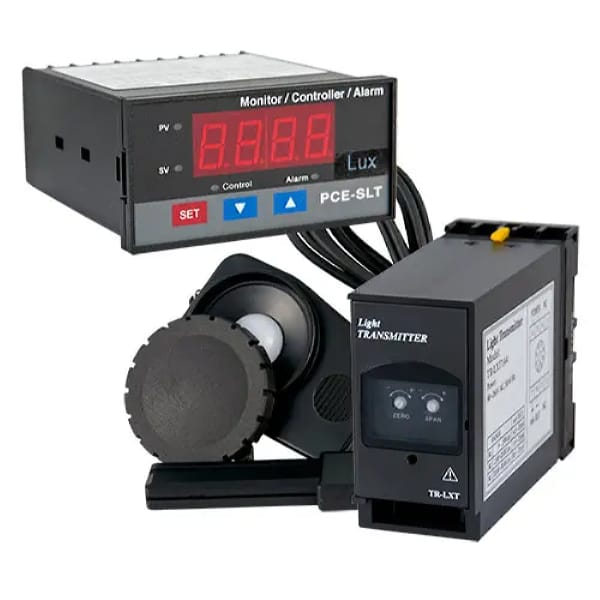

PCE Instruments PCE-LXT Illuminometer for Fixed Installation
- Part #:PCE-LXT
- Condition:Brand New
- List Price: $501.00
- $476.00 / EachYou Save: 4.99%
%20Copyright%202023%20Fonticons,%20Inc.%20--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048V96H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20272c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2048c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20240c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2016c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20208c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64V416c0%2053%2043%2096%2096%2096s96-43%2096-96H384c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V288%20256%20237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48H112zM544%20237.3V256H416V160h50.7L544%20237.3zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96zm272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201%20-96%200z'/%3e%3c/svg%3e)
Free Shipping
- Technical details
- Description
- You May Also Like
- Your Recently Viewed Items
- Reviews
Technical details
| Lux sensor | |
| Measuring range | 0 ... 50000 lux in three areas |
| Resolution | 0.1 lx / 1 lx |
| Accuracy | ±5 % of reading |
| Sensor | Photo Diode with color correction filter according to C.I.E. |
| Supply | via transmitter |
| Cable length (sensor to transmitter) | 1.5 m / 4.9 ft |
| Ambient conditions | max. 80 % relative humidity / 0 ... +50 °C (32 ... 122 °F) |
| Housing material | ABS plastic |
| Transmitter | |
| Housing | ABS plastic |
| Supply | 90 … 260 ACV |
| Calibration | adjustable via grub screws |
| Output | 4 ... 20 mA |
| Degree of protection | IP 54 |
| Ambient conditions | max. 85 % relative humidity / 0 ... +50 °C (32 ... 122 °F) |
| Digital display | |
| Input signal from the transmitter | 4 - 20 mA |
| Display | -1999 ... 9999 (1 ... 3 decimal places, depending on the measured value / selectable by the user) |
| Programming data (decimal point, limit value...) | are stored in the device |
| Control output | 3-point (Com, NO, NC) |
| Alarm output | relay output: 5 A / 240 VAC |
| Supply | 90 ... 260 ACV / 50 ... 60 Hz |
| Dimensions / control panel cut-out according to DIN | 92 (+0.8) mm x 45 (+0.5) mm |
| Weight | ca. 250 g / 8.8 oz |
| Ambient conditions | max. 85 % relative humidity / 0 ... +50 °C (32 ... 122 °F) |
| Degree of protection | IP 65 |
