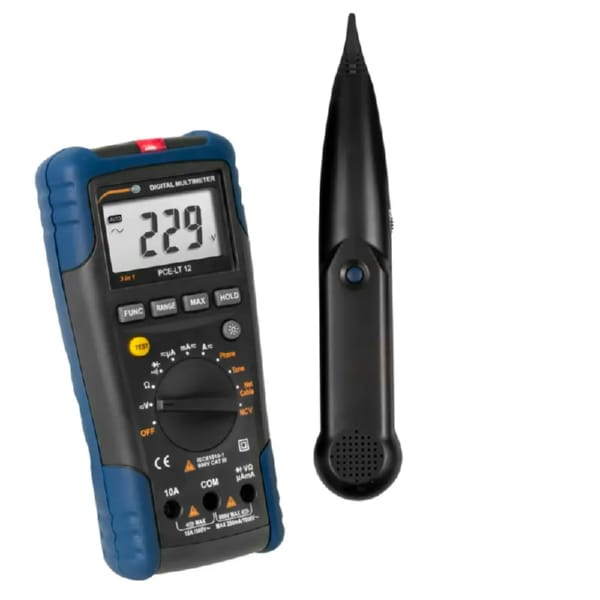

PCE Instruments PCE-LT 12 Digital Voltmeter
- Part #:PCE-LT 12
- Condition:Brand New
- List Price: $130.00
- $128.70 / EachYou Save: 1.0%
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e)
Free Shipping
- List Price: $130.00
- $128.70 / EachYou Save: 1.0%
- Free Shipping
Voltage tester with many measuring functions / For electricians and IT employees / Analysis of network connection cables / Telephone connection test / Voltage and current measurement / NCV / backlight
The voltage tester is a versatile measuring instrument. In addition to the standard voltage and current measurements, the voltage tester also has a network analysis. With this network analysis, the voltage tester can be used to check, for example, LAN connections for their correct wiring and function. Telephone connections can also be checked for their function with this voltage tester. If cables can not be found again, the voltage tester also helps here.
Thanks to the cable finder function of the voltage tester, the operator can find the required cable in no time at all. To do this, the voltage tester must be connected to the connection of a cable. The voltage tester now acts as a transmitter. With the supplied receiver you can now easily find the desired cable in, for example, a wiring harness or behind walls with the voltage tester.
To check whether a voltage is applied to a cable, the voltage tester has an NCV (Not Connected Voltage) function. With this function, the voltage tester must only be held to the line. Both acoustically and visually, the voltage tester signals the operator that a voltage is applied to the line. Thanks to this contactless measuring function, the voltage tester reduces accidents at work due to electric shock.
Features:
- Extensive network connection testing
- Telephone connection examination
- Acoustic cable finder function
- Robust housing for mobile use
- Voltage, current, resistance measurement
- Contactless voltage detection
Includes:
- 1 x Voltmeter PCE-LT 12
- 1 x Receiver
- 1 x Pair of test leads
- 1 x Connection adapter strand
- 2 x 9V block batteries
- 1 x User manual
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Measuring function | |||
| AC | |||
| Measuring range | Resolution | Accuracy | |
| 200 mV | 0.1 mV | ± (0.8% + 5 digits) | |
| 2V | 1 mV | ± (0.8% + 5 digits) | |
| 20V | 0.01V | ± (0.8% + 5 digits) | |
| 200V | 0.1V | ± (0.8% + 5 digits) | |
| 750V | 1V | ± (0.8% + 5 digits) | |
| Maximum input voltage: 750V AC | |||
| Frequency range: 40 ... 400 Hz | |||
| Conversion RMS | |||
| DC | |||
| Measuring range | Resolution | Accuracy | |
| 200 mV | 0.1 mV | ± (0.5% + 5 digits) | |
| 2V | 1 mV | ± (0.5% + 5 digits) | |
| 20V | 0.01V | ± (0.5% + 5 digits) | |
| 200V | 0.1V | ± (0.5% + 5 digits) | |
| 1000V | 1V | ± (0.8% + 5 digits) | |
| Maximum input voltage: 1000V DC | |||
| Alternating current | |||
| Measuring range | Resolution | Accuracy | |
| 200 μA | 0.1 μA | ± (1.5% + 5 digits) | |
| 2000 μA | 1 μA | ± (1.5% + 5 digits) | |
| 20-mA | 0.01-mA | ± (1.5% + 5 digits) | |
| 200-mA | 0.1-mA | ± (1.5% + 5 digits) | |
| 2 A | 0.001 A | ± (3.0% + 5 digits) | |
| 20 A | 0.01A | ± (3.0% + 5 digits) | |
| Overload protection at μA, mA: 200-mA / 1000V fuse | |||
| Overload protection at A: 10 A / 500V fuse | |||
| maximum input current μA: 2000 μA | |||
| maximum input current mA: 200-mA | |||
| maximum input current A: 10 A. | |||
| Frequency range: 40 ... 400 Hz | |||
| Conversion RMS | |||
| Measuring function | |||
| Direct current | |||
| Measuring range | Resolution | Accuracy | |
| 200 μA | 0.1 μA | ± (1.2% + 5 digits) | |
| 2000 μA | 1 μA | ± (1.2% + 5 digits) | |
| 20-mA | 0.01-mA | ± (1.2% + 5 digits) | |
| 200-mA | 0.1-mA | ± (1.2% + 5 digits) | |
| 2 A | 0.001 A | ± (2.0% + 5 digits) | |
| 20 A | 0.01A | ± (2.0% + 5 digits) | |
| Overload protection at μA, mA: 200-mA / 1000V fuse | |||
| Overload protection at A: 10 A / 500V fuse | |||
| maximum input current μA: 2000 μA | |||
| maximum input current mA: 200-mA | |||
| maximum input current A: 10 A. | |||
| Measuring function | |||
| Resistance | |||
| Measuring range | Resolution | Accuracy | |
| 200 Ω | 0.1 Ω | ± (1.0% + 5 digits) | |
| 2 kΩ | 0.001 kΩ | ± (1.0% + 5 digits) | |
| 20 kΩ | 0.01 kΩ | ± (1.0% + 5 digits) | |
| 200 kΩ | 0.1 kΩ | ± (1.0% + 5 digits) | |
| 2 MΩ | 0.001 MΩ | ± (1.0% + 5 digits) | |
| 20 MΩ | 0.01 MΩ | ± (1.0% + 5 digits) | |
| Diode measurement | |||
| Measuring range | Resolution | Accuracy | |
| Indicates the forward voltage | 1 mV | - | |
| Continuity test | |||
| Measuring range | Resolution | Accuracy | |
| Beep at <70 Ω | 0.1 Ω | - | |
| Other specifications | |||
| Range selection | Automatically and manually | ||
| Measurement with receiver | Detecting cable bridges, detecting cable runs | ||
| Measurement with network function | Detection of open and closed circuits, | ||
| wrong connection, "split pair", "reverse" connection, | |||
| Network integration test, screening test | |||
| Further measurement function | "NCV" detection, telephone connection testing | ||
| Display | LCD, 1999 digits | ||
| Overload indicator | "OIL" | ||
| Automatic shutdown | After 15 minutes of inactivity | ||
| Fuses | F10A / 500V, F200mA / 1000A | ||
| Battery indicator | Display when battery is discharged | ||
| Power supply | 9V block battery | ||
| Operating conditions | 0 ... 40°C / 32 ... 104°F | ||
| -10 ... 50°C / 14 ... 122°F | |||
| Dimensions | 195 x 92 x 55 mm / 7.7 x 3.6 x 2.2 in | ||
| Weight | Approx. 400 g / < 1 lb (with batteries) | ||
