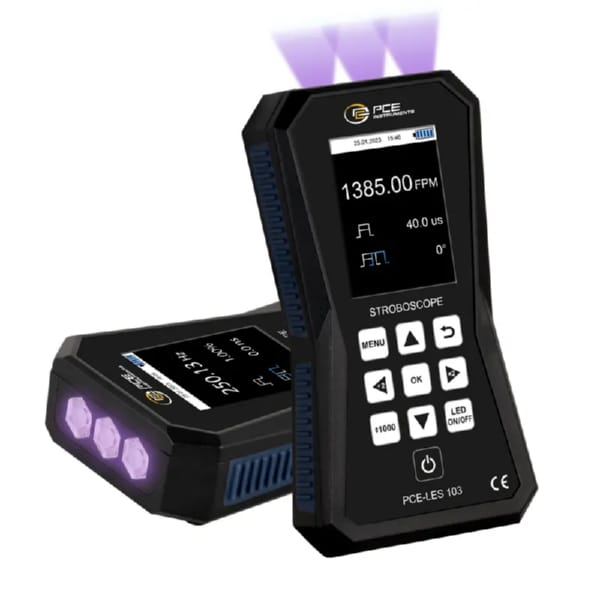

PCE Instruments PCE-LES 103UV-385 Rotation Meter with 3 UVA High-Power LEDs (385 nm)
- Part #:PCE-LES 103UV-385
- Condition:Brand New
- List Price: $726.00
- $644.80 / EachYou Save: 11.18%
%20Copyright%202023%20Fonticons,%20Inc.%20--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048V96H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20272c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2048c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20240c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2016c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20208c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64V416c0%2053%2043%2096%2096%2096s96-43%2096-96H384c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V288%20256%20237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48H112zM544%20237.3V256H416V160h50.7L544%20237.3zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96zm272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201%20-96%200z'/%3e%3c/svg%3e)
Free Shipping
- Technical details
- Manuals/Tutorials
- Description
- You May Also Like
- Your Recently Viewed Items
- Reviews
Technical details
| Frequency | |
| Measuring range | 60 FPM ... 9999.99 FPM |
| Resolution | 0.01 FPM |
| Accuracy | +/- 0.003 % of the setting or ± 1 LSD of the setting or +/-1 LSD |
| Frequency | |
| Measuring range | 10000 FPM ... 300000 FPM |
| Resolution | 0.1 FPM |
| Accuracy | +/- 0.003 % of the setting or ± 1 LSD of the setting or +/-1 LSD |
| Frequency | |
| Measuring range | 1 Hz ... 5000 Hz |
| Resolution | 0.01 Hz |
| Accuracy | +/- 0.003 % of the setting or ± 1 LSD of the setting or +/-1 LSD |
| General technical data | |
| Display type | TFT color display |
| Display size | 2.8 inch |
| Operating time | 4.5 h |
| Operating time additional information | at flash frequency 100 Hz, 1 %, display brightness 70 % |
| Automatic switch-off adjustable | 2 ... 10 min. |
| Automatic switch-off can be deactivated | Yes |
| Light intensity | 635 μW/cm2 at 20 cm at 1000 Hz, 1 % 317 μW/cm2 at 30 cm at 1000 Hz, 1 % 115 μW/cm2 at 50 cm at 1000 Hz, 1 % |
| Light color | UV light (380 ... 390 nm) |
| Phase shift | -360 ... 360 ° |
| Pulse width | 0.01 ... 1 % of pulse duration Resolution: 0.01 % 0.01 º ... 3.60 º from 360 º Resolution: 0.01 º |
| Menu language | German, English, Spanish, French, Italian, Dutch, Turkish, Polish, Russian, Chinese |
| Protection class (device) | IP52 |
| Power supply | 5V DC, 2A |
| Weight | 284 g |
| Dimensions (L x W x H) | 165 x 90 x 35 mm |
| Operating conditions | -20 ... 60 °C , 35 ... 85 % r.H |
| Storage conditions | -20 ... 60 °C , 35 ... 85 % r.H |
