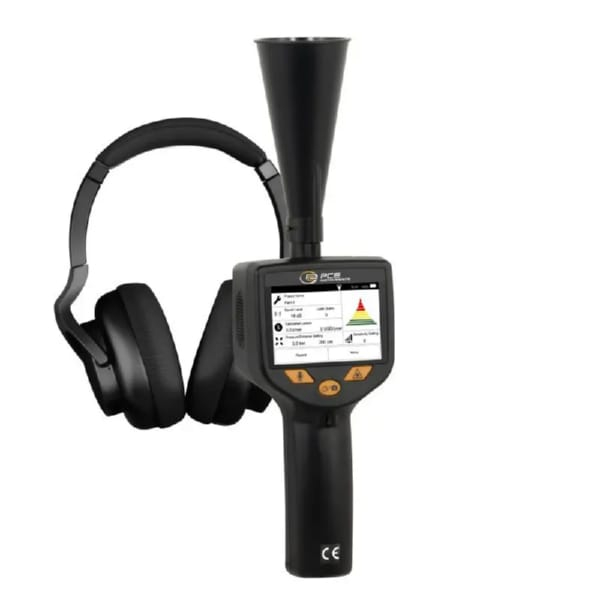

PCE Instruments PCE-LDC 20 Leak Detector for Gas Pressure Systems

Leak Detector for gas pressure systems / Leakage assessment / Various attachments / Battery-operated handheld device / Touch color display / Wireless headphones / Evaluation software / Calibration certificate

The leak detector for gas pressure systems is an effective solution for detecting and evaluating leaks in compressed air and other non-explosive gas pressure systems. The measured leaks can be recorded and analysed within the software, the escape of compressed air causes high electricity costs as compressors run more than they should. Detecting leaks at an early stage can save up to 30% in energy costs.

Small leaks in pressurised systems generate ultrasonic sounds that are inaudible to humans. By using an ultrasonic microphone, the locating device can measure frequencies that exceed the perception limit of human hearing. The leak detector's high-quality measurement electronics convert the recorded ultrasonic sounds into sounds that the user can hear, which the leak detector transmits via Bluetooth or the 3.5 mm jack plug.

With this leak detector, the user can document even the smallest leaks, the leak detector can photograph the leak and record a voice memo. The device also provides information on how much compressed air or gas is escaping through the leak. The leak detector therefore enables precise and efficient leak detection and assessment.

Features:

• Leak detection
• Leakage assessment
• Various attachments
• Battery-operated handheld device
• Color touch display
• Wireless headphones

Includes:

• 1x PCE-LDC 20 leak detector
• 1x calibration certificate
• 1x software
• 1x USB-C cable
• 1x wireless headphones
• 1x micro USB cable
• 1x 5 V power supply unit with adapters
• 1x operating instructions
