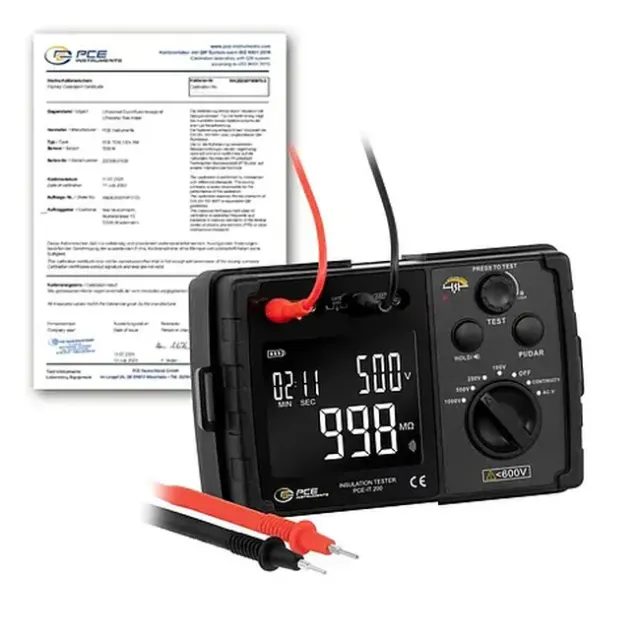

PCE Instruments PCE-IT 200-ICA Insulation Tester with Timer incl. ISO Calibration Certificate

Insulation Tester with additional functions / Automatic detection of AC and DC / Timer / LCD color display / Buzzer and light alarm / 10 MΩ internal resistance test.

Features:

• Our compact insulation tester is perfect for measuring the insulation resistance of electrical devices and household appliances.
• With its ability to measure insulation resistance, AC voltage, low resistance, PI (polarization index) and DAR (dielectric absorption), it is a versatile and reliable tool for many application scenarios.
• With test voltages of 100 V, 250 V, 500 V and 1000 V, insulation resistances of up to 5.5 GΩ can be measured, enabling accurate analysis and evaluation of insulation quality.
• The insulation tester not only offers the possibility to measure direct voltage (DC) in the measuring range from 30 V to 600 V and alternating voltage (AC), but also records the resistance in the range from 0 Ω to 999 Ω with high accuracy to ensure a good diagnosis of electrical systems.
• 1 x ISO Calibration Certificate
