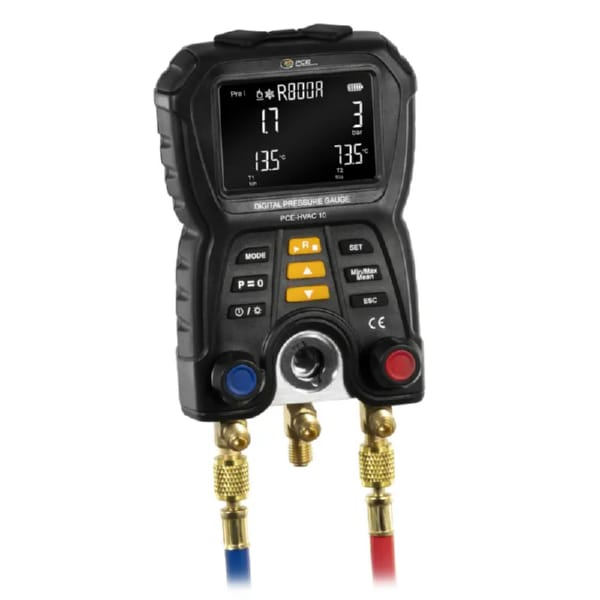

PCE Instruments PCE-HVAC 10 Manifold in Robust Metal Casing

Manifold in a robust metal casing / Measures pressure from -1 ... +60 bar and temperature from -10 ... +200 °C / 2-way valve block with 3 connectors 7/16" - UNF / Various display units / Hanging fixture

Introducing the Manifold PCE-HVAC 10, the ultimate solution for all your HVAC installation, maintenance, and optimization needs. Our product offers a comprehensive range of features including assistance with heat pump, air conditioning, refrigerant pressure testing, temperature testing, and installation of various refrigerants such as R410a, R32, R22, and R1234YF…

With the manifold, you can trust that your cooling systems are in safe hands. The meter is designed to support installers in every step of the process. From initial setup to fine-tuning, this manifold provides expert guidance for adjusting and optimizing system parameters. We understand the importance of a well-functioning refrigeration circuit, which is why product ensures a seamless installation experience. Not only does the manifold offer installation assistance, but it also provides maintenance services to keep your HVAC systems running smoothly. Regular maintenance is essential for prolonging the lifespan of your equipment and maximizing its efficiency.

With the help of the manifolds, you can easily perform routine checks and make necessary adjustments to ensure optimal performance. The instrument is not just a tool, but a reliable partner for all your HVAC needs and especially in installation and maintenance of modern heat pumps. Experience the convenience and efficiency of manifold and revolutionize your HVAC installation and maintenance processes today.

The manifold is a robust measuring instrument designed for daily use in refrigeration systems and heat pumps to determine pressure and temperature. Measurement with the manifold is carried out using supplied refrigerant hoses and 2 NTC clamp-on temperature sensors. All measurement parameters can be simultaneously captured by simply attaching or screwing them on. The metal 2-way valve block with 3 connectors and 3 hose holders allows for quick and easy operation of the manifold. The 83 preloaded refrigerants can be quickly selected and are visible on the measurement screen. During measurements, the hanging fixture ensures secure attachment. The manifold is powered by 4 x 1.5V AA batteries.

The manifold is ideal for commissioning, servicing, and maintenance tasks. Thanks to additional device features such as the automatic heat pump mode, which eliminates the need to swap refrigerant hoses for measurements, and the temperature-compensated density testing function, working on refrigeration systems and heat pumps becomes very straightforward.

Features:

• Measurement Range: -1 ... +60 bar
• Resolution: 0.01 bar
• Accuracy: ±0.5% FS (Full Scale).
• 83 refrigerants stored in the device
• 2-way valve block with 3 connectors 7/16" - UNF
• Includes 2 NTC clamp-on temperature sensors
• Temperature measurement from -10 ... +200 °C

Includes:

• 1 x Manifold PCE-HVAC 10
• 3 x Refrigerant Hoses (Red, Blue, Yellow)
• 2 x Clamp-On NTC Temperature Sensors
• 4 x 1.5V AA Batteries
• 1 x Carrying Case
• 1 x User Manual
