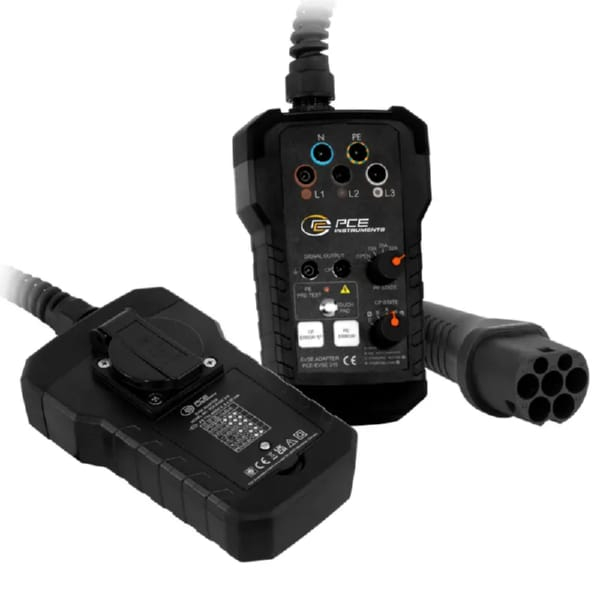

PCE Instruments PCE-EVSE 310 EV Test Instrument
- Part #:PCE-EVSE 310
- Condition:Brand New
- List Price: $439.00
- $406.20 / KitYou Save: 7.47%
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e)
Free Shipping
- List Price: $439.00
- $406.20 / KitYou Save: 7.47%
- Free Shipping
EV Test Instrument / vehicle simulation / cable simulation / CP output and mains socket for measuring purposes / incl. transport bag
The EV test instrument is for VDE 0100 testers to test charging stations (charging mode 3) for electric cars. This adapter can be used with the PCE-ITE 55B installation tester or with most other standard VDE 0100 testers. Thanks to the LEDs for voltage detection on the 3 phases, it can be quickly determined if there is an installation error.
The PP State rotary switch can be used to simulate the current carrying capacity of the charging cable. The current carrying capacity is simulated with various resistors in the EV test instrument, which are connected between PP and PE conductors. Various vehicle states can be simulated using the CP State rotary switch. The vehicle states are simulated with different resistors connected between the CP and PE conductors.
An external load can be connected to the socket. This output is only intended for measuring purposes and offers the option of checking the function of the electricity meter. The EV test instrument can also be used to simulate a PE fault (earth fault). The EV test instrument is supplied in a device bag.
Features:
- PE pre-test
- Status of the Proximity Pilot PP and the Control Pilot CP
- Simulation of CP fault "E" and PE fault
- Mains socket for measuring purposes
- Safety measuring sockets
- incl. type 2 plug
Includes:
- 1 x EV Test Instrument PCE-EVSE 310
- 1 x operating instructions
- 1 x transport bag
- 1 x type 2 plug
- Manuals/Tutorials
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Test Functions | |
| PE pre-test | yes, with capacitive electrode |
| PP Simulation | open, 13 A, 20 A, 32 A, 63 A |
| CP Status | A, B, C, D |
| CP error "E" | E |
| PE fault / earth fault | Yes |
| General technical data | |
| Connections | L1, L2, L3, N, PE |
| Connections Additional information | max. 230V (1-phase) / 430V (3-phase) ; 50 / 60Hz 10A / 250 V Type 2 plug fixed to the cable |
| Standard(s) | IEC62196-2 Type 2 connector |
| Cable length | 25 cm |
| Safety standard | CAT II / 300V |
| Power socket | max. 250 V; 50/60 Hz; 10 A |
| Outputs | 2 x 4mm sockets (signal output terminals) |
| Fuse(s) | Power socket T10A/250V |
| Protection class (device) | IP40 |
| Weight | 643 g |
| Dimensions (L x W x H) | 600 x 105 x 73 mm |
| Operating conditions | 0 ... 40 °C , 80 % r.H. |
| Storage conditions | -10 ... 50 °C , 80 % r.F |
| Languages of instructions | German, English |
