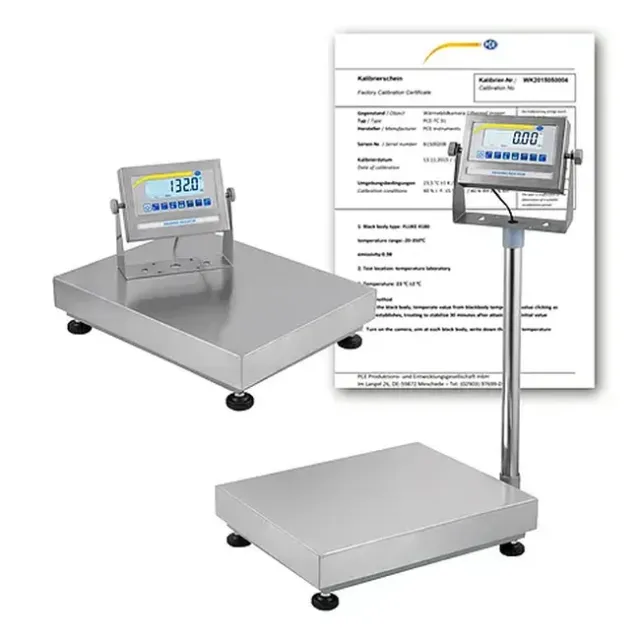

PCE Instruments PCE-EP 30P2-ICA Robust Platform Scale incl. ISO Calibration Certificate
- Part #:PCE-EP 30P2-ICA
- Condition:Brand New







Two range - LAB Scale / higher resolution / counting function / sum function/ detachable tripod / battery / container weighing function/ bidirectional RS232 interface
The robust laboratory balance is a real all-rounder. The stand of the laboratory balance can be easily separated along with the tripod mount from the platform and possibly sunk into the workbench. The cable between the platform and the display has a plug attached and is about 1.6 m long. The display of thelaboratory balance is in a stainless steel housing with protection class IP54. The display can be placed on the workbench, on the wall, or on the stand of the platform scales. P2 - weighing surface: 500 x 600 mm
In addition to the standard functions such as counting, summing, gross / net weighing, limit weighing function and the PEAK Hold function, thelaboratory balance has two special functions, i.e.the filter function for dynamic weighings and the container weighing function. The bidirectional RS232 interface allows convenient communication with a PC or printer. With the Per Query Command, the weight of the laboratory balance can be queried from the PC. A similar laboratory balance, but in calibrated form, we can provide with the PCE-SD series.
Features:
- Single Point platform scale (1 load cell)
- Two-range scale 15/30 kg
- Freely adjustable measuring unit kg/...
- Bidirectional RS232 interface
- Battery or mains operation
- Display IP54 protection
- Tripod incl. removable tripod mount
- Off timer (deactivated)
- Hold function (freezing the weight display)
- PEAK / MAX weighing function
- Sum function
- Piece counting function
- Animal weighing function
- Weighing function limit MIN / OK / MAX
- Container weighing function
- Filter function
Includes:
- 1x LAB Scale PCE-EP 30P2
- 1x Display, Tripod incl. Bracket, Power Adapter, Manual
- 1 x ISO Calibration Certificate
- Specification Sheet
- Manuals/Tutorials
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Measuring range | Max. 1 = 15 kg / Max. 2 = 30 kg |
| Resolution | up to 15 kg = 2 g from 15 kg ... 30 kg = 5 g |
| Measurement uncertainty | ± 3 d (three times the resolution) |
| Platform size [P2] | 500 x 600 mm |
| Tare function | Over the entire weighing range |
| Interface | RS-232 Bidirectional / D-SUB 9 Female Optional: - Analog output 4-20 mA 1/1000 + - 4 Potential-free outputs LO / OK / HI / Stable set as a pulse signal or continuous signal. |
| Display | LCD with 25 mm digit height |
| Units | kg / lb and freely adjustable weighing unit such as kg/m |
| Cable length to display | ca. 160 cm / plug attached |
| Power supply | 6V / 4.5Ah battery or 9 V / 1.2 A power adapter (incl.) Power consumption 70 mA |
| Protection class | IP54 |
| Working temperature | 0 ... + 40 °C / 10 ... 80 % r.H. |
| Weight | ca. 25.5 kg |
