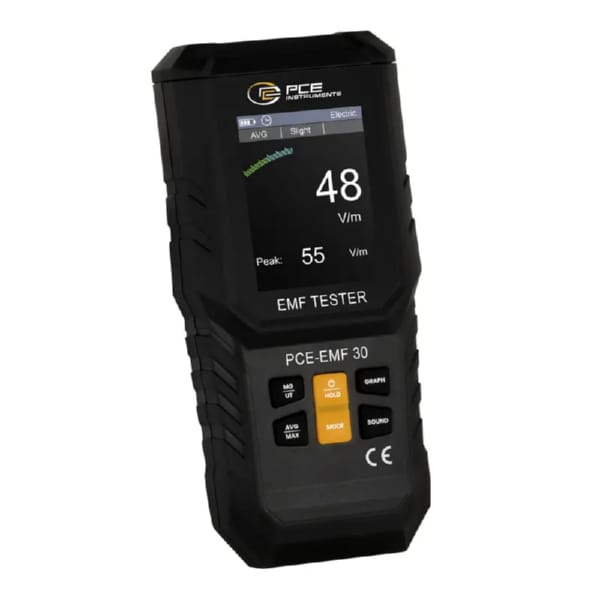

PCE Instruments PCE-EMF 30 Magnetometer with LCD Display
- Part #:PCE-EMF 30
- Condition:Brand New
- List Price: $120.00
- $115.57 / EachYou Save: 3.69%
%20Copyright%202023%20Fonticons,%20Inc.%20--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048V96H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20272c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2048c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20240c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2016c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20208c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64V416c0%2053%2043%2096%2096%2096s96-43%2096-96H384c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V288%20256%20237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48H112zM544%20237.3V256H416V160h50.7L544%20237.3zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96zm272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201%20-96%200z'/%3e%3c/svg%3e)
Free Shipping
Measuring range up to 1800 V/m / 3-axis measurement / for mobile and fast use
With this magnetometer it is possible to measure magnetic fields up to 999.9 mG directly. At the same time, the magnetometer displays the strength of the magnetic field numerically using an X, Y and Z axis. The magnetometer is a multifunctional 3-in-1 meter for electric fields (EF), magnetic fields (MF) and radio frequency fields (RF). The default mode is EF mode when the magnetometer is turned on. The measured value can be affected by the influence of the electric field of the environment.
The magnetometer is equipped with a built-in electromagnetic radiation sensor that displays the radiation value on the LCD screen. You can take appropriate precaution or take effective measures against the electromagnetic radiation according to the test result.
Features:
- LCD screen
- Average/Peak mode
- Auto-Off
- EF/MF/RF test display
- Graphic display
Includes:
- 1 x Magnetometer PCE-EMF 30
- 1 x instruction manual
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Radiation mW/m² | |
| Measuring range | 0,01 ... 1.800 mW/m² |
| Resolution | 0,01 mW/m² |
| Radiation V/m | |
| Measuring range | 1 ... 1.999 V/m |
| Resolution | 1 V/m |
| Radiation mG | |
| Measuring range | 0,1 ... 999,9 mG |
| Resolution | 0,1 mG |
| Radiation µT | |
| Measuring range | 0,01 ... 99,99 µT |
| Resolution | 0,01 µT |
| General technical data | |
| Automatic switch off | 15 min |
| Battery capacity | 1.000 mAh |
| Battery voltage | 3,7 V |
| Battery type | Lithium-ion battery |
| Menu language | English |
| Protection class | IP20 |
| Weight | 150 g |
| Weight with scope of delivery | 169 g |
| Weight of device with scope of delivery and outer packaging | 260 g |
| Ambient dimensions | 147 x 70 x 31 mm (L x W x H) |
| Ambient dimensions incl. outer packaging | 175 x 145 x 40 mm (L x W x H) |
| Operating conditions | 0 - 50 °C |
| Operating conditions | < 80% |
| Storage conditions | 0 - 50 °C |
| Storage conditions | < 80% |
