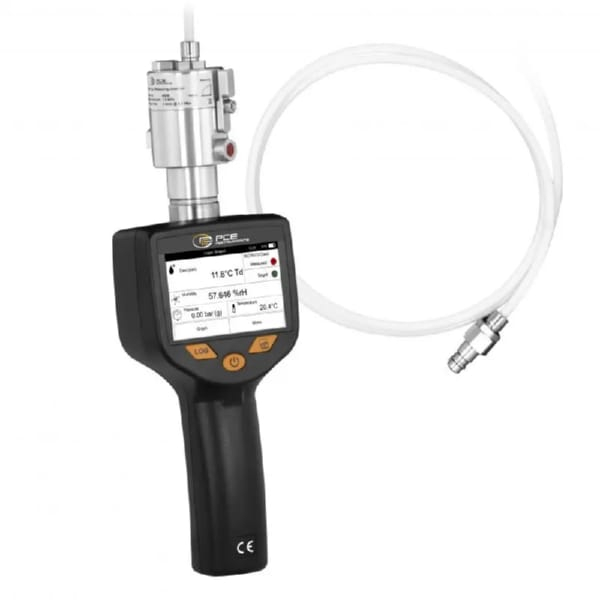

PCE Instruments PCE-DPM 10 Psychrometer for Pressure Systems

Psychrometer for pressure systems / precise measurement / alarm limits / battery-operated handheld device / touch display

The precise psychrometer from PCE Instruments enables the reliable measurement of humidity and temperature in a measuring range of up to 15 bar. The psychrometer is versatile and provides accurate results for air and various gases.

The psychrometer offers a robust and handy design, the housing of the psychrometer was specially developed for industrial applications.

The operation of the psychrometer is particularly easy thanks to the touch display, which further emphasises the user-friendliness of the psychrometer. The psychrometer offers the option of storing your own calibration data, e.g. to quickly adjust the pressure to the current atmosphere.

In addition, the psychrometer is able to display the humidity in many different units of measurement, saving the user the hassle of converting the values. The quick coupling included in the scope of delivery enables the psychrometer to be used quickly and also saves time during measurement.

In addition, the psychrometer has a psychrometer function for up to 100 million measured values. These can be conveniently read out and processed via the USB C interface and the USB-C stick supplied.

When the optional Smart Features are purchased, the psychrometer can not only measure the current dew point, but also create a forecast for the final value of the dew point. In addition, it enables the psychrometer to document the measurement location using the integrated camera.

Features:

• Dew point measuring range from -100 ... +50 °C
• Pressure range up to 15 bar differential pressure
• Data logger for up to 100 million measured values
• Alarm limits adjustable.
• Touch LC display

Includes:

• 1x Psychrometer PCE-DPM 10
• 1x PTFE hose with quick coupling
• 1x USB power supply with adapters
• 1x USB-C cable
• 1x USB-C stick
• 1x transport case
• 1x software
• 1x operating instructions
