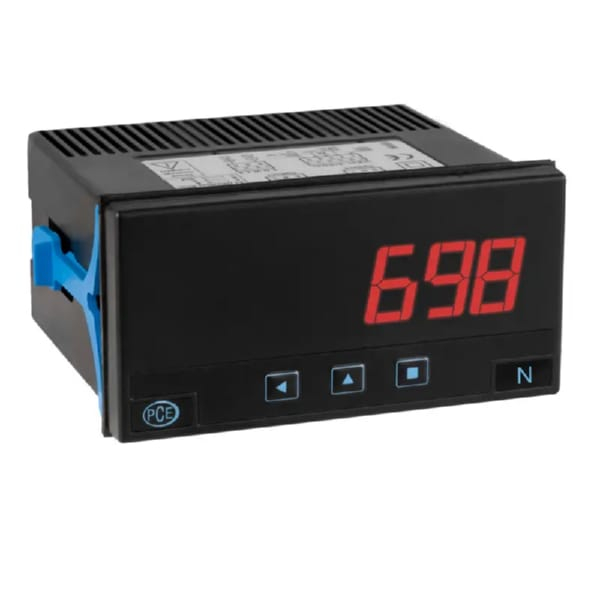

PCE Instruments PCE-DPD-U Multi-Signal Digital Panel Indicator to Work
- Part #:PCE-DPD-U
- Condition:Brand New
- List Price: $237.00
- $210.40 / EachYou Save: 11.22%
%20Copyright%202023%20Fonticons,%20Inc.%20--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048V96H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20272c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2048c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20240c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2016c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20208c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64V416c0%2053%2043%2096%2096%2096s96-43%2096-96H384c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V288%20256%20237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48H112zM544%20237.3V256H416V160h50.7L544%20237.3zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96zm272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201%20-96%200z'/%3e%3c/svg%3e)
Free Shipping
Multi-signal digital panel indicator to work as voltmeter, ammeter, process signals, temperature, resistors, potentiometers and frequencies / Modular design architecture / 4-digit LED display / Universal power supply 110 or 230V AC or 24V DC
The multi-signal digital panel indicator is configurable to work as voltmeter, ammeter, process signals (mA) with and without excitation voltage, temperature, resistors, potentiometers and frequencies. The digital panel indicator has a size of 96 x 48 mm and displays the values on a 4-digit LED display. The measurement range is 9999 to -1999 with selectable decimal point. The indicator has quick access to alarms setpoint, external contact for special functions, Eco mode of reduced consumption, 5 brightness levels.
The supply voltage of the multi-signal digital panel indicator from 18 to 265V AC / DC. Optionally the indicator can have relay output, analog output and Modbus RTU communications.
Features:
- IP 65 on the front
- Different units possible
- Digital display for industrial processes
- Optional outputs
- 4-digit digital display
- Many sensors can be connected
Includes:
- 1 x Panel Indicator PCE-DPD-U
- 2 x Clamps
- 1 x Instruction manual
- Specification Sheet
- Manuals/Tutorials
- Main Products
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Input | 2-, 3- wire PT100, PT500, PT1000, Ni100, Ni200, Ni1000 |
| Thermoelement Type K, J, E, N, L, R, S, B, T, C | |
| Potentiometer: 500 ... 20 kOhm | |
| Resistance: 5k ... 50 kOhm | |
| Process signal: 4 ... 20 mA, 0 ... 10 V | |
| Frequency: 0 ... 100 Hz | |
| DC-Voltage: 60 mV, 200 mV 2 V, 20 V, 200 V, 600V | |
| DC-Current: 20 mA, 5 A | |
| AC-Voltage: 2 V, 20 V, 200 V, 600 V | |
| AC-Current: 20 mA, 5 A | |
| Measuring rate | 3 / second |
| Resolution | 16 Bit |
| Accuracy | 0.1 % |
| Internal resistance | Voltage measurement: 1 MΩ |
| Current measurement: 12 Ω | |
| Scaling | 21 points |
| Display | 4-digit, 7-segment LED display, tri-color |
| Display range | -1999 ... 9999 |
| Outputs | cards |
| Ambient temperature | Operational: 0 ... 55 °C / 32 ... 131 °F |
| Storage: -20 ... +70 °C / -4 ... 158 °F | |
| Dimensions digital display | 96 x 48 x 91 mm / 3.7 x 1.8 x 3.5" |
| Panel cutout | 92 x 45 mm / 3.6 x 1.7" (according to DIN) |
| Supply voltage | 18 ... 265 V AC/DC |
| Protection | Front: IP 65 |
| Weight | < 200 g / 7 oz |
| Mounting | Mounting clips with clamping screws, |
| Electrical connection via terminal strip | |
| Housing digital display | Robust plastic housing |
