Name: PCE Instruments PCE-DPD-F2 Mounting Display for Strain Gauges
Brand: PCE Instruments
SKU: ID44638
Price: 384.42000 USD
Availability: InStock

PCE Instruments PCE-DPD-F2 Mounting Display for Strain Gauges

List Price: $450.00
$384.42 / Each
You Save: 14.57%
Free Shipping

Typically In Stock

Check Availability

Quantity:

Description

Mounting display for strain gauges with mV & V / Modular output cards / 6 digit LED display / 230V or 24V power supply

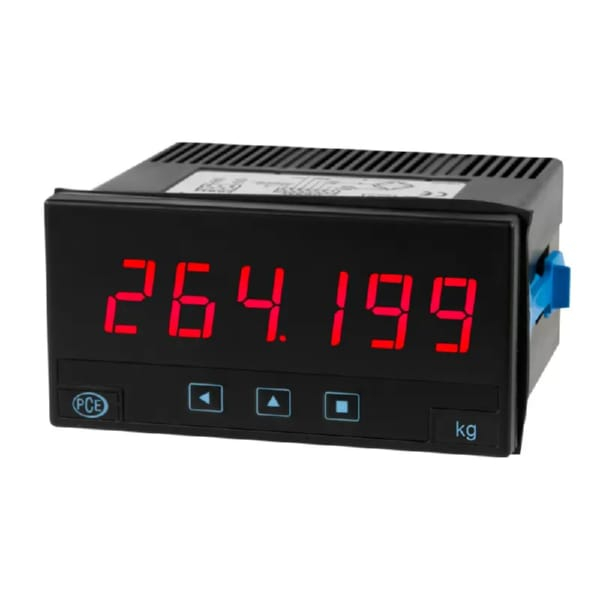

The built-in display is used to indicate the force and weight detected by force sensors and load cells with strain gauges. The output signal of the measuring cell is irrelevant because the panel meter makes it possible to display the correct weight in mV / V based on the set sensitivity. The panel meter shows the measured values on a 6-digit LED display. The measuring range could theoretically be between -199999 ... 999999. Depending on the desired and adjusted scaling, a corresponding unit sticker can be applied to the installation indicator.

The panel meter can directly supply voltage to the connected measuring cell with strain gauges. The supply voltage can be selected between 5V and 10V. Depending on the voltage selected, up to 8 or 4 force or load cells can be connected to the panel meter. A special feature of this digital display for mV / V is the modular output concept. Different, changeable output cards are available depending on the application.

Features:

Digital display for strain gauges
mV / V input
3 different measuring speeds
Modular output cards available
1/8 DIN panel mounting dimensions
LED display

Includes:

1 x Panel Meter PCE-DPD-F2
1 x Power supply terminal
1 x Strain gauge terminal
1 x Unit label
1 x User manual

See more product information Report an issue with this product

⚠️ Attention CA Residents: Prop 65 Warning

📈Tariffs may impact pricing; subject to manufacturer updates.

You May Also Like
Your Recently Viewed
Reviews
Q&A

Technical details

Technical specification for DMS display of the PCE-DPD-F2
Signal Input Range	Accuracy at 25°C	Sensitivity in mV / V at 5V	Sensitivity in mV / V at 10V
0 ... 100 mV DC	± 0.05% of reading	20 mV / V	10 mV / V
0 ... 30 mV DC	± 0.05% of reading	6 mV / V	3 mV / V
0 ... 20 mV DC	± 0.05% of reading	4 mV / V	2 mV / V
0 ... 15 mV DC	± 0.05% of reading	3 mV / V	1.5 mV / V
0 ... 10 mV DC	± 0.05% of reading	2 mV / V	1 mV / V
0 ... 5 mV DC	± 0.05% of reading	1 mV / V	0.5 mV / V
Maximum input voltage		30V in all measuring ranges
Supply voltage measuring cells		5V or 10V
Maximum current		140-mA
Maximum number of measuring cells (with 350 Ohm measuring cells otherwise max. 140-mA)		5V supply: 1 ... 8 measuring cells 10V supply: 1 ... 4 measuring cells
Display		6-digit 7-segment LED display
Units (available by user)		g, kg, t, pcs, mg, lb, N, kN
Color		Red
Character height		14 mm
Display area		-199999 ... 999999
Decimal		Adjustable after each displayed digit
Under and Over Range display		The display flashes
Measuring rate (adjustable) / response time		16 Hz / 63 ms 50 Hz / 20 ms 60 Hz / 17 ms
Refresh rate display		16 Hz
Electrical connections		Screw connections 1 ... 2.5 mm²
Power supply		11 ... 60V DC / 24/48V AC
Input		Max. 1 W without output cards Max. 4 W with output cards
Degree of protection		Front: IP65
Assembly		Panel cut
Size panel cutout		92 x 44 mm / 3.6 x 1.7 in
Dimensions		96 x 48 x 91 mm / 3.7 x 1.9 x 3.6 in
Weight		About 150 g / < 1 lb
Operating temperature		0 ... 50°C / 32 ... 122°F
Storage temperature		-20 ... 70°C / -4 ... 158°F
Heating time		About 15 minutes
