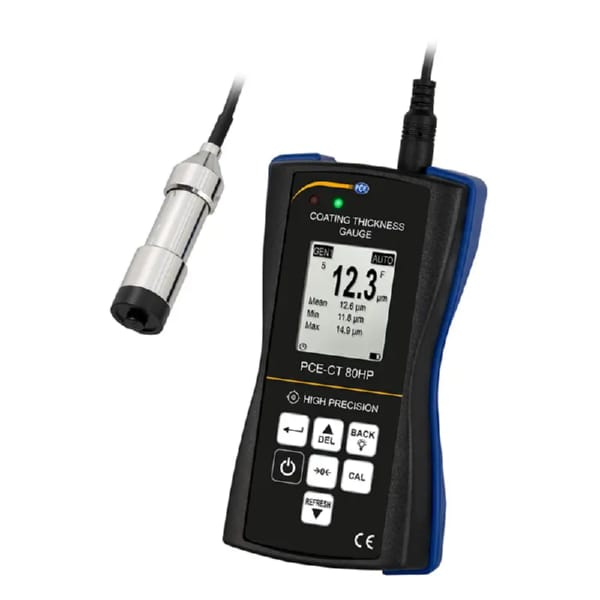

PCE Instruments PCE-CT 80HP-FN1D5 Coating Thickness Meter with V-Groove Sensor
- Part #:PCE-CT 80HP-FN1D5
- Condition:Brand New
- List Price: $1,276.00
- $1,033.70 / KitYou Save: 18.99%
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e)
Free Shipping
- List Price: $1,276.00
- $1,033.70 / KitYou Save: 18.99%
- Free Shipping
Coating thickness gauge with V-groove sensor / Measuring range from up to 0 ... 5000 µm / Adjustable alarm limits / Robust housing / Software / Data storage / High accuracy of up to ±(1.0% of reading + 0.5 µm)
The coating thickness gauge can reliably determine the thickness of, for example, plastics, paints and other coatings on ferrous and non-ferrous metals. With a measuring range of up to 0 ... 5000 µm on ferrous metals, the coating thickness gauge covers a wide range of measuring tasks. Because of the accuracy of up to ±(1.0% of mv. + 0.5 µm), the coating thickness gauge is a very precise measuring device. The sensor on the coating thickness gauge has a V-groove. Thanks to this V-groove, it is possible to carry out measurements on convex surfaces with the coating thickness gauge. In addition to the convex surfaces, measurements can also be carried out on concave surfaces with the coating thickness gauge.
During the measurements, the measured values can be saved on the coating thickness gauge. A memory of a maximum of 2,000 measured values is available for the coating thickness gauge. After a measurement run, the measured values from the coating thickness gauge can be transferred to a computer and analyzed using the software. For further processing of the measured values, they can be exported in CSV format.
A target/actual range can be stored with the limit value alarm function on the coating thickness gauge. If the test object is within the stored area at the coating thickness gauge, this is signaled by a green LED. If the measured value is outside the set range, this is indicated by a red LED from the coating thickness gauge. Because of the limit value alarm function, the coating thickness gauge is used, for example, in incoming and final inspection for quality assurance.
For a special protection of the electronics, the housing of the coating thickness gauge is additionally rubberized.
Features:
- Practical V-groove on the measuring heads
- High accuracy for small coatings
- Adjustable limit values
- Data memory for 2000 readings
- Measuring range of up to 0 ... 5000 µm
Includes:
- 1 x Coating Thickness Gauge PCE-CT 80HP-FN1D5
- 1 x Sensor
- 3 x 1.5V AAA batteries
- 1 x Carrying case
- 1 x Set of standard foils
- 1 x Calibration plates (Fe and NFe)
- 1 x Instruction manual
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Measuring range | Fe: 0 ... 1500 µm, NFe: 0 ... 1500 µm |
| Accuracy after foil calibration | ±(1.0 % of measured value + 1 µm) |
| Accuracy after zeroing | ±(1.5 % of measured value + 1 µm) |
| Probe diameter | Ø17 mm / 0.67" |
| Resolution | 0.1 µm (<100 µm), 1 µm (>100 µm) |
| Measurable materials | |
| Fe substrates such as: | Fe substrates such as: steel and iron |
| NFe substrates such as: | NFe substrates such as: aluminum and copper |
| Min. radius of curvature convex | 5 mm / 0.19" |
| Min. radius of curvature concave | 25 mm / 0.98" |
| Min. measuring surface | Ø17 mm / 0.67" |
| Min. layer thickness | 0.2 mm / 0.007" (on magnetic materials) |
| 0.05 mm / 0.002" (on non-magnetic materials) | |
| Probe mode | Auto material detection mode (Fe + NFe) |
| Magnet mode (Fe) | |
| Eddy current mode (NFe) | |
| Calibration | Multi-point calibration |
| (1 ... 4 points for each group) | |
| Zero calibration | |
| Units | µm, mm, mils |
| Data transfer | USB 2.0 |
| Memory | A volatile measurement group (DIR mode) |
| Four measurement groups with autom. | |
| storage and max. 2000 readings (GEN mode) | |
| Statistics functions | Number of measured values, mean, |
| minimum, maximum, standard deviation | |
| Alarm | Display when the adjustable value is exceeded |
| upper and lower alarm limit | |
| Automatic shutdown | auto. shutdown mode (3 min.) |
| Power supply | 3 x 1.5 V AAA batteries |
| Display | 128 x 128 px LCD display |
| Additional displays | battery status, error detection |
| Operating conditions | 0 ... +50 °C / 32 ... 122 °F |
| 20 ... 90 % RH non-condensing | |
| Storage conditions | -10 ... +60 °C / 14 ... 140 °F |
| 20 ... 90 % RH non-condensing | |
| Dimensions | 143 x 71 x 37 mm / 5.6 x 2.8 x 1.4" (L x W x H) |
| Weight | with sensor and batteries: 271 g / 9.5 oz |
