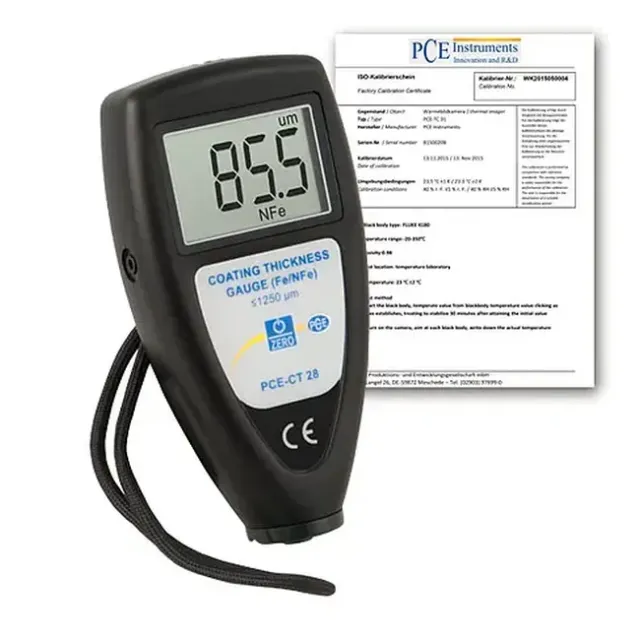

PCE Instruments PCE-CT 28-ICA Coating Thickness Gauge, 0 to 1250 um incl. ISO Calibration Certificate

Part #:PCE-CT 28-ICA
Condition:Brand New

List Price: $845.00
$828.80 / Kit
You Save: 1.92%
Free Shipping

List Price: $845.00
$828.80 / Kit
You Save: 1.92%
Free Shipping

2 Weeks Factory Lead Time

Check Availability

Quantity:

Description

PCE-CT 28 Coating Thickness GaugeDetermines thickness of coating on steel or iron (F) / Non-ferrous metals (N) with high range of measurement

The PCE-CT 28 Coating Thickness Gauge for cars is for measuring the thickness of paint and plastic on ferrous or non-ferrous materials without damaging the coating's surface. The Coating Thickness Gauge stands out due to its high range of measurement. This Coating Thickness Gauge works excellently as a tool for technicians in areas of paint or lacquering such as in production, automotive body repair or quality control. The Coating Thickness Gauge is particularly useful in detecting damage to vehicles produced by an accident, for preventing possible damage or as a toll in auto body repair. Also, in the industrial sector, this device is essential for quality control in shipping and receiving and during production. It is ergonomic with an integrated sensor and it shows results of measurements quickly and accurately. The Coating Thickness Gauge was designed for non-magnetic coatings such as plastic, chrome, zinc, copper, etc. and insulation such as rubber, plastic, glass and paper over steel, iron, aluminium, brass and stainless steel. Thanks to its wide measurement range, the Coating Thickness Gauge is ideal for the naval and metal industries.

Features:

F / N: for materials including iron, steel, aluminium, copper, brass and stainless steel
Instant results
Large measurement range
Vibrations do not influence readings
Elastic lined measuring head to ensure accurate results and prevent wear
The v-slot simplifies the measurement on round surfaces acting as a reference or axis point
Can be operated comfortably with only one hand thanks to its design and integrated sensor
Optional ISO calibration certificate
Comes complete with battery, carrying case, calibration standards and user's manual

Includes:

1 x PCE-CT 28 Coating Thickness Gauge with integrated F/N sensor
1 x Carrying case
4 x Batteries
1 x Set of calibration standards
1 x User's manual
1 x ISO Calibration Certificate

See more product information Report an issue with this product

⚠️ Attention CA Residents: Prop 65 Warning

📈 Tariffs may impact pricing; subject to manufacturer updates.

Specification Sheet
Manuals/Tutorials
You May Also Like
Your Recently Viewed
Reviews
Q&A

Technical details

Measurement range	0 ... 1250 µm / 49.2 mils
Resolution	0.1 µm / 0.004 mils (in a range of 0.0 to 99.9 µm / 3.9 mils) 1 µm / 0.04 mils(above the range)
Accuracy	± 2% or 2.5 µm / 0.10 mils (highest reading is valid)
Minimum surface measurable	6 mm x 6 mm / 0.2 in x 0.2 in
Minimum radial curve	convexed: 5 mm / 0.2 in concaved: 60 mm / 2.4 in
Minimum thickness of material	0.3 mm / 0.01 in (for ferrous materials) 0.1 mm / 0.004 in (for non-ferrous materials)
Display	LCD with 4 mm x 10 mm (0.2 in x 0.4 in) high digits
Operating temperature	0 ... 50°C / 32 ... 122°F
Power	4 batteries
Dimensions	126 x 65 x 27 mm / 5.0 x 2.6 x 1.1 in
Weight	120 g / 0.26 lbs with batteries
