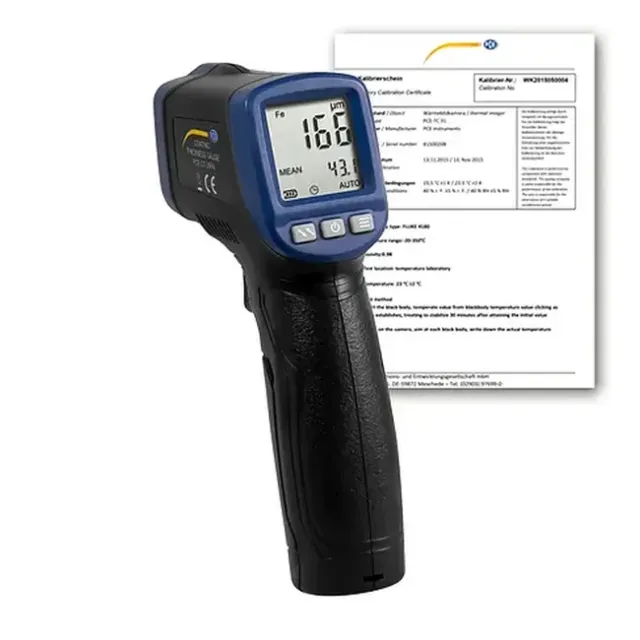

PCE Instruments PCE-CT 25FN-ICA Coating Thickness Meter incl. ISO Calibration Certificate
- Part #:PCE-CT 25FN-ICA
- Condition:Brand New
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e){kind=small}
Free ShippingCoating Thickness Meter with convenient one-hand operation / MIN MAX and MEAN display / Battery indicator / various units / automatic shutdown / for ferrous and non-ferrous metals / small and compact design
The coating thickness meter is used for the quick and precise detection of layer thicknesses on metals. In comparison to many other coating thickness meters, this coating thickness meter does not have to differentiate between ferrous and non-ferrous metal. With the small and compact design of the coating thickness meter, one-hand operation is possible. Despite its small size, the coating thickness meter has a measuring range of 1500 µm and an accuracy of ± (3% + 1 µm).
The measured values displayed can be output in µm, mm and in mils on the coating thickness meter. In addition to measuring the layer thickness, the coating thickness meter can determine the smallest, the largest and also the mean value from a series of different measurements. The coating thickness meter also has an automatic switch-off function.
Features:
- Small and compact design
- Fast measuring frequency
- Calibration set included
- Different units can be selected
- Also for continuous measurements
- Comfortable one-hand operation
Includes:
- 1 x Coating Thickness Meter PCE-CT 25FN
- 5 x calibration foil reference
- 1 x Fe zero standard
- 1 x NFe zero standard
- 1 x 9 V block battery
- 1 x instruction manual
- 1 x ISO Calibration Certificate
- Specification Sheet
- Manuals/Tutorials
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Measuring range | 0 ... 1500 µm |
| Measurement accuracy | ± (3% + 1 µm) |
| resolution | 0.1 µm in the measuring range 0 ... 100 µm |
| 1 µm in the measuring range> 100 µm | |
| units | µm, mm, mils |
| Smallest curvature | convex 5 mm, concave 25 mm |
| Smallest measuring area | Ø 20 mm |
| Minimum thickness of the substrate | Fe: 0.3 mm |
| NFe: 0.05 mm | |
| Measuring rate | Max. 2 Hz |
| Power supply | 9 V block battery |
| Operating conditions | -10 ... 50 ° C, 20 ... 90% RH non-condensing |
| Storage conditions | -10 ... 60 ° C, 20 ... 90% RH non-condensing |
| Dimensions | 143 x 85 x 39 mm |
| Weight | approx. 100 g |
| Housing material | SECTION |
