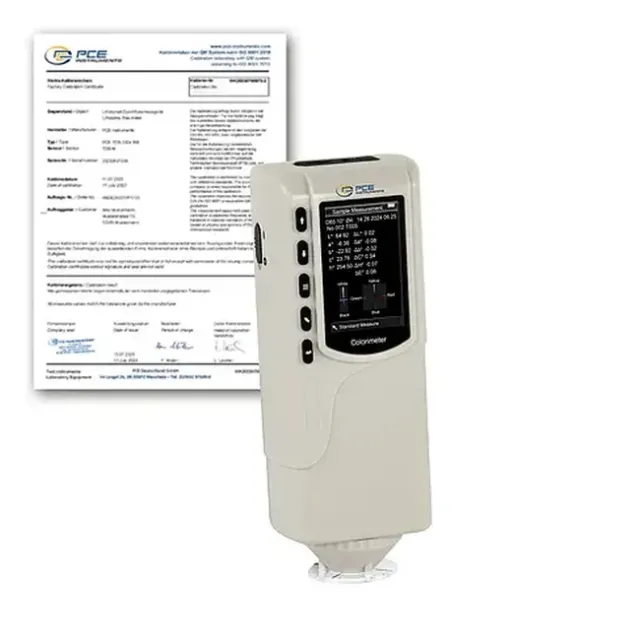

PCE Instruments PCE-CSM 1-ICA Colorimeter, Automatic White and Black Calibration incl. ISO Calibration Certificate

Spectrophotometer PCE-CSM 1

PC software included / Li-ion battery / 3 different color spaces / Determines reference values to compare to samples / White and black calibration

The handheld portable digital Spectrophotometer PCE-CSM 1 was developed for quality control and offers a high accuracy. When using the Spectrophotometer, you can choose between different color spaces (CIE L*a*b*C*h, CIE L*a*b* and CIE XYZ). After a measurement with the Spectrophotometer, the reading can be used as a reference value while other readings can be recorded as a sample and later be compared to the reference value easily.

In addition to the individual color space coordinates, the deviation between the reading is also displayed. When using the Spectrophotometer, it is possible to store up to 100 reference values and up to 20,000 samples on the device. The measured data can also be transferred to a PC via the USB interface. A special PC software is included in the package.

Features:

• CIE L*a*b*C*h, L*a*b* and XYZ
• Automatic white and black calibration
• Determines reference values to compare to samples
• Rechargeable Li-ion battery
• measuring of different colors
• Suitable for many different surfaces
• 8°/d geometry diffused illumination integrating sphere system illuminates sample from 8-degree angle
• Easy to use
• Incl. PC software
• 6 mm sample aperture

Includes:

• 1 x Spectrophotometer PCE-CSM 1
• 1 x USB cable
• 1 x Li-ion battery
• 1 x AC power adapter / charger
• 1 x Wrist band
• 1 x Calibration plate (white)
• 1 x Lens cap (serves as black calibration plate)
• 1 x Soft carrying case
• 1 x PC software
• 1 x User manual
• 1 x ISO Calibration Certificate
