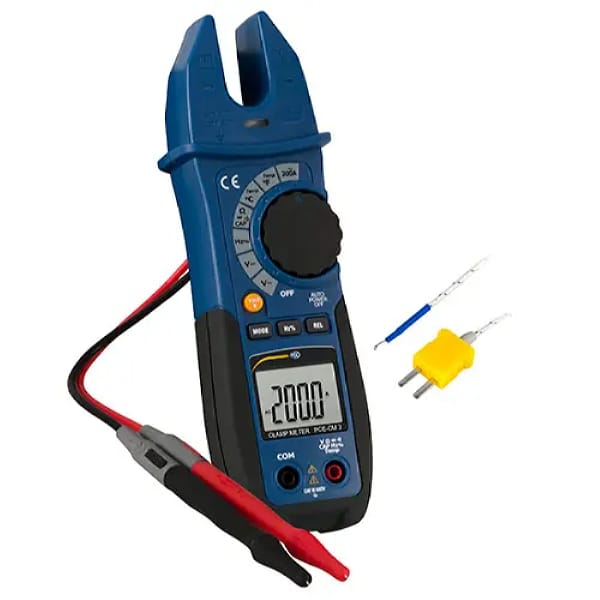

PCE Instruments PCE-CM 3 Fork Clamp Up to 200 A AC
- Part #:PCE-CM 3
- Condition:Brand New
- List Price: $119.00
- $117.81 / EachYou Save: 1.0%
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e)
Free Shipping
- List Price: $119.00
- $117.81 / EachYou Save: 1.0%
- Free Shipping
Fork Clamp Up to 200 A AC / AC / DC Voltage Measurement / Simple Current Measurement / LC display / Continuity test / Thermometer
The voltmeter is used for quick and easy AC measurements. For current measurement, the voltmeter is placed over the current-carrying conductor. The voltmeter is particularly suitable for the measurement of AC in distributions and wherever circuits must not be interrupted. The current measuring range extends from 0 ... 200 A. In addition to the current measurement, the voltmeter can be used to measure DC and AC voltages up to 600V, resistances, capacitances and even temperatures. The measured values are displayed on the illuminated display of the voltmeter.
The compact dimensions and the low weight distinguish this voltmeter as well as the robust housing. This makes the voltmeter the perfect companion for installers and service technicians.
Features:
- Digital Multimeters up to 200 A
- Compact dimensions
- Robust plastic housing
- Multimeter functions
- Battery operation
- Backlit LCD
Includes:
- 1 x Voltmeter PCE-CM 3
- 2 x Test leads
- 2 x Measuring tip
- 1 x Adapter thermocouple
- 1 x Thermocouple type K
- 2 x AAA batteries 1.5V
- 1 x User manual
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| DC | ||
| Measuring range | Resolution | Accuracy |
| 4V DC | 1 mV | ± (1.2% of measured value + 2 digits) |
| 40V DC | 10 mV | ± (1.5% of measured value + 2 digits) |
| 400V DC | 100 mV | ± (1.5% of measured value + 2 digits) |
| 600V DC | 1V | ± (2% of measured value + 2 digits) |
| Input impedance | 10 MΩ | |
| Overvoltage protection | 600V DC | |
| 600V AC RMS | ||
| AC | ||
| Measuring range | Resolution | Accuracy |
| 4V AC | 1 mV | ± (1.5% of measured value + 5 digits) |
| 40V AC | 10 mV | ± (1.5% of measured value + 2 digits) |
| 400V AC | 100 mV | ± (1.5% of measured value + 2 digits) |
| 600V AC | 1 V | ± (2% of measured value + 2 digits) |
| Input impedance | 10 MΩ | |
| Overvoltage protection | 600V DC | |
| 600V AC RMS | ||
| Frequency range | 50 ... 400 Hz | |
| Alternating current | ||
| Measuring range | Resolution | Accuracy |
| 200 A AC | 100-mA | ± (3.0% of measured value + 5 digits) |
| Overload protection | 200 A AC | |
| Frequency range | 50 ... 60 Hz | |
| Resistance | ||
| Measuring range | Resolution | Accuracy |
| 400 Ω | 0.1 Ω | ± (1% of measured value + 4 digits) |
| 4 kΩ | 1 Ω | ± (1.5% of measured value + 4 digits) |
| 40 kΩ | 10 Ω | ± (1.5% of measured value + 4 digits) |
| 400 kΩ | 100 Ω | ± (1.5% of measured value + 4 digits) |
| 4 MΩ | 1 kΩ | ± (2.5% of measured value + 4 digits) |
| 40 MΩ | 10 kΩ | ± (3.5% of measured value + 4 digits) |
| Overvoltage protection | 250V DC | |
| 250 AC RMS | ||
| Connection thermocouple | Type K connection with adapter | |
| Capacity | ||
| Measuring range | Resolution | Accuracy |
| 4 nF | 0.1 nF | ± (5% of measured value + 20 digits) |
| 40 nF | 1 nF | ± (3% of measured value + 5 digits) |
| 400 nF | 10 nF | ± (3% of measured value + 5 digits) |
| 4 μF | 100 nF | ± (3% of measured value + 5 digits) |
| 40 μF | 1 μF | ± (3% of measured value + 5 digits) |
| 100 μF | 10 μF | ± (3% of measured value + 10 digits) |
| Overvoltage protection | 250V DC | |
| 250 AC RMS | ||
| Check feature | Test | Display |
| Diode test | Test current: 0.5-mA Reverse Voltage: 1.5V | Forward voltage of the diode |
| Continuity test | Open circuit Voltage 0.5V | Noise when resistance <50 Ω |
| Overvoltage protection | 250V DC 250 AC RMS | |
| General technical specifications | ||
| Jaw Capacity | About 17 mm / .7 in | |
| Display | 4000 digit LCD with backlight | |
| Continuity test | Noise when resistance <50 Ω | |
| Test current | About 0.5-mA | |
| Open circuit voltage | <2V DC | |
| Battery indicator | Battery icon when battery voltage low | |
| Display overrange | OL appears in the display | |
| Refresh rate display | 3 Hz | |
| Temperature sensor | Thermocouple type K | |
| Input impedance | 10 MΩ | |
| Operating conditions | 5 ... 40°C / 41 ... 104°F, 80% rh non-condensing | |
| Storage conditions | -20 ... 60°C / -4 ... 140°F, 80% rh non-condensing | |
| Operating altitude | <2000 m | |
| Power supply | 2 x 1.5V AAA battery | |
| Automatic shutdown | 30 minutes | |
| Security conditions | IEC1010-1 (2001) CAT II 1000V CAT III 600V | |
| Pollution degree | 2 | |
