Overview

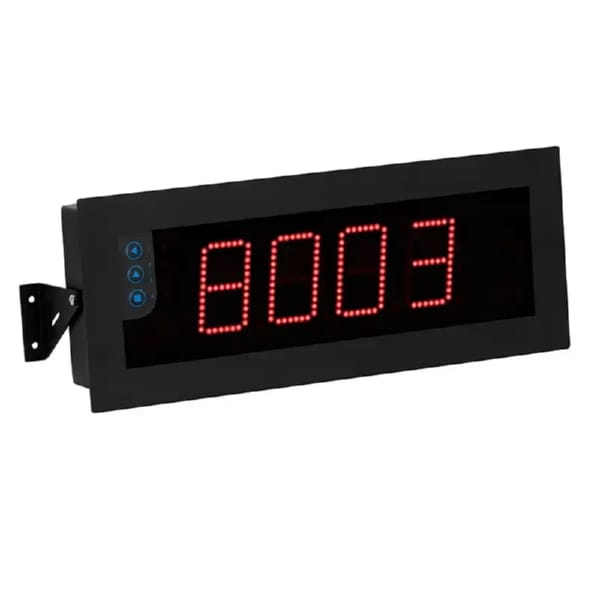

The PCE Instruments PCE-BPD-U-46D Digital Universal Indicator is a robust and highly visible display solution engineered for industrial environments. Featuring a durable metal housing with IP65 protection, this indicator is designed for wall or switch cabinet mounting and offers a bright red LED display with digit heights of 60 mm or 100 mm, ensuring readability from distances of up to 25 m or 50 m, respectively. This individually configurable indicator accepts various input signals, including 4...20 mA and pulses, and offers optional output signals for process control, making it ideal for professionals needing clear, long-range monitoring and control in demanding conditions.
Key Features
- High Visibility LED Display: Features bright red LEDs with digit heights of 60 mm or 100 mm for clear reading from distances up to 25 m or 50 m, even in bright environments.
- Robust Metal Housing with IP65 Protection: Designed with a durable metal enclosure that is splash-proof (IP65), ensuring reliable operation in harsh industrial conditions.
- Versatile Input Signal Compatibility: Accepts a wide range of industry-standard input signals, including 4...20 mA and pulses, for flexible integration with various sensors and systems.
- Individually Configurable via Keypad: Allows direct configuration of display parameters and alarm functions through an integrated keypad for customized operation.
- Optional Output Signals for Process Control: Offers optional output interfaces for switching process signals and pulses upon reaching defined limit values, enabling automated control.
Specifications
- Brand: PCE Instruments
- Model: PCE-BPD-U-46D
- Housing Material: Metal
- Protection Class: IP65 (Splash-proof)
- Display Color: Red
- Digit Height Options: 60 mm or 100 mm
- Reading Distance: Up to 25 m (60 mm digits), Up to 50 m (100 mm digits)
- Input Signals: 4...20 mA, Pulses (various options available)
- Configuration: Via Keypad
- Mounting Options: Wall mounting, Switch cabinet mounting
- Output Signals: Optional (Relay, Transistor, etc.)
Applications
The PCE-BPD-U-46D Digital Universal Indicator is a versatile solution for a wide range of professional monitoring and control applications, including:
- Industrial Process Monitoring: Displaying critical process parameters such as pressure, temperature, level, and flow in manufacturing and processing plants.
- Warehouse and Logistics: Providing clear visibility of counting data, speed, or position in large warehouse or transportation facilities.
- Production Line Monitoring: Displaying production rates, cycle times, or piece counts for enhanced efficiency management.
- Filling and Weighing Systems: Presenting accurate weight or volume data in filling stations and weighing applications.
- Traffic and Transportation Management: Displaying speed limits, traffic flow information, or passenger counts in transportation hubs.
Performance and Characteristics
The PCE-BPD-U-46D is engineered for reliable and highly visible display of critical process data. Its bright red LED display ensures excellent readability even in brightly lit industrial environments, and the choice of digit heights allows for optimal viewing from significant distances. The robust metal housing with IP65 protection guarantees durability and reliable operation in demanding conditions, resisting dust and water ingress. The flexibility to accept various input signals and the option for output control signals make this indicator a versatile component for integrating into diverse industrial control systems. Direct configuration via the keypad simplifies setup and customization for specific application requirements.
Ensure clear, long-range process monitoring and control in your industrial environment with the robust PCE-BPD-U-46D Digital Universal Indicator. Order yours today!
- You May Also Like
- Your Recently Viewed
- Reviews
Function | to convert analog signal into a usable value |
Input signal | 4 ... 20 mA, ±20 mA DC, 0 ... 10 V DC, ±10 V DC |
Maximum input signal | 100 mA or 100 V DC |
Input impedance (current measurement) | 11 Ω |
Input impedance (voltage measurement) | 932 kΩ |
Number of digits | 4 |
Digit height | 60 mm / 2.3" |
Maximum reading distance | 25 m / 82 ft |
Accuracy | 0.05 % of measuring range |
Measuring rate | 15 Hz |
Response time for value changes from 0 to 99% of the signal | 120 ms |
Display range | -1999 ... 9999 |
Number of outputs | 2 |
Power consumption (without optional accessories) | 3 W |
Power consumption (with optional accessories) | 5 W |
Sensor voltage supply | 20, 15, 10, 5 V DC |
Sensor power supply accuracy | ±5 % |
Maximum sensor supply | current 35 mA (with short-circuit protection) |
Power supply | 11 ... 36 V DC |
Weight | 2200 g / 77.6 oz |
Further specifications | |
Cable cross-section for input and output signal | <0.5 mm² |
Cable cross-section for supply voltage | <2.5 mm² |
Display | 7 segment display |
Viewing angle | 120 ° |
Warm-up time | 15 minutes |
Dimensions | further information can be found in the instructions |
Operating conditions | 0 ... 50 °C / 32 ... 122 °F, <90 % RH, noncondensing |
Storage conditions | -20 ... 70 °C / -4 ... 158 °F, <90 % RH, noncondensing |
Dimensions (diagram above in the images) | A 340 mm / 13.3" B 135 mm / 5.3" C 3 mm / 0.1" D 55 mm / 2.1" E 25 mm / 0.9" |
