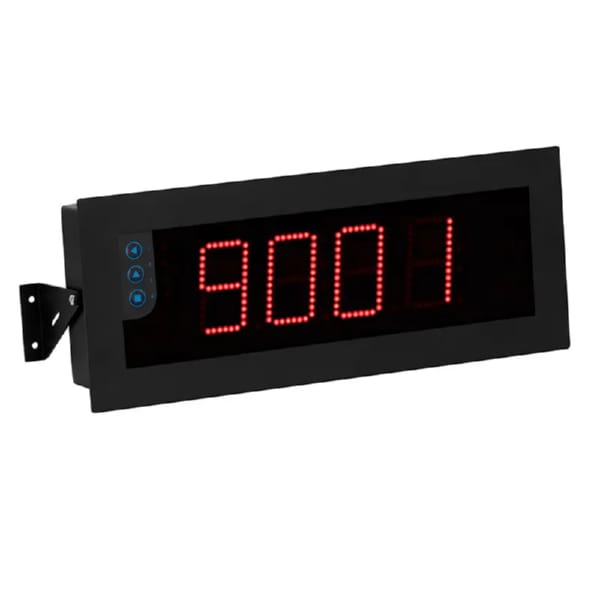

PCE Instruments PCE-BPD-U-46A Panel Meter
- Part #:PCE-BPD-U-46A
- Condition:Brand New
- List Price: $999.00
- $837.80 / EachYou Save: 16.14%
%20Copyright%202023%20Fonticons,%20Inc.%20--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048V96H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20272c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2048c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20240c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2016c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20208c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64V416c0%2053%2043%2096%2096%2096s96-43%2096-96H384c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V288%20256%20237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48H112zM544%20237.3V256H416V160h50.7L544%20237.3zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96zm272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201%20-96%200z'/%3e%3c/svg%3e)
Free Shipping
Panel Meter with metal housing / Wall and switch cabinet mounting / IP65 / Bright red LED display / Individually configurable / Digit height of up to 100 mm / Various output signals / Display readable from a great distance
The panel meter is designed in such a way that the measured values displayed can be read from a large distance. With a digit height of 60 mm or 100 mm, the reading distance for the panel meter is 25 m or 50 m. The red LEDs of the panel meter enable reading of the measured values even in very bright surroundings. The housing of the panel meter is made of metal and is splash-proof with IP65. Thus, the panel meter can be used under harsh environmental conditions.
Many different variants are available as input signals for panel meters. Among other things, the industry supports digital displays 4 ... 20 mA and pulses. The panel meter is configured directly via the keypad. Digital display output interfaces are optionally available for industry. This makes it possible to switch process signals and pulses via the panel meter when a limit value is reached, for example.
The panel meter can be aligned vertically for optimal alignment when mounted on the wall. In addition to wall mounting, the panel meter can be mounted on a control cabinet. The insulation on the housing of the panel meter ensures that no water can get into the control cabinet.
Features:
- Protection class IP65
- Robust metal housing
- Individually parameterizable
- Bright red LED indicator
- For wall or control cabinet mounting
- Different input signals
Includes:
- 1 x Panel Meter PCE-BPD-U-46A
- 1 x Instruction Manual
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Function | to convert analog signal into a usable value |
| Input signal | 4 ... 20 mA, ±20 mA DC, 0 ... 10 V DC, ±10 V DC |
| Maximum input signal | 100 mA or 100 V DC |
| Input impedance (current measurement) | 11 Ω |
| Input impedance (voltage measurement) | 932 kΩ |
| Number of digits | 4 |
| Digit height | 60 mm / 2.3" |
| Maximum reading distance | 25 m / 82 ft |
| Accuracy | 0.05 % of measuring range |
| Measuring rate | 15 Hz |
Response time for value changes from 0 to 99% of the signal | 120 ms |
| Display range | -1999 ... 9999 |
| Number of outputs | 2 |
| Power consumption (without optional accessories) | 3 W |
| Power consumption (with optional accessories) | 5 W |
| Sensor voltage supply | 20, 15, 10, 5 V DC |
| Sensor power supply accuracy | ±5 % |
| Maximum sensor supply | current 35 mA (with short-circuit protection) |
| Power supply | 85 ... 265 V AC / 120 ... 370 V DC |
| Weight | 2200 g / 77.6 oz |
| Further specifications | |
| Cable cross-section for input and output signal | <0.5 mm² |
| Cable cross-section for supply voltage | <2.5 mm² |
| Display | 7 segment display |
| Viewing angle | 120 ° |
| Warm-up time | 15 minutes |
| Dimensions | further information can be found in the instructions |
| Operating conditions | 0 ... 50 °C / 32 ... 122 °F, <90 % RH, noncondensing |
| Storage conditions | -20 ... 70 °C / -4 ... 158 °F, <90 % RH, noncondensing |
| Dimensions (diagram above in the images) | A 340 mm / 13.3" B 135 mm / 5.3" C 3 mm / 0.1" D 55 mm / 2.1" E 25 mm / 0.9" |
