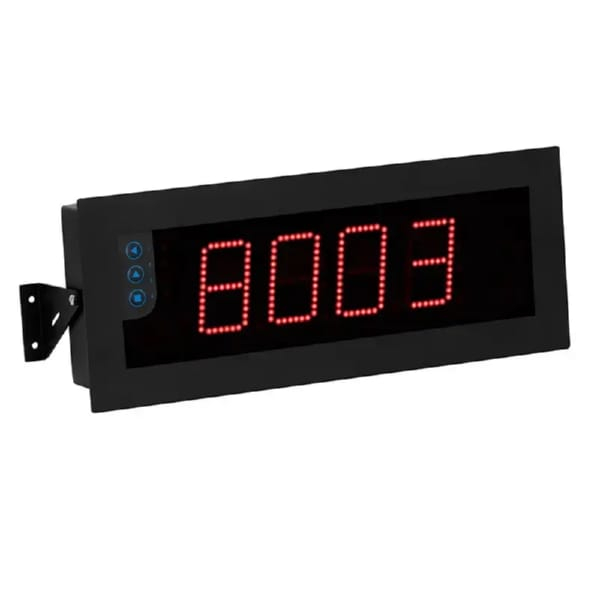

PCE Instruments PCE-BPD-U-41D Digital Universal Indicator with Metal Housing

Overview

The PCE Instruments PCE-BPD-U-41D Digital Universal Indicator is a versatile and robust display unit designed for industrial applications requiring clear, long-distance visibility of measured values. Encased in a durable metal housing with an IP65 rating, this indicator is built to withstand harsh environmental conditions. Its bright red LED display, with a digit height of up to 100 mm, ensures excellent readability even from considerable distances. The indicator offers a high degree of configurability, accommodating various input signals and providing optional output signals for enhanced process control. Its flexible mounting options allow for both wall and control cabinet installation, making it a valuable tool for professionals needing a reliable and easily visible display of process data.

Key Features

• High Visibility Display: Features a bright red LED display, available in digit heights of 60 mm or 100 mm, enabling reading distances of 25 m or 50 m, respectively.
• Durable Metal Housing: Provides robust protection for use in demanding industrial environments.
• IP65 Protection: Offers splash-proof protection against water and dust, ensuring reliable operation.
• Configurable Input Options: Supports a variety of input signals, such as 4...20 mA and pulses, for versatile application.
• Flexible Mounting: Designed for convenient wall or control cabinet mounting to suit different installation needs.
• Optional Output Interfaces: Allows for switching process signals and pulses based on defined limit values, enabling process automation.

Specifications

Product Name: PCE Instruments PCE-BPD-U-41D Digital Universal Indicator with Metal Housing

Housing Material: Metal

Protection Class: IP65

Display Color: Bright Red

Display Type: LED

Digit Height: Up to 100 mm (Specify Available Options)

Reading Distance: Up to 50 m (depending on digit height)

Input Signals: Various (e.g., 4...20 mA, Pulses)

Output Signals: Optional (Specify Available Options)

Mounting Options: Wall, Control Cabinet

Applications

Essential for monitoring process parameters in manufacturing plants, providing clear visibility of production rates, machine status, or output quantities. Ideal for chemical processing facilities to display critical values like tank levels, flow rates, or pressures. Used in water treatment plants to monitor water levels, flow rates, or chemical dosing. Applicable in power generation plants to display voltage, current, or power output. Valuable in any industrial environment where real-time data needs to be clearly displayed over a distance for efficient monitoring and control.

Performance and Characteristics

The PCE-BPD-U-41D is engineered for excellent visibility, allowing personnel to easily monitor process values from a distance. The robust metal housing and IP65 protection ensure reliable operation in challenging industrial settings. The configurability of input signals allows for seamless integration with various sensors and measurement devices. The optional output interfaces enable the indicator to trigger actions based on predefined thresholds. The mounting flexibility provides adaptability to different installation locations and requirements.

Additional Information

The indicator is configured directly via the keypad, simplifying setup and operation. The display can be vertically aligned for optimal viewing when wall-mounted. The housing design prevents water from entering the control cabinet during installation. The selection of appropriate digit height and output signal options should be based on the specific application needs. Refer to the product datasheet for detailed specifications on available input/output configurations and display dimensions.

Kit Contents

This product includes:

• 1 x Digital Universal Indicator PCE-BPD-U-41D
• 1 x Instruction Manual
