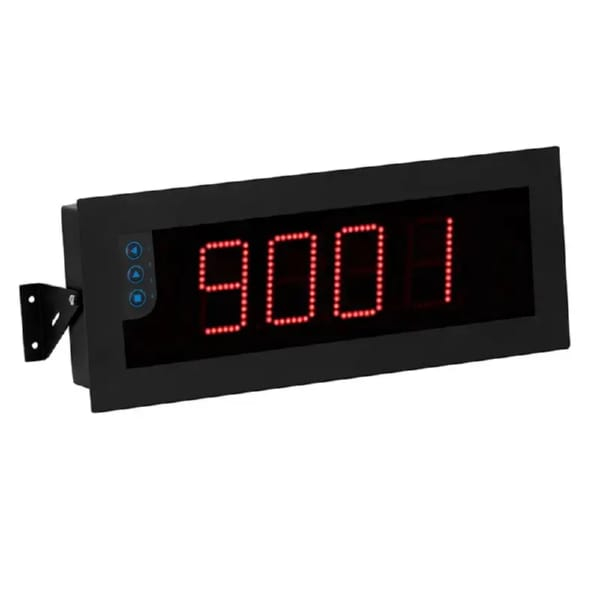

PCE Instruments PCE-BPD-U-41A Panel Meter with Bright Red LED Display
Upgrade your industrial monitoring with the PCE-BPD-U-41A Panel Meter. This robust, IP65-rated panel meter boasts a bright red LED display with customizable digit heights up to 100mm, ensuring clear visibility even from a distance and in bright environments. Its versatile input options and individual configurability make it perfect for various applications.
Ideal For:
- Industrial process monitoring and control
- Manufacturing and production facilities
- Harsh environments requiring durable equipment
- Applications needing clear visual data display from a distance
Key Applications:
- Displaying measurements from sensors and transducers
- Monitoring temperature, pressure, flow, and other process variables
- Triggering alarms or control actions based on setpoints
- Integrating with industrial automation systems
Performance and Characteristics:
- Protection Class IP65: Dust-tight and protected against water jets
- Robust Metal Housing: Ensures durability in demanding environments
- Individually Parameterizable: Customize settings to suit your application
- Bright Red LED Indicator: Excellent visibility even in bright conditions
- Digit Height up to 100 mm: Readable from up to 50 meters
- Wall or Control Cabinet Mounting: Flexible installation options
- Various Input Signals: Supports 4-20 mA, pulses, and other industrial signals
- Optional Output Interfaces: Enable process signal switching and pulse output
Specifications:
- Brand: PCE Instruments
- Model: PCE-BPD-U-41A
- Display Type: Bright red LED
- Digit Height: 60 mm or 100 mm
- Reading Distance: 25 m or 50 m
- Housing Material: Metal
- Protection Class: IP65
- Input Signals: Various (including 4-20 mA, pulses)
- Output Interfaces: Optional
- Mounting: Wall or control cabinet
Kit Content/What's Included:
- 1 x PCE-BPD-U-41A Panel Meter
- 1 x Instruction Manual
Experience clear and reliable process monitoring with the PCE-BPD-U-41A Panel Meter. Enhance your industrial operations today!
- Specification Sheet
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Function | to convert analog signal into a usable value |
| Input signal | 4 ... 20 mA, ±20 mA DC, 0 ... 10 V DC, ±10 V DC |
| Maximum input signal | 100 mA or 100 V DC |
| Input impedance (current measurement) | 11 Ω |
| Input impedance (voltage measurement) | 932 kΩ |
| Number of digits | 4 |
| Digit height | 100 mm / 3.9" |
| Maximum reading distance | 50 m / 164 ft |
| Accuracy | 0.05 % of measuring range |
| Measuring rate | 15 Hz |
Response time for value changes from 0 to 99% of the signal | 120 ms |
| Display range | -1999 ... 9999 |
| Number of outputs | 2 |
| Power consumption (without optional accessories) | 5.25 W |
| Power consumption (with optional accessories) | 6.75 W |
| Sensor voltage supply | 20, 15, 10, 5 V DC |
| Sensor power supply accuracy | ±5 % |
| Maximum sensor supply | current 35 mA (with short-circuit protection) |
| Power supply | 85 ... 265 V AC / 120 ... 370 V DC |
| Weight | 2500 g / 88.1 oz |
| Further specifications | |
| Cable cross-section for input and output signal | <0.5 mm² |
| Cable cross-section for supply voltage | <2.5 mm² |
| Display | 7 segment display |
| Viewing angle | 120 ° |
| Warm-up time | 15 minutes |
| Dimensions | further information can be found in the instructions |
| Operating conditions | 0 ... 50 °C / 32 ... 122 °F, <90 % RH, noncondensing |
| Storage conditions | -20 ... 70 °C / -4 ... 158 °F, <90 % RH, noncondensing |
| Dimensions (diagram above in the images) | A 542 mm / 21.3" B 166 mm / 6.5" C 3 mm / 0.1" D 55 mm / 2.1" E 25 mm / 0.9" |
