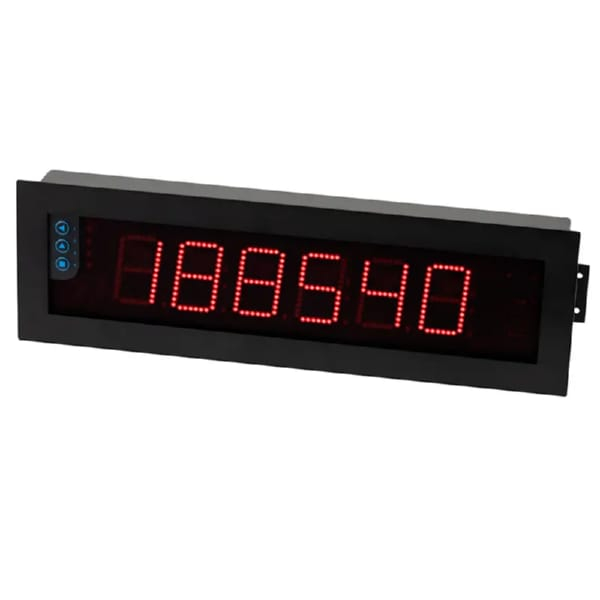

PCE Instruments PCE-BPD-P-66D Panel Meter with Metal Housing

  • Part #:PCE-BPD-P-66D
  • Condition:Brand New
0 Reviews Write a Review
  • List Price: $1,188.00
    • $939.30 / Each
      You Save: 20.93%
  • Free Shipping logoFree Shipping
See product details
  • Technical details
  • Description
  • You May Also Like
  • Your Recently Viewed Items
  • Reviews
Technical details
Functionconvert frequency to a usable value
Input signalNPN, PNP
Input voltage±30 V DC
Input impedance2.4 kΩ with pull-up or pull-down resistor
 470 kΩ without pull-up or pull-down resistor
Quartz accuracy±0.01 %
Number of digits6
Digit height60 mm / 2.3"
Maximum reading distance25 m / 82 ft
Accuracy0.03% of measuring range
Measuring rate15 Hz
Response time for value changes
from 0 to 99% of the signal		300 ms
Display range-199,999 ... 999,999
Number of outputs3
Power consumption3.5 W
(without optional accessories)
Power consumption
(with optional accessories)		5.5 W

Sensor voltage supply18, 15, 9, 5 V DC
Maximum current for the sensor supply   70 mA (with short-circuit protection)
Power supply11 ... 36 V DC
Weight3500 g / 123.4 oz

Further specifications
Cable cross-section for input
and output signal		<0.5 mm²
Cable cross-section for supply voltage<2.5 mm²
Display7 segment display
Viewing angle120 °
Warm-up time15 minutes
Operating conditions0 ... 50 °C / 32 ... 122 °F, <90 % RH, non-condensing
Storage conditions-20 ... 70 °C / -4 ... 158 °F, <90 % RH, non-condensing

Dimensions
(diagram above with the images)		A 436 mm / 17.1"
B 135 mm / 5.3"
C 3 mm / 0.1"
D 55 mm / 2.1"
E 25 mm / 0.9"
