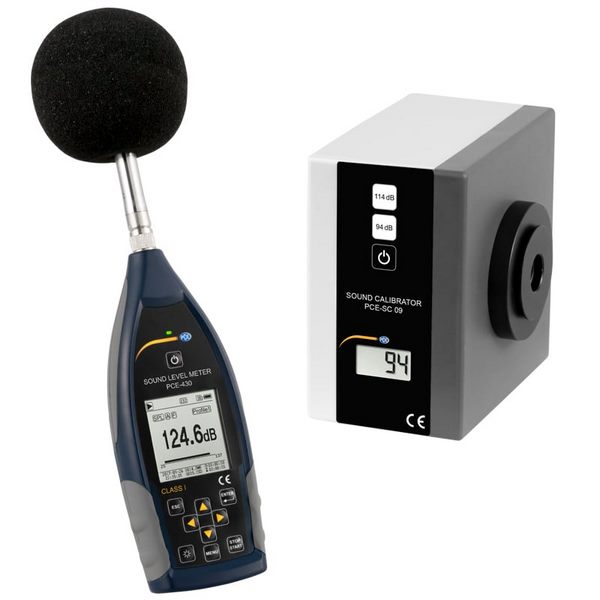

PCE Instruments PCE-430-SC 09 Class 1 SPL Meter with Calibrator
- Part #:PCE-430-SC 09
- Condition:Brand New
- List Price: $3,326.00
- $2,889.00 / EachYou Save: 13.14%
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e)
Free Shipping
- List Price: $3,326.00
- $2,889.00 / EachYou Save: 13.14%
- Free Shipping
Professional SPL meter (class 1) incl. Class 1 calibratorHandheld sound level meter and real-time frequency analyzer. Octave band filter. Filters can be upgraded. Fast, Slow and pulse weighting. Data logger. USB
The class 1 sound level meter meets all the requirements for noise measurement and frequency analysis. This integrating precision pulse sound level meter complies with all applicable standards and guidelines (Class 1 EN / IEC 61672, ANSI S1.4-1983, ANSI S1.43-1997 EN / IEC61260, etc.). The sound level meter has a very large illuminated display. The display of the sound level meter shows the sound pressure level numerically and graphically in real time. The professional sound level meter has an integrated data logger. The measurement data are saved on a micro SD card.
This card can be read out directly in the PC. The sound level meter can also be connected to the PC via USB and the memory can be read out. The post-processing software of the sound level meter allows convenient measurement data analysis. The typical areas of application for this device are in the measurement of workplace noise, compliance with regulations, determination of environmental noise, selection of hearing protection Protector Selection, selection of suitable noise control measures and estimation of noise exposure.
The impulse function of enables short-term sound events to be recorded. Thanks to the integrated octave band function, even the slightest differences in the frequency band can be determined here. The frequency filter can be optionally upgraded. The measuring range of this professional sound level meter extends from 22 ... 136 db (A) at a frequency of 3 Hz ... 20 kHz.
Features:
- 1/1 octave band included
- Accuracy class 1
- A, B, C & Z frequency weighting
- Fast, Slow, Impulse and Peak time weighting
- Statistics function
- Display of the sound course as a graph
- 3 measurement profiles adjustable
- low self-noise
- ICCP microphone 40 mV / PA
- Adjustable alarm level
- incl. class 1 sound calibrator
Includes:
- 1 x SPL meter PCE-430-SC 09
- 1 x 1/2" measurement microphone class 1
- 1 x Wind noise suppressor (foam ball)
- 1 x USB interface cable
- 1 x Software
- 1 x Power supply
- 1 x Carrying case
- 1 x Instruction manual
- 1 x Class I sound calibrator PCE-SC 09
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
Measuring range | 22 ... 136 db(A) |
Accuracy | Class 1 |
Frequency range | 3 Hz ... 20 kHz |
Standards | GB/T 3785.1-2010 GB/T 3785.2-2010 IEC 60651:1979 IEC 60804:2000 IEC 61672-1:2013 ANSI S1.4-1983 ANSI S1.43-1997 |
Frequency analysis | 1/1 Octave band filter: 8 Hz ... 16 kHz 1/3 Octave band filter: 6.3 Hz ... 20 kHz |
Microphone | 1/2" Microphone Class: 1 Sensitivity: 40 mV/PA Frequency range: 3 Hz ... 20 kHz Connection: TNC Power supply: ICCP Standard |
Data-logging interval | 1 s ... 24 h (adjustable) |
Measuring functions | LXY (SPL), LXeq, LXYSD, LXSEL, LXE, LXYmax, LXYmin, LXPeak, LXN |
X = Frequency weighting: A, B, C, Z Y = Time weighting: F, S, I N = Statistics in %: 1 ... 99% | |
Frequency weightings | A, B, C, Z |
Time weightings | Fast (F) 125ms, Slow (S) 1 sec, Impulse (I) 35 ms |
Inherent noise | Microphone: 19 db(A), 25 db(C), 31 db(Z) Electronics: 13 db(A), 17 db(C), 24 db(Z) |
AD converter | 24 Bit |
AD Sample rate | Standard: 48 kHz LN Mode: 20 ms |
Measuring display | Numerical Bar graph Graphical |
Display | 160 x 160 pixel LCD with backlight |
Memory | 4 GB Micro SD card |
Interface | USB (Memory readable via software or directly as mass storage) RS-232 |
Voltage output | AC 5V RMS DC 10 mV/db |
Alarm | Adjustable |
Power supply | 4 x 1.5V AA Batteries 12V / 1 A Power plug 5V / 1 A USB |
Battery life | Min. 10 h continuous use |
Dimensions | 70 x 300 x 36 mm / 2.76 x 11.81 x 1.42 in (W x H x D) |
Weight | Approx. 620 g / 1.4 lbs incl. batteries |
