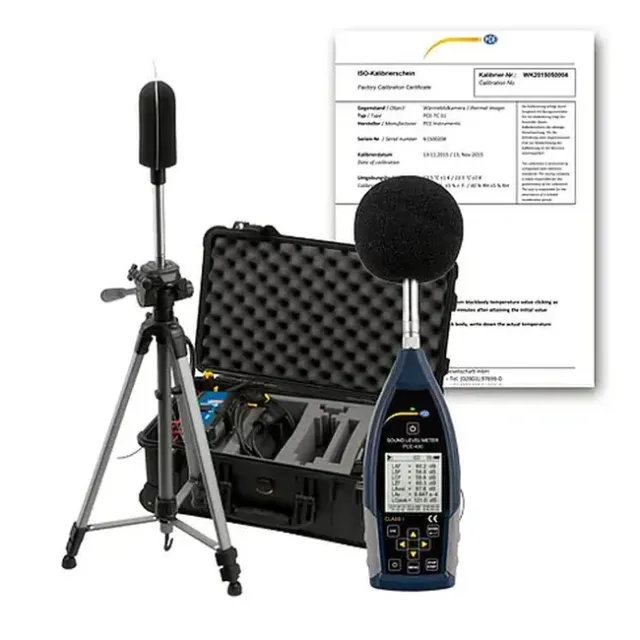

PCE Instruments PCE-430-EKIT-ICA Professional Outdoor Decibel Meter Kit incl. ISO Calibration Certificate
- Part #:PCE-430-EKIT-ICA
- Condition:Brand New
- List Price: $7,875.00
- $7,273.00 / KitYou Save: 7.64%
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e)
Free Shipping
- List Price: $7,875.00
- $7,273.00 / KitYou Save: 7.64%
- Free Shipping
Professional outdoor decibel meter PCE-430 (class 1) incl. outdoor noise level meter kitHandheld noise meter and real-time frequency analyzer / Octave band filter / Filter upgradeable / Fast, Slow and Pulse Evaluation / Data logger / USB
The Class 1 outdoor decibel meter PCE-430-EKIT meets all requirements for noise measurement and frequency analysis. This integrated precision pulse decibel meter follows all valid standards and guidelines (Klasse 1 EN/IEC 61672, ANSI S1.4-1983, ANSI S1.43-1997 EN/IEC61260, etc.) The outdoor decibel meter PCE-430 has a very large illuminated display. The decibel meter display adjusts the sound pressure level numerically and graphically in real time. The professional decibel meter has an integrated data logger. The measurement data is stored on a micro SD card.
This card can be read directly in the PC. Likewise, the outdoor decibel meter can be connected to the PC via USB and the memory can be read out. The post-processing software from the decibel meter allows convenient measurement data analysis. The typical applications for this instrument are the measurement of workplace noise, compliance, environmental noise detection, selection of hearing protector selection, selection of appropriate noise abatement measures and noise exposure estimation.
Features:
- 1/1 octave band included
- Accuracy class 1
- A, B, C & Z frequency rating
- Fast, Slow, Pulse and Peak time weighting
- Statistics function
- Display of the sound profile as a graph
- 3 measuring profiles adjustable
- Low inherent noise
- ICCP microphone 40 mV /PA
- Alarm level adjustable
Includes:
- 1 x Outdoor Decibel Meter PCE-430-EKIT incl. Outdoor Noise Level Meter Kit
- 1 x 1/2" measurement microphone class 1
- 1 x Wind noise suppression (foam ball)
- 1 x USB interface cable
- 1 x Software is a free download
- 1 x Power adapter
- 1 x Suitcase
- 1 x User manual
- 1 x Outdoor Noise Level Meter Kit PCE-4xx-EKIT
- 1 x Waterproof PELI transport case
- 1 x Wind and rain protection for microphone of the PCE-4xx series
- 1 x Charger for internal batteries
- 2 x 12 V lead gel batteries
- 1 x Tripod
- 1 x 2 m / 6ft 6" microphone cable
- 1 x Connection cable for power supply (optional Schuko or US connection)
- 1 x ISO Calibration Certificate
- Specification Sheet
- Manuals/Tutorials
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
Measuring range | 22 ... 136 dbA |
Accuracy | Class 1 |
Frequency range | 3 Hz ... 20 kHz |
Standards | GB/T3785.1-2010 |
Frequency analysis | Octave band filter: 8 Hz ... 16 kHz |
Microphone | 1/2" measurement microphone class 1 |
Data-logging interval | 1 s ... 24 h (adjustable) |
Measuring functions | LXY(SPL), LXeq, LXYSD, LXSEL, LXE, LXYmax, LXYmin, LXPeak, LXN. |
X = Frequency weighting: A, B, C, Z; | |
24 hour measurement | Automatic measurement with data storage |
Frequency weightings | A, B, C, Z |
Time weightings | Fast (F), Slow (S), Pulse(I), Peak |
Inherent noise | Microphone: 19 db(A), 25 db(C), 31 db(Z) |
AD converter | 24 bit |
Sample rate | Standard: 48 kHz |
Measuring display | Numerical |
Display | 160 x 160 pixel LCD with backlight |
Memory | 4 GB Micro SD card |
Interface | USB (Memory readable via software or directly as mass storage) |
Voltage output | AC 5V RMS |
Alarm | Adjustable |
Power supply | 4 x 1.5 V AA batteries |
Operating time battery mode | min. 10 h |
Dimensions | 70 x 300 x 36 mm / 2.76 x 11.81 x 1.42" (W x H x D) |
Weight | approx. 620 g / 1.4 lbs incl. batteries |
| Transport case | PELI 1510 with rollers with grid foam |
| Protection | IP65 |
| Outdoor Noise Level Meter Kit | |
| Connections on the suitcase | Microphone: TNC 12 V charging voltage: XLR 110 V / 230 V charging voltage: PowerCon TRU |
| Charger | Victron Blue Smart 12 V / 4 A IP65 |
| Internal batteries | 2 x 12 V / 12 Ah lead gel |
| Battery running time | min. 10 days |
| Power supply | with charger EU Version: 180 ... 265 V AC with charger US Version: 100 ... 130 V AC battery operation: 2 x 12 V / 12 Ah |
| Cable length | Microphone cable: 2 m / 6 ft 6" with TNC connector Power supply: 2 m / 6 ft 6" with PowerCon TRU |
| Dimensions | 56 x 35 x 23 cm / 2.2 x 1.3 x 0.9" |
| Weight | ca. 14 kg / 30 lb 13 oz with batteries ca. 8 kg / 17 lb 10 oz without batteries |
