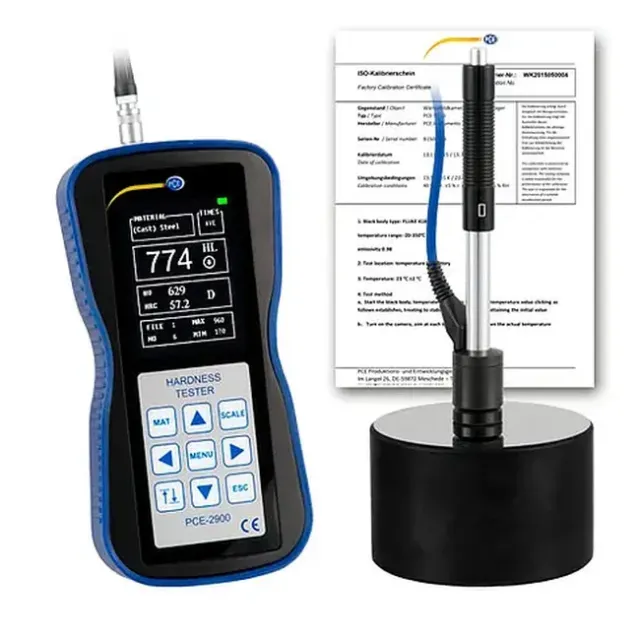

PCE Instruments PCE-2900-ICA Durometer, USB and WiFi for Data Transmission incl. ISO Calibration Certificate

Overview

This modern and dynamic durometer, the PCE Instruments PCE-2900 Portable Hardness Tester, is engineered for precise and versatile hardness measurements on a wide range of metallic materials. It directly addresses the critical need for rapid, non-destructive surface hardness testing with advanced data management capabilities in demanding industrial environments. Utilizing the Leeb rebound principle, the PCE-2900 measures hardness in multiple common scales including Vickers (HV), Rockwell (HRC, HRB), Brinell (HB), Leeb (HLD), and Shore (HS), and also indicates tensile strength. Featuring a large, bright backlit color LCD touch-screen and illuminated buttons for optimal visibility in any lighting condition, this hardness tester offers exceptional user experience. With an internal memory for 6 x 100 measurement sets, and both USB and WiFi interfaces for seamless data transmission to a PC, the PCE-2900 provides metallurgists, quality assurance managers, and field technicians with an indispensable tool for efficient, accurate testing, comprehensive data documentation, and analysis of metallic materials in any measurement position.

Key Features

• USB and WiFi Data Transmission: Enables seamless and wireless transfer of measurement data to a PC for efficient analysis, reporting, and archival.
• Multi-Scale Hardness Measurement: Determines hardness in Vickers (HV), Rockwell (HRC, HRB), Brinell (HB), Leeb (HLD), Shore (HS), and indicates tensile strength.
• Large, Bright Color LCD Touch-Screen: Provides a modern, intuitive interface with excellent readability, even in low light conditions.
• Versatile Measurement Positions: Capable of measuring hardness in every position, offering flexibility for diverse applications and difficult-to-access areas.
• Internal Memory for Data Documentation: Stores 6 x 100 measurement sets internally, allowing for comprehensive data collection and later analysis.
• Long Battery Life: Powered by commercially available 1.5V AA batteries with approximately 50 hours of operation, ensuring extended fieldwork.

Specifications

Product Name: PCE Instruments PCE-2900 Durometer, Portable Hardness Tester

Measuring Principle: Leeb Rebound Principle (Dynamic Hardness Test)

Hardness Scales: HV, HRC, HRB, HB, HLD, HS

Additional Measurement: Tensile (N/mm², implied)

Display: Large, bright color LCD touch-screen (backlit)

Buttons: Illuminated

Data Memory: 6 x 100 measurement sets (internal)

Data Transmission: USB and WiFi

Impact Device: Type D (external probe with cable)

Measurement Position: Every position possible

Power: 2 x 1.5V AA batteries

Battery Life: Approx. 50 hours

Primary Application: Metallic materials

Design: Portable

Country of Origin: N/A

Shipping Wt: N/A

Temperature Max. Service: N/A

Applications

Ideal for quality control engineers, metallurgists, manufacturing technicians, and field inspectors requiring highly precise and comprehensive hardness testing of metallic materials. This durometer is essential for verifying heat treatment effectiveness, assessing material consistency in production lines, performing incoming and outgoing material inspections, and conducting rapid on-site evaluations of large or installed metallic components in industries such as automotive, aerospace, heavy machinery manufacturing, and metal fabrication. Its data transmission capabilities are particularly valuable for integrating test results directly into quality management systems and generating detailed reports.

Performance and Characteristics

The PCE Instruments PCE-2900 Durometer delivers high-precision hardness measurements for metallic materials across a wide range, ensuring reliable data for critical quality control. Its modern design features a bright, backlit color LCD touch-screen and illuminated buttons, providing superior readability and intuitive navigation even in challenging industrial environments. The ability to measure in every position enhances its versatility, allowing for accurate assessments on complex geometries. Crucially, the integrated USB and WiFi interfaces offer unparalleled flexibility for data transmission, enabling seamless integration into digital workflows for analysis, reporting, and archival. The internal memory for 600 measurement sets ensures robust data logging, while the long battery life supports extended fieldwork without interruption, making it a highly efficient and indispensable tool for demanding professional applications.

Additional Information

The PCE-2900 Portable Hardness Tester represents a significant advancement in metal hardness testing, combining accuracy with modern connectivity and user-friendliness. Its ability to perform dynamic measurements using the Leeb rebound principle ensures non-destructive yet precise results. The comprehensive range of hardness scales and tensile strength indication provides a complete material characterization solution. With its focus on efficient data management via USB and WiFi, this device streamlines quality assurance processes, making it a valuable investment for professionals committed to precise metallic material assessment and seamless integration of test data into their systems.

Kit Contents

• 1 x Durometer PCE-2900
• 1 x Impactor D
• 1 x Test block
• 2 x 1.5V AA batteries
• 1 x User manual
• 1 x Carry case
• 1 x ISO Calibration Certificate

Ensure precise metal quality control with advanced data connectivity. Shop the PCE Instruments PCE-2900 Durometer today!
