PCE Instruments PCE-VT 3800 Handheld Vibration Meter, up to 399.9 m/s2

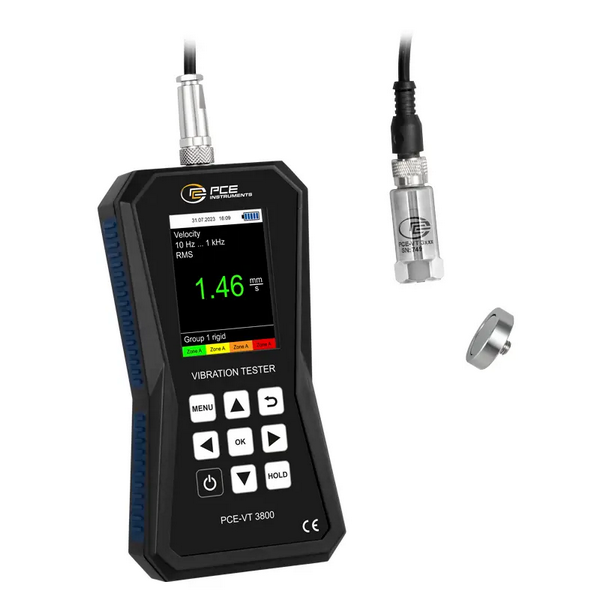

PCE Instruments PCE-VT 3800 Handheld Vibration Meter

Experience precise and efficient vibration analysis with the PCE-VT 3800 Handheld Vibration Meter. This versatile device offers a wide measuring range and advanced features like data logging and ISO 10816-3 evaluation. Ideal for maintenance, repair, and quality control in industrial settings. Upgrade your vibration measurement capabilities today!

Features:

• Wide Measuring Range: Measures vibration displacement, velocity, and acceleration up to 399.9 m/s².
• Multiple Measurement Parameters: Provides RMS, peak, peak-to-peak, and crest factor values.
• Data Logger Function: Records measurements for later analysis.
• Automatic ISO 10816-3 Evaluation: Assesses machine vibration condition with a good/bad evaluation.
• External Vibration Sensor: Allows for flexible and precise measurements.
• Rechargeable Battery: Offers up to 20 hours of operation on a single charge.
• Large LC Display: 2.48" display for clear and easy data visualization.
• PC Connectivity: Connects to a PC via micro USB for data analysis and firmware updates.
• Internal Memory: Stores measured values for later retrieval.
• Software Included: Provides tools for data analysis, graphic display, and CSV export.

Specifications:

• Measurement Range:
  • Displacement: 0 ... 3.999 mm
  • Velocity: 0 ... 399.9 mm/s
  • Acceleration: 0 ... 399.9 m/s²
• Accuracy: ± 5 % of measured value + 2 digits
• Frequency Range: 10 Hz ... 1 kHz
• Display: 2.48" LC display
• Battery: Rechargeable LiPo battery, 2500 mAh
• Battery Life: Up to 20 hours
• Operating Temperature: 32 ... 122 °F (0 ... 50 °C)
• Dimensions: 7.87 x 3.15 x 1.57" (200 x 80 x 40 mm)
• Weight: 1.1 lbs (500 g)

Applications:

• Predictive Maintenance: Identify potential machine failures before they occur.
• Quality Control: Ensure machinery operates within specified vibration limits.
• Machine Diagnostics: Troubleshoot vibration-related issues.
• Research and Development: Analyze vibration characteristics of various components.

Kit Content:

• 1 x PCE-VT 3800 Vibration Meter
• 1 x External Vibration Sensor
• 1 x Spiral Cable
• 1 x Magnetic Adapter
• 1 x Micro USB Cable
• 1 x USB Stick with Software and Instructions
• 1 x Quick Start Guide
• 1 x Service Bag

Performance:

• Accurate and Reliable: Provides precise vibration measurements for reliable analysis.
• Versatile: Measures a wide range of vibration parameters.
• User-Friendly: Intuitive interface and easy-to-use software.

Characteristics:

• Portable: Handheld design for easy mobility.
• Durable: Built to withstand industrial environments.
• Comprehensive: Includes all necessary accessories for immediate use.

Experience the power of accurate vibration analysis with the PCE-VT 3800. Upgrade your maintenance and diagnostics capabilities today!
