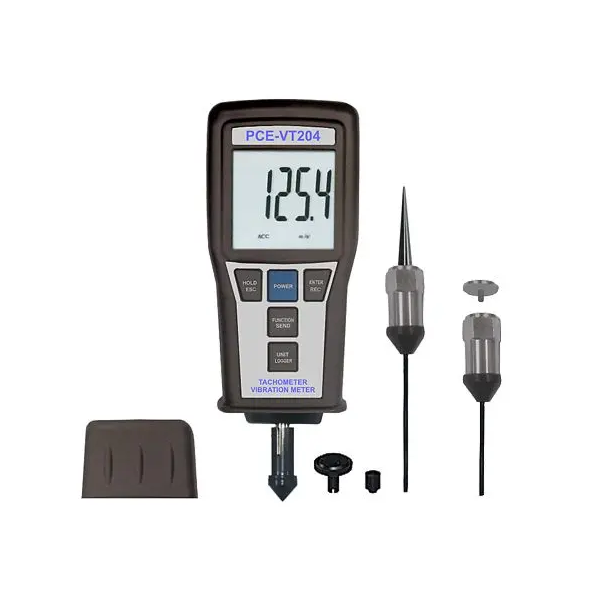

PCE Instruments PCE-VT 204 Multifunction Vibration Analyzer

PCE-VT 204 Multifunction Handheld TachometerFor contact (mechanical) and noncontact (optical) rotation measurements as well as 3-axis vibration measurements

The PCE-VT 204 is a multifunction handheld tachometer with the ability to accurately measure both rotation and vibration. An ideal tool for the testing and inspection of machine parts and components such as motors, transmissions, gears, gear boxes and wheels, this multi-purpose device measures revolutions per minute (RPMs) as well as three-axis vibration, i.e., velocity or speed, displacement and acceleration.The handheld tachometer sensor can be set flat, equipped with a magnet or combined with the included fastening screw to make contact with a surface during vibration measurement. Internal frequency filters eliminate the effects of background noise, allowing the device to detect specific vibrations.

Features:

• Measures vibration speed or velocity, acceleration and displacement as well as revolutions per minute (RPMs)
• Functions as a both a contact (mechanical) and a noncontact (optical) rotation tachometer
• Boasts an internal memory for storing up to 1000 readings
• Easy-to-read LCD screen
• Low-battery indicator
• RS-232 port
• Min / max and data hold
• Features a needle sensor, flat sensor, adjustable magnetic base, mechanical wheel sensor and built-in optical sensor

Includes:

• 1 x PCE-VT 204 multifunction handheld tachometer
• 1 x Flat sensor with 1.5 m / .04 in cable
• 1 x 70 mm / 2.8 in needle sensor
• 1 x Magnetic base
• 1 x Mechanical wheel sensor
• 1 x 600 mm / 23 in of reflective tape
• 1 x Carrying case
• 4 x Batteries
• 1 x User manual
