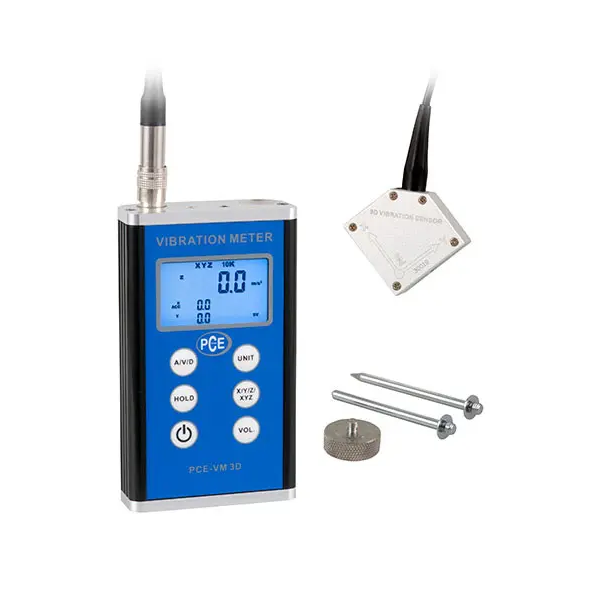

PCE Instruments PCE-VM 3D Vibration Analyzer, Frequency Range from 10 Hz to 10 kHz.
- Part #:PCE-VM 3D
- Condition:Brand New
- List Price: $1,320.00
- $1,069.80 / KitYou Save: 18.95%
%20Copyright%202023%20Fonticons,%20Inc.%20--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048V96H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20272c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2048c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20240c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2016c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20208c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64V416c0%2053%2043%2096%2096%2096s96-43%2096-96H384c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V288%20256%20237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48H112zM544%20237.3V256H416V160h50.7L544%20237.3zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96zm272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201%20-96%200z'/%3e%3c/svg%3e)
Free Shipping
Vibration Meter / Vibration Tester for machines and systems / analog interface for headphones / with different sensor tips
The Vibration Meter / Vibration Tester enables a quick and very simple measurement of the acceleration, the vibration path and the vibration speed to test vibrations on machines and components. The PCE-VM 3D vibration measuring device can measure vibrations in three directions, i.e. on the x, y and z axes. Defects or excessive imbalances can be precisely determined with the vibration measuring device. Various measuring sensors are optionally available for this Vibration Meter / Vibration Tester.
The LCD display is backlit and easy to read. With a weight of only 305 g, the vibration measuring device is an suitable companion at every workplace. Areas of application are, for example, large or small companies that have to measure the vibrations or imbalances on the motors of their machines. The detection of errors, defects or excessive imbalances can significantly extend the service life of a machine. The Vibration Meter / Vibration Tester can also be calibrated according to ISO. Check the vibration behavior of your machines with this vibration measuring device and prevent major damage.
Features:
- Frequency range: 10 Hz ... 10 kHz
- Measurement of acceleration, speed and displacement
- Large backlit LCD display
- Three display options
- Common mode
- Status bar in the display
- Alarm function
Includes:
- 1 x Vibration Meter / Vibration Tester PCE-VM 3D
- 1 x Cable (1.5 m)
- 1 x Magnetic sensor
- 1 x Measuring sensor x-, y-, z-axis
- 2 x Measuring tip
- 2 x AA 1.5 V batteries
- 1 x Manual and case
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov- You May Also Like
- Your Recently Viewed
- Reviews
| Measuring ranges | |
| Vibration acceleration | 0.1 m/s² ... 400.0 m/s² (Peak) / 0.3 ft/s² ... 1312.3 ft/s² (Peak) (0 ... 40 g / 0.09 lb force) |
| Vibration velocity | 0.01 ... 400.0 mm/s / 4.0 x 10-4 in/s ... 15.7 in/s |
| Vibration amplitude | 0.001 mm ... 4.000 mm (Peak-Peak) / 4.0 x 10-5 in ... 0.16 in (Peak-Peak) |
| Range of Frequencies | |
| Vibration velocity | 10 Hz ... 10 kHz |
| Vibration acceleration | 10 Hz ... 10 kHz |
| Vibration amplitude | 10 Hz ... 10 kHz |
| General Specifications | |
| Resolution | 0.25 Hz |
| Accuracy | ± 5 % |
| Data interface | RS-232C |
| Batteries | 2 x AA 1.5 V batteries |
| Environmental conditions | 0 ... +50 °C / 32 ... 122° F / < 95 % r.H. |
| Dimensions device | 130 x 70 x 30 mm / 5.1 x 2.8 x 1.2 in |
| Dimensions sensor | 40 x 40 x 22 mm / 1.5 x 1.5 x 0.8 in |
| Weight | 305 g / 0.67 lbs (without batteries) |
