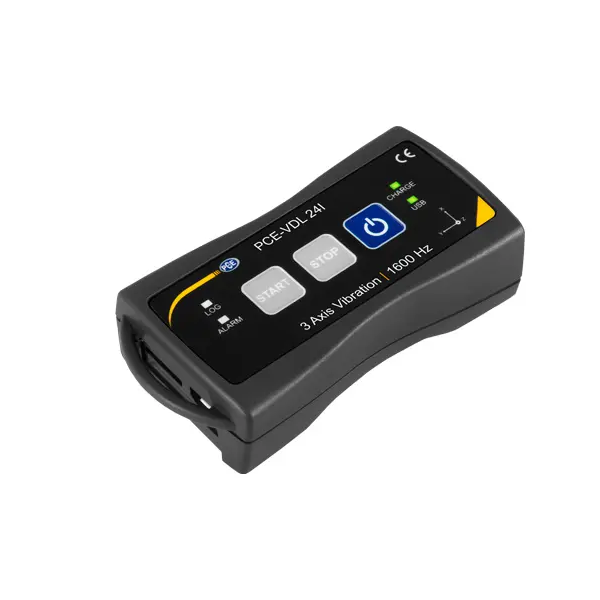

PCE Instruments PCE-VDL 24I Vibration Analyzer, 3- Axis acceleration up to 1600 Hz
- Part #:PCE-VDL 24I
- Condition:Brand New
- List Price: $405.00
- $343.59 / EachYou Save: 15.16%
%20Copyright%202023%20Fonticons,%20Inc.%20--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048V96H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20272c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2048c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20240c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2016c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20208c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64V416c0%2053%2043%2096%2096%2096s96-43%2096-96H384c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V288%20256%20237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48H112zM544%20237.3V256H416V160h50.7L544%20237.3zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96zm272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201%20-96%200z'/%3e%3c/svg%3e)
Free Shipping
3-Axis Accelerometer Data Logger with 1600Hz Sampling Rate
This 3-axis data logger is supplied with the acceleration sensor with a sampling rate of 1600 Hz. The sensor measures the acceleration currently acting on it (3 axes), like upon shock or during vibration. The measurements take place in predetermined (selectable) time intervals. The measured data recorded with the internally installed 3-axis accelerometer are stored in the datalogger on a 4 GB memory card. Thus, the data logger is ideally suited to determine the acceleration during: fault diagnosis / stress test of components (improve the quality of your products), machine inspection, shock measurements and, in general, in the preventive maintenance. Use the data logger for acceleration as a cost-effective tool for avoiding machine breakdown and downtime. - It is very difficult to make up for the once lost production time -.
Features:
- 3- Axis acceleration up to 1600 Hz
- 32 GB SD memory card
- Small design: 86.8 x 44.1 x 22.2 mm / 3.4 x 1.7 x 0.87 in
- Made in Germany
Includes:
- 1x 3-Axis Data logger PCE-VDL 24I
- 1x Data cable USB - USB Micro
- 1x 32 GB SD memory card
- 1x SD card ejector tool
- 1x USB pen drive with PC software and user manual
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov- You May Also Like
- Your Recently Viewed
- Reviews
| 3-Axis Acceleration Measured Variable | |
| Measuring range | ±16 g |
| Accuracy | ±0.24 g |
| Measurement / storage rate | 1600 Hz ... 1 Hz |
| General Technical Data of the 3-Axis Accelerometer | |
Storage capacity | 2.5 million measured values per measurement, 3.2 billion measured values with the enclosed 32 GB microSD memory card |
Button | Start / stop of a measurement; On or off switch of the data logger |
LED | Log: operating status Alarm: alarm display Charge: charge level indicator USB: Status of the connection to the PC |
Power supply | Integrated Li-Ion battery 3.7 V / 500 mAh The battery is charged via the USB port |
Integrated sensors | 3-axis acceleration |
Interface | USB |
PC Software | Free setup and evaluation software (Windows XP / Vista / 7/8/10 32-bit / 64-bit) for recording and evaluating the data. |
Operating conditions | Temperature -20 ... +65 °C |
Storage conditions | Temperature +5 ... +45 °C (ideal storage conditions for battery) 10 ... 95% relative humidity, not condensing |
Standards | The PCE-VDL 24I complies with the EU RoHS / WEEE directive. |
Weight | ca. 60 g |
Dimensions (L x W x H) | 87 x 44 x 23 mm |
