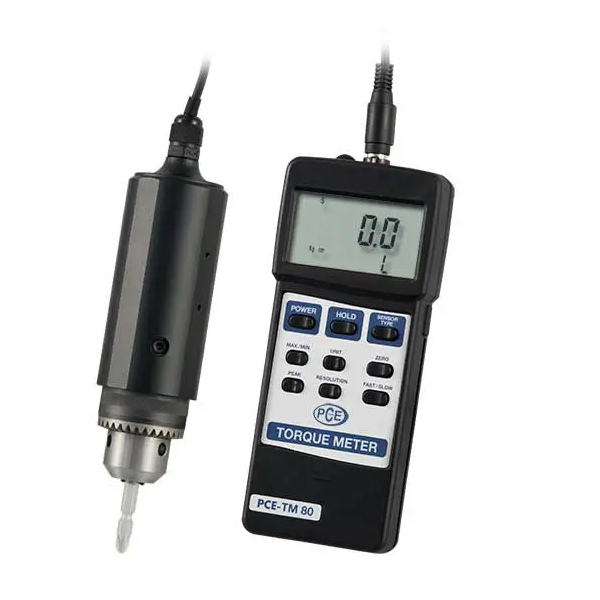

PCE Instruments PCE-TM 80 Torque Meter, Range 0 to 147 Ncm

Digital Torque Meter PCE-TM 80meter to determine the "torque moment" up to 147 Ncm / PC interface and software (optional) / Peak-Hold function / external torque sensor / selection of diverse units / selection of resolution

The Digital Torque Meter PCE-TM 80 with external sensor to measure the static or startup torque moment in screws, components, switches, transmission shafts, etc. The Digital Torque Meter PCE-TM 80 is an affordable solution to easily perform static torque measurements. The Digital Torque Meter PCE-TM 80 operates by rotatory movements to the left and right and it is ideal for the torque moment. The Digital Torque Meter PCE-TM 80 offers the option to enlarge the 1 digit resolution. The Digital Torque Meter PCE-TM 80 shows the Peak value as well as the max. and min. values. Use of the optional software allows real-time data can be continuously transferred to a PC or portable computer. The Digital Torque Meter PCE-TM 80 is very robust to ensure both long duration and reliability.

Features:

• Range 0 ... 147 Ncm
• Selection of 3 units (Ncm, kgfcm, lbfin)
• Digital output RS-232
• External rotational torque sensor
• Optional software
• Selection of the resolution - Automatic shut-off
• Peak-Hold function
• ISO Calibration certificate (optional)

Includes:

• 1 x PCE-TM 80 torque meter
• 1 x external torque sensor
• 1 x chuck key
• 1 x plastic carrying case
• 1 x user manual
