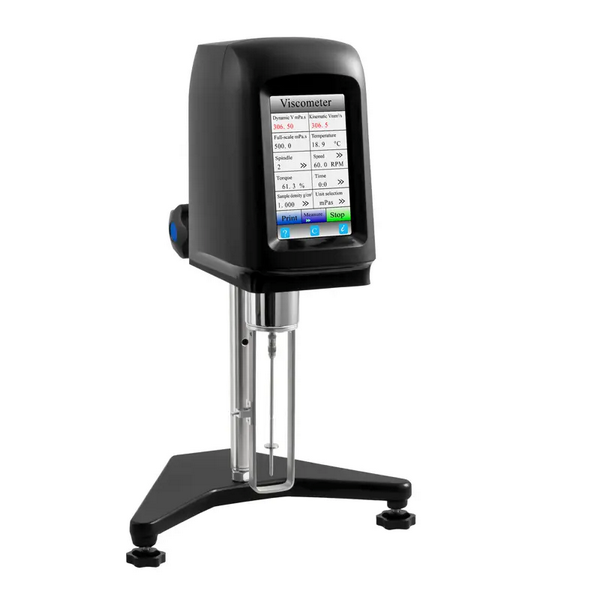

PCE Instruments PCE-RVI 10 Viscometer, with Touchscreen

Precise viscometer with 5" touchscreen / temperature sensor / laboratory stand / measuring range up to 2,000,000 cP / 4 different attachable spindles / for measuring the viscosity of liquids / RS232 interface

The viscometer measures by means of the mechanical resistance of any liquid that acts in the opposite direction to the rotational movement of a spindle. This results in a torque that is recognized by the viscometer and converted into a viscosity value. With an accuracy of ± 1.0%, the rotary viscometer is a very precise measuring device despite the high measuring range of 10… 2,000,000 cP or mPa*s. With the immersion resistance temperature sensor on the viscometer, the temperatures of the liquids to be tested can be measured between 0 and 100 °C or 0 and 212 °F.

Please note there is also a Low Viscosity adaptor (PCE-RVI 10-LVA) if you require measurements of material with viscosity between 1 and 10 mPa.

Features:

• Viscosity measuring range: 10 ... 2,000,000 cP (various units can be displayed)
• Accuracy: ± 1% of full scale (with Newtonian liquid)
• Rotation speeds: 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 rpm
• 5" touch screen with simple interface
• Immersion temperature sensor up to 100 °C or 212 °F
• Spindle set consisting of L1, L2, L3, L4
• Height adjustable approx. 25 cm
• Built-in bubble level for leveling
• Optional L0 spindle down to 1 cP

Includes:

• 1 x Viscometer PCE-RVI 10
• 1 x Temperature sensor
• 1 x Double open-end wrench
• 1 x Spindle set consisting of spindles L1, L2, L3, L4
• 1 x Hard transport case
• 1 x Power supply
• 1 x Instruction manual
