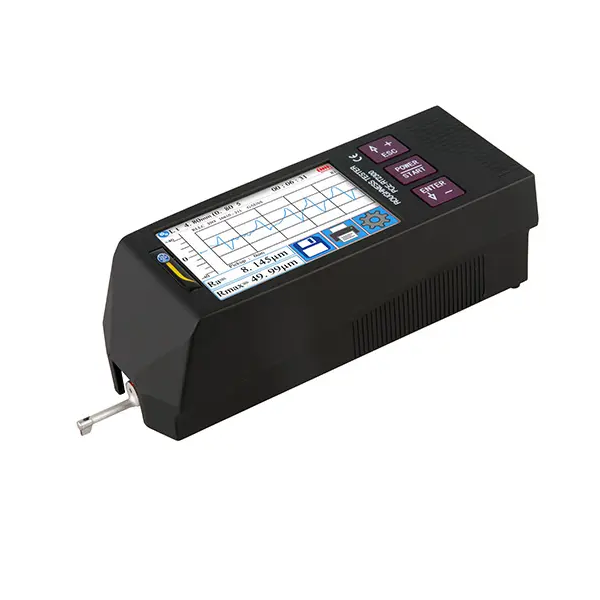

PCE Instruments PCE-RT 2300 Roughness Tester with External Probe
- Part #:PCE-RT 2300
- Condition:Brand New
- List Price: $3,079.00
- $2,573.00 / KitYou Save: 16.43%
%20Copyright%202023%20Fonticons,%20Inc.%20--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048V96H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20272c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2048c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20240c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2016c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20208c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64V416c0%2053%2043%2096%2096%2096s96-43%2096-96H384c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V288%20256%20237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48H112zM544%20237.3V256H416V160h50.7L544%20237.3zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96zm272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201%20-96%200z'/%3e%3c/svg%3e)
Free Shipping
- Technical details
- Description
- You May Also Like
- Your Recently Viewed Items
- Reviews
Technical details
| Measuring range | Rz: 0.02 ฮผm ... 320 ฮผm; Ra, Rq: 0.005 ฮผm ... 32 ฮผm, Rz = 320ยตm (-160ยตm~160ยตm) / 12600ฮผin (-6300ฮผin~+6300ฮผin) |
| Accuracy | ยฑ 10% |
| Repeatability | ยฑ 6% |
| Resolution | ยฑ 20 ฮผm: 0.01 ฮผm ยฑ 40 ฮผm: 0.02 ฮผm ยฑ 80 ฮผm: 0.04 ฮผm |
| Measurement Parameters | Ra, Rz, Rq, Rt, Rc, Rp, Rv, R3z, R3y, Rz (JIS), Ry, Rs, Rsk, Rku, Rmax, Rsm, Rmr, RPc, Rk, Rpk, Rvk, Mr1, Mr2 |
| Measurement Standards | ISO4287, ANSI b46.1, DIN4768, JISb601 |
| Graphic | Primary profile (roughness + waviness) Roughness profile (roughness) Loading curves |
| Measuring filter | RC, PC-RC, Gaus, DP |
| Measuring section (Cut Off) | 0.25 mm, 0.8 mm, 2.5 mm |
| Measuring length | 1 ... 5* measuring path Max. 17.5 mm (including pre- and post-run) |
| Sensor | Diamond probe tip 90ยฐ cone angle 5 ฮผm |
| Contact force sensor | <4 mN |
| Feed rate | 0.25 mm: 0.135 mm / s 0.8 mm: 0.5 mm / s 2.5 mm: 1 mm / s |
| Display | 3.5" LCD screen |
| Power supply | 3.7V Li-Ion Battery 5V / 800-mA USB Power Adapter |
| Operating time | 50 h |
| Operating conditions | -20 ... 40ยฐC / -4 ... 104ยฐF, max. 90% rh |
| Storage conditions | -40 ... 60ยฐC / -40 ... 140ยฐF, max. 90% rh |
| Dimensions | Main unit: 158 x 55 x 52 mm / 6.2 x 2.2 x 2 in Motor unit: 115 x 23 x 27 mm / 4.5 x 1 x 1.1 in |
| Weight | About 500 g / 1.1 lbs |
