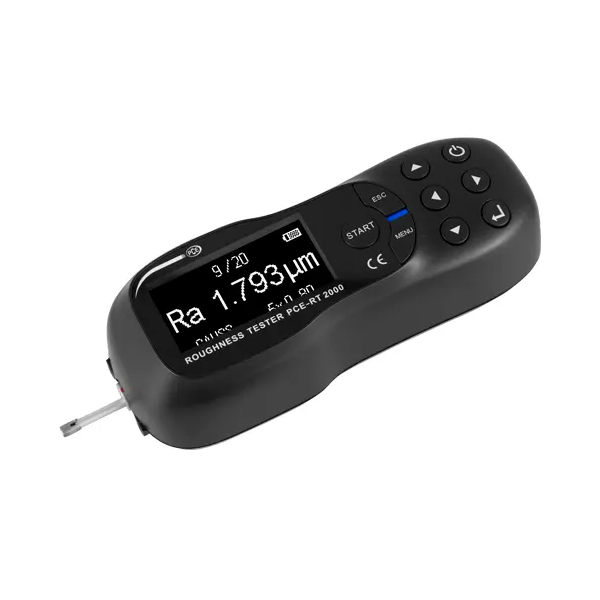

PCE Instruments PCE-RT 2000BT Material Roughness Tester, with Bluetooth-Function

  • Part #:PCE-RT 2000BT
  • Condition:Brand New
0 Reviews Write a Review
  • List Price: $2,830.00
    • $2,285.90 / Each
      You Save: 19.23%
See product details
  • Technical details
  • Description
  • You May Also Like
  • Your Recently Viewed Items
  • Reviews
Technical details
Measurement parametersRa, Rq, Rsm, Rsk, Rz, Rt, Rp, Rv, Rc
Measuring rangesRa, Rq, Rc: 0.005 ฮผm ... 16 ฮผm Rz, Rt, Rp, Rv: 0.02 ฮผm ... 200 ฮผm Rsm: 5 ฮผm ... 1000 ฮผm Rsk: -1 ... 1
Radius stylus tip5 ฮผm
Material stylus tipDiamond, 90ยฐ angled
Max. recommended force for static measurement 4 mN (0.4 gf)
Measuring principleInductive
Radius longitudinal guide bar45 mm / 1.8 in
StandardsANSIB46.1/ASMEB46.1 (DIN EN ISO 4287)
Maximum driving distance15 mm / 0.6 in
Cut-off wavelength (cut off)0.135 mm/s at cut-off wavelength: 0.25 mm 0.5 mm/s at cut-off wavelength: 0.8 mm 1 mm/s at cut-off wavelength: 2.5 mm Reversing speed: 1 mm/s
Measurement accuracy<ยฑ 10%
Repeatability<6%
DisplayOLED
Unitsฮผm / ฮผinch (switchable)
InterfaceMicro USB, Bluetooth
Power supplyRechargeable Li-ion battery
