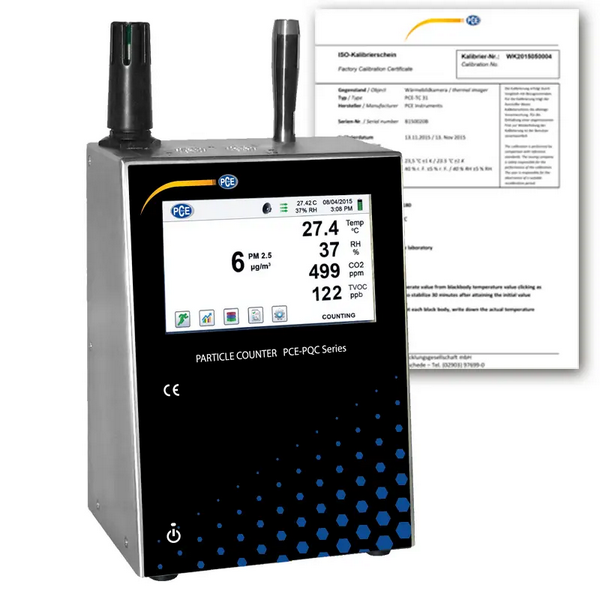

PCE Instruments PCE-PQC 23US Particle Counter, 0.3 to 25 um
- Part #:PCE-PQC 23US
- Condition:Brand New
- List Price: $8,470.00
- $7,724.00 / EachYou Save: 8.81%
%20Copyright%202023%20Fonticons,%20Inc.%20--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048V96H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20272c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2048c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20240c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2016c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20208c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64V416c0%2053%2043%2096%2096%2096s96-43%2096-96H384c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V288%20256%20237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48H112zM544%20237.3V256H416V160h50.7L544%20237.3zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96zm272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201%20-96%200z'/%3e%3c/svg%3e)
Free Shipping
- Technical details
- Description
- You May Also Like
- Your Recently Viewed Items
- Reviews
Technical details
| Measuring range | 0.3 ... 25 ฮผm |
| Measuring channel sizes | Factory calibrated at 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 ฮผm |
| Counting efficiency | 50% at 0.3 ฮผm, 100% at > 0.45 ฮผm according to JIS |
| Particle mass display | PM0.5, PM1.0, PM2.5, PM5.0, PM10 and TPM |
| Flow | 2.83 l / min (0.1 ft3 / min) |
| Random loss | 5% at 4,000,000 particles / ftยณ |
| Battery | 10 h |
| Light source | Long-life laser diode |
| Zero count | <1 count / 5 min (<2 particles / ft3) according to ISO 21501-4 and JIS |
| Counting modes | Automatic, manual, real-time, cumulative / |
| differential, mass concentration | |
| Alarms | 1 ... 9999999 counts, adjustable |
| Calibration | Traceable to NIST |
| Display | 4.3" WQVGA color touch display, 480x272 px |
| Printer | External thermal printer |
| Aspiration | Internal pump with automatic |
| flow control | |
| Air outlet | Internal HEPA filter |
| Battery pack | Replaceable Li-Ion battery |
| Charging time | About 4 hours |
| Reports | ISO 14644-1 |
| EU GMP Annex 1 | |
| FS 209E | |
| Configuration | Memory for 50 custom configurations |
| Standards | ISO 21501-4 and JIS B9921 |
| Dimensions | 13.3 x 10.5 x 21 cm |
| Weight | 1.8 kg |
| Storage | 45000 data sets (ring memory) consisting of |
| Particle counting, temp. and humidity, CO2, (PID), | |
| Sample locations | Places and times up to 1000 places can be deposited |
| Sample duration | 1 s ... 99 h adjustable |
| Power supply | 110 ... 240V AC 50/60 Hz |
| Operating conditions | 5 ... 40ยฐC / 41 ... 104ยฐF |
| Up to 95% RH not condensing | |
| Storage conditions | 0 ... 50ยฐC / 32 ... 122ยฐF |
| Up to 98% RH not condensing | |
| CO2 sensor | |
| Measuring range | 0 ... 5000 ppm |
| Resolution | 1 ppm |
| Accuracy | ยฑ 1% of measuring range |
| PID sensor | |
| Measuring range | 0 ... 50 ppm |
| Resolution | 0.001 ppm |
| Accuracy | ยฑ 1.5% |
| Minimum concentration | 5 ppb |
| Response time | < 3 sec. |
| Temp. / Humidity sensor intern | 0 ... 50ยฐC (32 ... 122ยฐF), 15 ... 90% rh |
| Resolution | 0.5ยฐC / ยฑ 0.9ยฐF |
| Accuracy | ยฑ 0.5ยฐC / ยฑ 0.9ยฐF, ยฑ 2% RH |
| Interface | Ethernet, USB |
| Optional interfaces | Wifi 802.11 b / g, RS485 or RS232 |
| Number of measuring channels | 6 |
