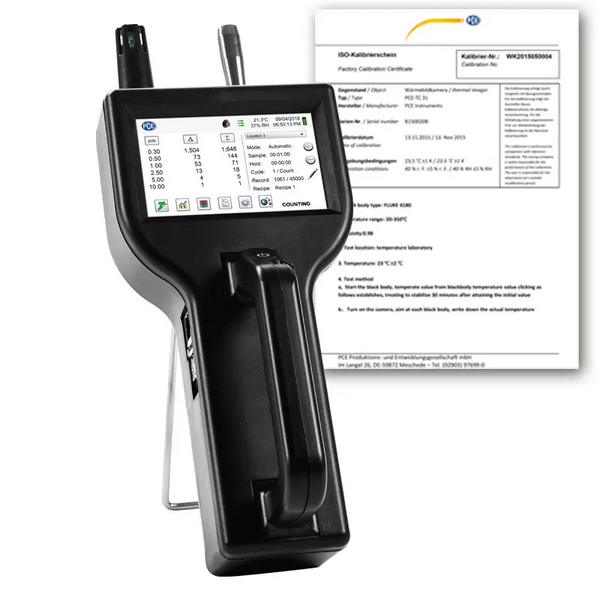

PCE Instruments PCE-PQC 10US Particle Counter, 0.3 to 25 um

  • Part #:PCE-PQC 10US
  • Condition:Brand New
0 Reviews Write a Review
  • List Price: $5,196.00
    • $4,745.00 / Each
      You Save: 8.68%
  • Free Shipping logoFree Shipping
See product details
  • Technical details
  • Description
  • You May Also Like
  • Your Recently Viewed Items
  • Reviews
Technical details
Measuring range0.3 ... 25 ฮผm
Measuring channel sizesFactory calibrated at 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 ฮผm
Counting efficiency50% at 0.3 ฮผm 100% at > 0.45 ฮผm according to JIS

Flow2.83 l / min (0.1 ft3 / min)
Random loss5% at 4,000,000 particles / ftยณ
Battery10 h
Light sourceLong-life laser diode
Zero count< 1 count / 5 min (< 2 particles / ftยณ)
 According to ISO 21501-4 and JIS
Counting modesAutomatic, manual, real-time, cumulative /
 Differential, mass concentration
Alarms1 ... 9999999 counts, adjustable
CalibrationTraceable to NIST
Display4.3 "WQVGA color touch display, 480x272 px
PrinterExternal thermal printer
AspirationInternal pump with automatic
 Flow control
Air outletInternal HEPA filter
Battery packReplaceable Li-Ion battery
Charging timeAbout 4 hours
ReportsISO 14644-1
 EU GMP Annex 1
 FS 209E
ConfigurationMemory for 50 custom configurations
StandardsISO 21501-4 and JIS B9921
Dimensions25.4 x 12.9 x 11.4 cm
Weight1.0 kg
Storage45000 data sets (ring memory) consisting of
 Particle count, temp and humidity, locations and times
Sample locationsUp to 1000 locations can be stored
Samples duration1 s ... 99 h adjustable
Power supply110 ... 240V AC 50/60 Hz
Operating conditions5 ... 40ยฐC / 41 ... 104ยฐF
 Up to 95% RH not condensing
Storage conditions0 ... 50ยฐC / 32 ... 122ยฐF
 Up to 98% RH not condensing

InterfaceUSB
Optional interfacesEthernet, WiFi 802.11 b / g, RS485 or RS232
Number of measuring channels          6
