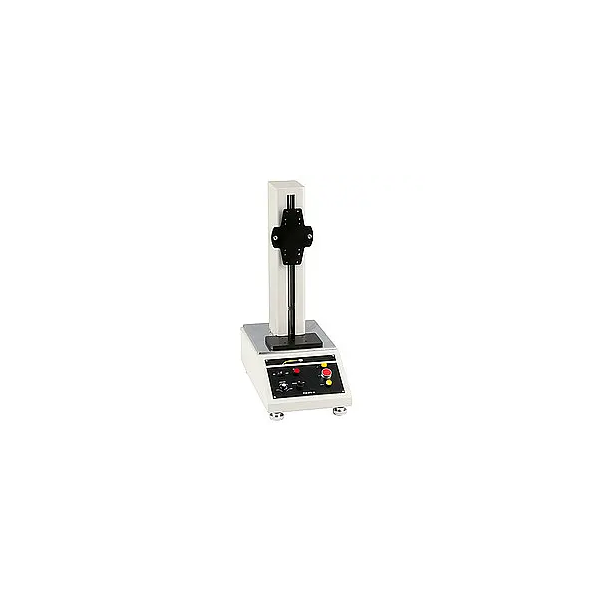

PCE Instruments PCE-MTS50 Universal Testing Machine, Up to 500 N

PCE-MTS50 Test Stand for Force GaugeUniversal testing machine (UTM) for use with PCE-series force gaugesMeasures compressive and tensile forces up to 500 N / 50 kg

PCE-MTS50 is a motorized material test stand for use with all PCE-series force gauges. (Note: An adapter plate may be required for mounting the force gauge to the test stand - see accessories for details.) The motorized material test stand offers enhanced control and stability during force testing. It also helps to ensure the accuracy and repeatability of vertical tension and compression force test results.

Use of the motorized material test stand requires an AC power connection. The feed rate is adjustable between 50 ... 500 mm / min using the controls on the front panel. The traverse / distance also can be adjusted.

Features:

• Compatible with all PCE-series force gauges
• Maximum force measurement: 500 N / 50 kg
• Automatic or manual (push-button) operation
• Adjustable feed speed: 50 ... 500 mm / min
• AC power connection (110 V or 220 V)
• Adjustable traverse / distance
• Heavy-duty steel design

Includes:

• 1 x PCE-MTS50 test stand for force gauge
• 1 x User manual
