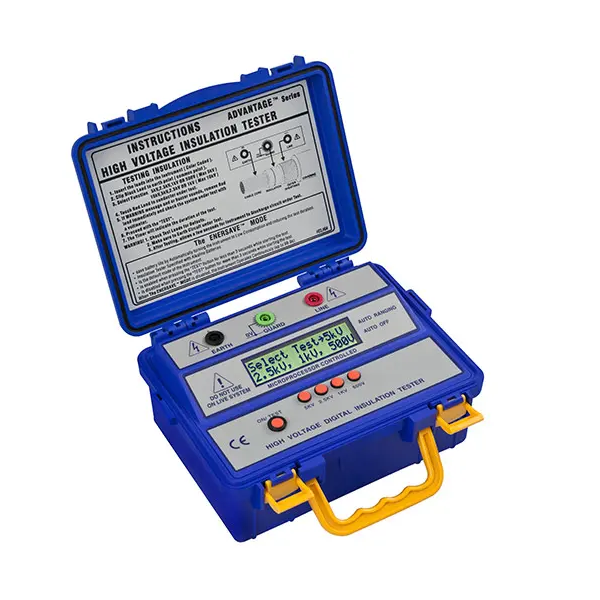

PCE Instruments PCE-IT413 Insulation Meter, Test Tension Up to 5,000V
- Part #:PCE-IT413
- Condition:Brand New
- List Price: $1,233.00
- $1,004.80 / EachYou Save: 18.51%
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e)
Free Shipping
- List Price: $1,233.00
- $1,004.80 / EachYou Save: 18.51%
- Free Shipping
Insulation MeterPCE-IT413
For high tension up to 5,000
The PCE-IT413 Insulation Meter belongs to a series of highly accurate resistance devices that have a 6 digit display. These Insulation Meters have been developed specifically for technical service and for difficult measurement conditions. One of the advantages is the built in protection to avoid errors originating from loss of current. The Insulation Meter contains a microprocessor and both optical and visual alarms. Factory calibration ensures the most accurate measurements with this series of Insulation Meters.
Features:
- For professionals
- 6 digit LCD
- Measurements according to VDE 0413 part 1
- Test tension up to 5,000V
- 3 year warranty
- Safety standards:
- IEC-1010-1; CAT III
- IEC- 1010- 1
- EN 61010- 1
- EMV
- EN 50081- 1
- EN 50082- 1
- Very good price / quality relationship
Includes:
- 1 x Insulation Meter PCE-IT413
- 1 x Color coded silicon test cable
- 1 x Protective cover for coaxial conductors
- 8 x AAA batteries
- 1 x User's manual
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Model | PCE-IT413 |
| DC test tension | 500 / 1,000 / 2,500 / 5,000V |
| Range of measurement | 30 GΩ / 500V 60 GΩ / 1,000V 150 GΩ / 2,500V 300 GΩ / 5,000V |
| Accuracy | ± 3% |
| Potential output | Maximum of 1 watt |
| Insulation resistance between electrical conduction and the enclosure | 2000 MΩ / 2000V |
| Static tension between enclosure and circuit | 700V AC for a maximum of 1 minute |
| AC warning circuit | For tension > 450V AC |
| Power | 8 batteries (1.5V) |
| Dimensions | 250 x 110 x 190 mm / 9.8 x 4.3 x 7.5 in |
| Weight | 1.5 kg / 3.3 lbs |
