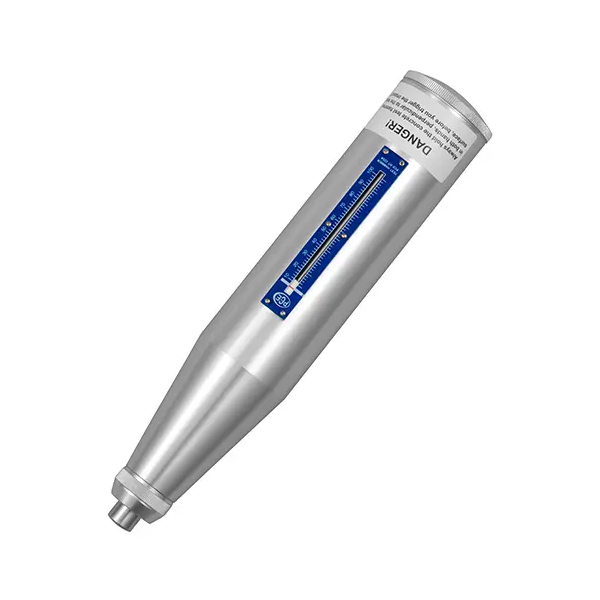

PCE Instruments PCE-HT-75 Hardness Tester Material, 10 to 70 N/mm2

Handheld mechanical durometer for testing low impact concrete

The PCE-HT-75 durometer for concrete is easy to use and is fundamentally used in the construction industry as well as other industrial sectors (testing for Wickel hardness of rolls in commodities). This durometer in the form of a hammer device for testing concrete is based on the Swiss principle of measurement. Testing is always done under the same test energy of 0.735 J. The kinetic energy of the rebound is given by the device as the measurement of the hardness of concrete, of the pressure upon the surface or as the resistance to pressure (kg/cm² or its conversion to N/mm²).

The quality of concrete is useful in understanding the material's resistance to pressure, as an orientating value for testing the load capacity and durability of concrete constructions. Resistance to pressure is represented as a series of numbers and letters, for example: B 25 indicates that the material is normal concrete with a resistance to a pressure equal to 25 N/mm². Different readings exist up to the highest class of resistance which is indicated as B 55. With durometer you will be able to easily and accurately classify concrete. The durometer comes calibrated from the manufacturer but an ISO calibration certificate can be ordered separately at extra cost.

Features:

• Solid design
• Special check body for almost infinite concrete tests
• Very easy to use
• Conversion table no the back
• Measurement adjustments listed in the user's manual
• Optional ISO calibration ceritificate

Includes:

• 1 x Durometer PCE-HT-75
• 1 x Round emery stick for smoothing the surface
• 1 x Carrying case
• 1 x User's manual
