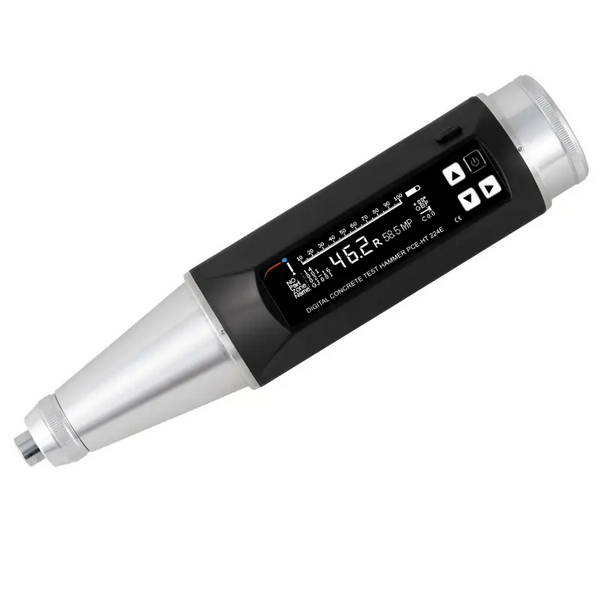

PCE Instruments PCE-HT 224E Hardness Material Tester, 10 to 60 N

Overview

This advanced mechanical concrete hardness tester, the PCE Instruments PCE-HT 224E, is engineered for precise determination of concrete surface quality and strength based on the widely recognized Schmidt principle. It directly addresses the critical need for rapid, non-destructive assessment of concrete integrity in construction and building sectors, providing essential data for quality control and structural evaluation. Featuring a bright OLED display, this hardness tester measures strength from 10 to 100 N/mm² (1500 to 8500 PSI or lbs/in²) and offers display options in N/mm², PSI, MPa, or kgF/cm². Its built-in mechanism ensures a consistent impact energy of 2.207 Joules (Nm), providing reliable and repeatable results for concrete surfaces and even rolled paper. With capabilities for data storage, USB connectivity for PC analysis, and mobile use via a rechargeable battery, the PCE-HT 224E provides construction engineers, quality control professionals, and building inspectors with a versatile, accurate, and essential tool for evaluating concrete quality at various test angles.

Key Features

• Schmidt Principle Testing: Utilizes the widely accepted Schmidt rebound principle for reliable and accurate concrete strength determination.
• Digital OLED Display: Provides a bright and clear readout of measured values, enhancing readability in diverse lighting conditions.
• Wide Measuring Range: Accurately measures concrete strength from 10 to 100 N/mm² (1500 to 8500 PSI or lbs/in²), suitable for various concrete qualities.
• Consistent Impact Energy: Features a built-in mechanism ensuring a constant impact energy of 2.207 J, guaranteeing repeatable and precise results.
• Multi-Angle Measurement: Capable of measuring at test angles of downward(-90°), downward(-45°), horizontal (0°), upward(45°), or upward(90°), offering versatile application.
• Data Storage & PC Connectivity: Stores measured values for later analysis and features a USB interface for connection to a PC, with downloadable software included.

Specifications

Product Name: PCE Instruments PCE-HT 224E Hardness Material Tester

Measuring Principle: Schmidt Principle

Impact Energy: 2.207 J (Nm)

Measuring Range: 10 to 100 N/mm² (1500 to 8500 PSI or lbs/in²)

Display: OLED (Digital Display)

Force Units Displayed: N/mm², PSI, MPa, kgF/cm²

Test Angles: -90°, -45°, 0°, 45°, 90° (downward, horizontal, upward)

Primary Application: Quality of concrete surfaces, hardness of rolled paper

Data Storage: Yes (for later analysis)

Connectivity: USB interface for PC connection

Power: Built-in rechargeable battery for mobile use

Country of Origin: N/A

Shipping Wt: N/A

Temperature Max. Service: N/A

Applications

Ideal for civil engineers, structural engineers, concrete quality control technicians, and building inspectors involved in assessing concrete integrity in construction projects. This hardness tester is essential for evaluating the surface quality of concrete on bridges, buildings, foundations, and precast elements. It is also suitable for quality checks on rolled paper. Its multi-angle measurement capability makes it versatile for testing concrete in various orientations, providing crucial data for structural assessments, identifying material inconsistencies, and ensuring compliance with construction standards for both new builds and existing structures.

Performance and Characteristics

The PCE-HT 224E Hardness Material Tester delivers highly reliable and repeatable concrete strength measurements, thanks to its consistent 2.207 J impact energy based on the Schmidt principle. The clear OLED display provides immediate and precise readings in multiple engineering units (N/mm², PSI, MPa, kgF/cm²), enhancing user efficiency and comprehension. Its ability to perform measurements at various angles (from -90° to +90°) significantly broadens its applicability, allowing for accurate assessments regardless of the concrete surface's orientation. The internal data storage combined with USB connectivity and software provides robust data management capabilities for comprehensive analysis and reporting. The built-in rechargeable battery ensures complete mobility, making it an ideal tool for extensive fieldwork, contributing to efficient project management and improved concrete quality assurance.

Additional Information

The PCE-HT 224E Concrete Test Hammer is a professional-grade instrument designed for the demanding requirements of modern construction and quality control. Its focus on portability, combined with a highly intuitive OLED display and versatile measurement capabilities, makes it an indispensable tool for on-site concrete evaluation. The included software streamlines data analysis, turning raw rebound values into actionable insights for engineers and inspectors. This device represents a valuable investment for professionals committed to precise concrete strength evaluation, ensuring structural integrity and adherence to building codes for all types of concrete structures and, uniquely, the quality of rolled paper surfaces.

Kit Contents

• 1 x Hardness Tester PCE-HT 224E
• 1 x Mini USB cable
• 1 x Emery stone
• 1 x Software (download area)
• 1 x Charger
• 1 x Transport case
• 1 x Instruction manual

Ensure precise concrete strength assessment and surface quality control. Shop the PCE Instruments PCE-HT 224E Concrete Test Hammer today!
