PCE Instruments PCE-HSC 1660 High Speed Cameras, 1.3 Megapixel
- Part #:PCE-HSC 1660
- Condition:Brand New
- List Price: $7,241.00
- $5,827.00 / KitYou Save: 19.53%
%20Copyright%202023%20Fonticons,%20Inc.%20--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048V96H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20272c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2048c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20240c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2016c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20208c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64V416c0%2053%2043%2096%2096%2096s96-43%2096-96H384c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V288%20256%20237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48H112zM544%20237.3V256H416V160h50.7L544%20237.3zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96zm272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201%20-96%200z'/%3e%3c/svg%3e)
Free Shipping

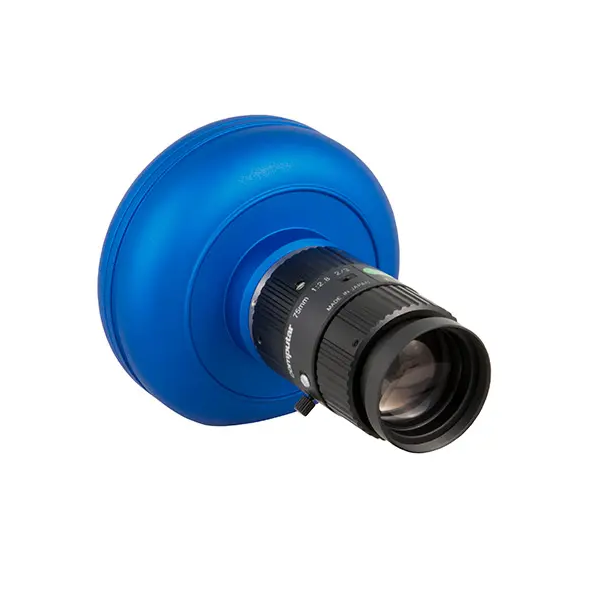

High-Speed Camera PCE-HSC 1660
Up to 2420 pictures per second / Ease of use / USB 3.0 / Software incl. /
Plug and Play / Compact and Robust /
The high-speed camera PCE-HSC 1660 is suitable for simple slow motion recordings in industry and research. With the help of this camera the filming can take place with the refresh rate of 2420 images per second. This high-speed camera is distinguished by its compact design and ease of use. It is connected to the PC or laptop via USB 3.0. The supplied software recognizes the SloMo camera immediately and the recordings can be created immediately after the driver installation. A CMOS image sensor with a memory depth of 10 bits is used in the camera. Thus, the camera is capable of recording high-speed images with a resolution of 1280 x 1024 in black and white. The PCE-HSC 1660 can be mounted on a tripod thread. Mount is C-Thread with F=75 mm / 3 in and f/2.8 lens.
Features:
- USB 3.0 connection
- 1.3 megapixel
- Maximum 2420 FPS
- 10-bit CMOS
- Plug and Play
- Controllable directly via PC
- Trigger port
- Threaded tripod connector
Includes:
- 1 x High-speed camera PCE-HSC 1660
- 1 x 75mm lens f/2.8-2/3 (C-Thread)
- 1 x LED light
- 1 x USB 3.0 cable
- 1 x Remote trigger mechanism
- 1 x Carrying case
- 1 x Software
- 2 x Mini tripod
- 1 x User manual
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov- You May Also Like
- Your Recently Viewed
- Reviews
| Specifications slow motion camera PCE-HSC 1600 | |
| CMOS | 1.3 Megapixel |
| Max. resolution | 1280 x 1024 |
| Max. recording rate | 2420 FPS |
| Resolution / recording rate | 1280 x 1024 / 210 FPS 1024 / 1024 / 260 FPS 1024 x 2768 / 346 FPS 640 x 480 / 825 FPS 512 x 512 / 950 FPS 256 x 256 / 2420 FPS |
| Pixel depth | 10 Bit CMOS |
| Pixel size | 4.8 µm per pixel |
| Memory | Via connected PC |
| Power supply | Via USB 3.0 Port |
| Interface | USB 3.0 |
| Trigger | External |
| Mount and Lens | C-Thread with F=75 mm and f/2.8 |
| Housing material | Aluminium |
| Dimensions | 80 x 74 x 40 mm / 3.1 x 2.9 x 1.6 in |
| Weight | 180 g / < 1 lb (without lens) |
| Operating Conditions | 0 ... 40°C / 32 ... 104°F Max 80% RH |
| Storage conditions | -20 ... 60°C / -4 ... 140°F Max. 95% RH |
| Specifications LED lighting of the slow motion camera PCE-HSC 1660 | |
| Power | 6 x 3W LED |
| Filter | 5800 K Frost filter 3200K Amber filter |
| Dimmer function | Yes |
| Power supply | Main power supply 100 ... 240V AC Output 12V / 2 A |
| Battery pack | 7.4V at 6000-mAh |
| Battery run-time | Approx. 150 minutes |
