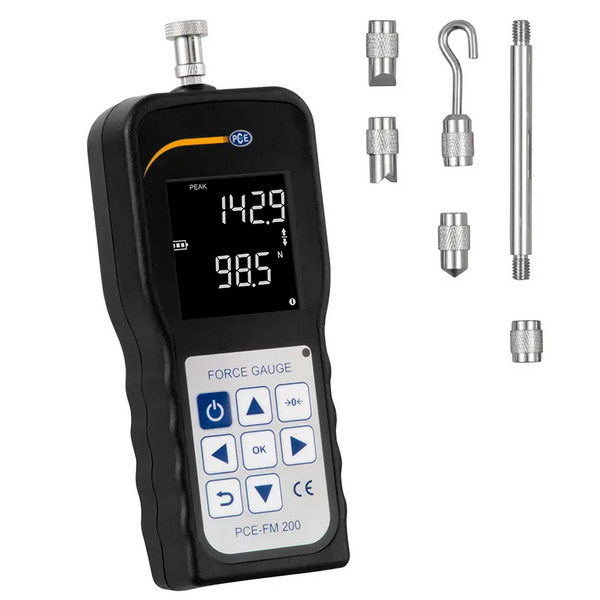

PCE Instruments PCE-FM 200 Digital Force Gauge, 2 to 200 N

Key Facts

• Digital force gauge for tensile force measurement and pressure force measurement from 2 to 200 N
• Measures in N, kg and lb for flexible force testing across different applications
• Includes multiple measuring adapters for differently shaped contact surfaces
• USB interface and downloadable evaluation software for data transmission and analysis
• Peak measurement function for capturing maximum force values
• Rear thread allows mounting on compatible test stands for more reproducible results
• Supplied with a 65 mm / 2.55" extension rod for hard-to-reach measurement points
• Suitable for laboratory work, incoming goods inspection, and general force testing tasks

Overview

The PCE Instruments PCE-FM 200 Digital Force Gauge is a handheld measuring device designed for tensile force measurement and pressure force measurement up to 200 N. It supports readings in N, kg, and lb, making it easier to work with different testing preferences and reporting standards.

This digital force gauge includes several measuring adapters with different shapes so the contact point can be matched more effectively to the surface or part being tested. For pull testing, the included hook adapter is used for tensile force measurements. An extension rod is also included to help reach recessed or difficult access areas during testing.

For users who need more repeatable force testing, the PCE-FM 200 can be mounted on a compatible test stand using the rear thread on the device. This makes it useful for more controlled testing in laboratory environments, production checks, and incoming inspection workflows where consistent positioning and repeatable results matter.

Features

• Measures force from 2 to 200 N
• Supports tensile and compressive force measurement tasks
• Selectable measurement units: N, kg, and lb
• Includes differently shaped measuring adapters
• Peak measurement function for maximum value capture
• USB interface for data transmission
• Downloadable evaluation software included
• Rear thread for mounting on test stands
• Fast measured value display
• Power supply via charging adapter
• Extension rod included for hard-to-reach locations

Technical Specifications

• Measurement range: 2 to 200 N
• Measurement units: N, kg, lb
• Extension rod length: 65 mm / 2.55"
• Interface: USB
• Power supply: Charging adapter
• Charging adapter voltage: 240 V
• Mounting option: Rear thread for test stand installation

Compatibility

• Compatible with force testing applications involving tensile and compressive measurements
• Designed to work with included adapters for different surface shapes and contact points
• Can be mounted on compatible test stands for more reproducible testing procedures
• Suitable for USB-based data transfer and evaluation using the included downloadable software

Use Cases

• Checking pull force and push force during product testing
• Performing tensile force measurements with the included hook adapter
• Evaluating compressive force on differently shaped surfaces using the supplied adapters
• Carrying out repeatable laboratory tests with a mounted force gauge setup
• Inspecting incoming goods for force-related quality checks
• Taking measurements in restricted spaces with the extension rod

What’s Included

• 1 x Force Gauge PCE-FM 200
• 1 x Downloadable evaluation software
• 1 x Flathead adapter
• 1 x Hook adapter
• 1 x Ball head adapter
• 1 x Chisel head adapter
• 1 x Notch head adapter
• 1 x Adapter for extension rod
• 1 x Extension rod (65 mm / 2.55")
• 1 x USB cable
• 1 x Charging adapter (240 V)
• 1 x Equipment case
• 1 x Operation manual

Installation Notes

• Select the appropriate measuring adapter based on the surface shape and type of force test being performed
• Use the hook adapter when performing tensile force measurements
• Install the extension rod when access is limited or the measurement point is recessed
• For more reproducible results, mount the device to a compatible test stand using the rear thread
• Connect via USB when transferring measurement data for software-based evaluation

Category FAQs

What is the PCE-FM 200 used for?

The PCE-FM 200 is used for tensile force measurement and pressure force measurement up to 200 N in handheld or test stand-supported applications.

Can this digital force gauge measure both pull and push forces?

Yes. It is suitable for both tensile and compressive force measurement tasks, and the included hook adapter is specifically used for tensile force measurements.

What units can the force readings be displayed in?

The device can determine force values in N, kg, and lb.

Why are multiple measuring adapters included?

The different adapter shapes help match the contact point to differently designed surfaces, which can improve how force is applied during testing.

When should a force gauge be mounted on a test stand?

A test stand is useful when reproducible measurement results are required. It helps provide more controlled movement and positioning during force measurement.

Is this force gauge suitable for laboratory work?

Yes. The PCE-FM 200 is appropriate for laboratory experiments and other controlled testing tasks where repeatability and data collection are important.

Can it also be used for incoming goods inspection?

Yes. It is suitable for inspection of incoming goods where force-related checks are part of the quality control process.

What is the purpose of the extension rod?

The included 65 mm / 2.55" extension rod helps take measurements in hard-to-reach places where the standard setup may not provide enough access.

How is measurement data evaluated?

The force gauge supports evaluation via its USB interface and includes downloadable evaluation software for data transmission and review.

Is this a handheld force gauge or a bench setup instrument?

It can be used as a handheld force gauge, and it also offers the option to be mounted on a compatible test stand for more controlled testing.
