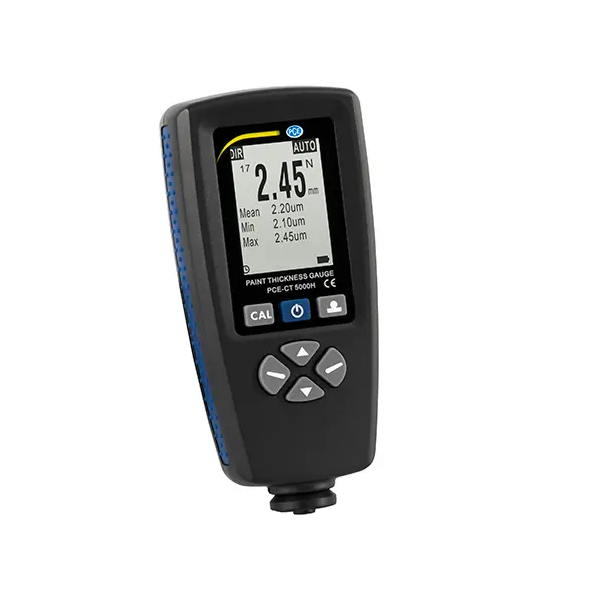

PCE Instruments PCE-CT 5000H Coating Thickness Guage, Includes Type F and Type N probe
- Part #:PCE-CT 5000H
- Condition:Brand New
- List Price: $513.00
- $466.80 / KitYou Save: 9.01%
%20Copyright%202023%20Fonticons,%20Inc.%20--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048V96H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20272c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2048c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20240c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2016c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20208c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64V416c0%2053%2043%2096%2096%2096s96-43%2096-96H384c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V288%20256%20237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48H112zM544%20237.3V256H416V160h50.7L544%20237.3zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96zm272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201%20-96%200z'/%3e%3c/svg%3e)
Free Shipping
- Technical details
- Description
- You May Also Like
- Your Recently Viewed Items
- Reviews
Technical details
| Probe | Type F and Type N |
| Measuring range Type F | 0 ... 5000 μm / 0 ... 5 mm / 0 ... 196 mils |
| Measuring accuracy Type F | ± (2% + 1 μm) |
| Resolution Type F | 0 ... 99.9 μm: 0.1 μm, 100 ... 999 μm: 1 μm > 1000 μm: 0.01 mm |
| Measuring principle Type F | Magnetic induction |
| Smallest thickness of the base material | 0.02 mm |
| Measuring range Type N | 0 ... 3000 μm / 0 ... 3 mm / 0 ... 118 mils |
| Measuring accuracy Type N | ± (2% + 1 μm) |
| Resolution Type N | 0 ... 99.9 μm: 0.1 μm, 100 ... 999 μm: 1 μm > 1000 μm: 0.01 mm |
| Measuring principle Type N | Eddy current |
| Smallest thickness of the base material | 0.05 mm |
| Calibration | One-point to four-point calibration, zero calibration |
| Data storage | Direct measurement (no measurement data storage), four data groups (automatic measurement data storage of up to 2000 measured values) |
| Statistical functions | Number of measurements, average, minimum, maximum, standard deviation |
| Measurement units | μm, mm, mils |
| Alarm | Alarm limits adjustable, alarm symbol is displayed when limits are exceeded |
| Minimum radius of curvature (convex) | 5 mm / 0.2 in |
| Minimum radius of curvature (concave) | 25 mm / 1 in |
| Smallest measuring surface | Diameter of 20 mm / 0.8 in |
| Maximum measuring rate | 2 x per second |
| Data interface | Data transfer via USB |
| Power supply | 2 x 1.5V AAA batteries |
| Menu languages | German, English, Russian, Chinese |
| Operating conditions | 0 ... 50°C / 32 ... 122°F, 20 ... 90% RH |
| Storage conditions | -10 ... 60°C / 14 ... 140°F |
| Standards | CE ROHS FCC |
| Dimensions | 110 x 53 x 24 mm / 4.33 x 2.09 x 0.95 in |
| Material housing | ABS plastic |
| Weight | 92 g / < 1 lb |
