PCE Instruments PCE-CSM 6 Colorimeter, High Accuracy

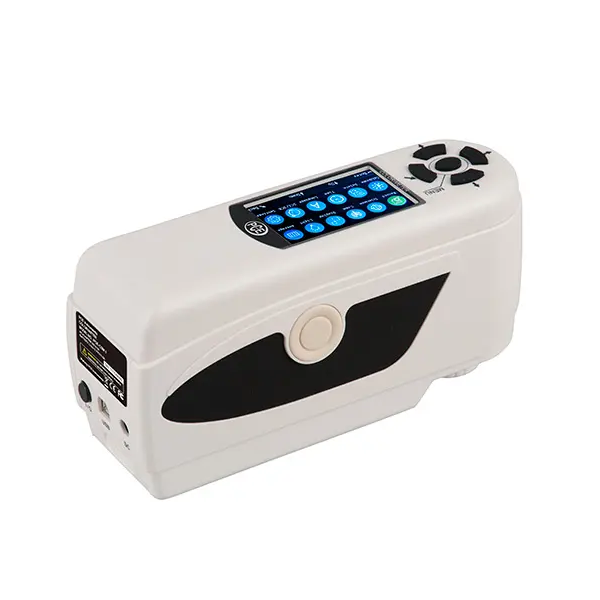

Colorimeter PCE-CSM 6 for quality control

PC software included / Li-ion battery / different color spaces /

determination of reference values and samples / white calibration

The colorimeter PCE-CSM 6 was developed for quality control and offers a high accuracy. When using the colorimeter, you can choose between different color spaces (CIE L*a*b, CIE L*a*b*C*h). After a measurement with the colorimeter, the reading can be used as a reference value while other readings can be recorded as a sample and later be compared to the reference value easily. Useful for determining color difference, chromaticity index, color sample database management, and color difference cumulative analysis.

In addition to the individual color space coordinates, the deviation between the readings is also displayed. When using the colorimeter, it is possible to store up to 100 reference values and up to 20000 samples on the device. The measured data can also be transferred to a PC via the USB interface. A special PC software is included in the package.

Features:

• CIE L*a*b*C*h, CIE L*a*b*
• white calibration
• determination of reference values and samples
• measuring aperture: Ø8 mm
• rechargeable lithium-ion battery
• high accuracy
• easy to use
• incl. PC software
• D65 light source

Includes:

• 1 x Color meter PCE-CSM 6
• 1 x Aluminium carrying case
• 1 x Lithium-ion battery
• 1 x Mains adapter
• 1 x Calibration plate (white)
• 1 x PC software
• 1 x Instruction manual
