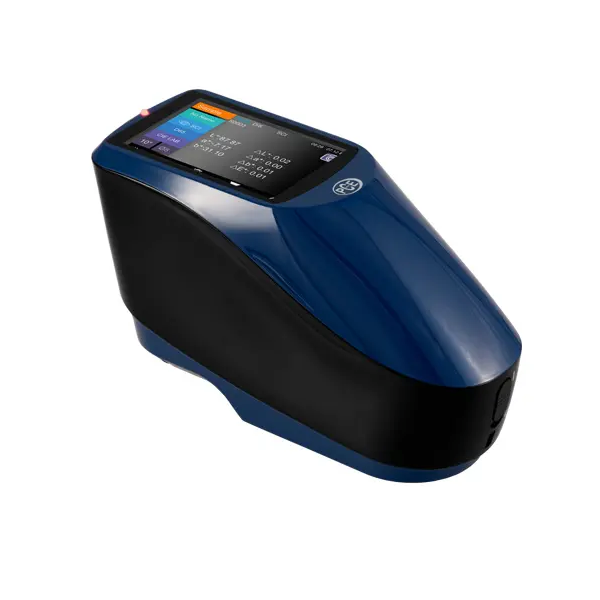

PCE Instruments PCE-CSM 20 Colorimeter, Wirless Connection
- Part #:PCE-CSM 20
- Condition:Brand New
- List Price: $6,969.00
- $5,630.00 / KitYou Save: 19.21%
%20Copyright%202023%20Fonticons,%20Inc.%20--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048V96H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20272c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2048c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20240c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2016c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20208c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64V416c0%2053%2043%2096%2096%2096s96-43%2096-96H384c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V288%20256%20237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48H112zM544%20237.3V256H416V160h50.7L544%20237.3zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96zm272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201%20-96%200z'/%3e%3c/svg%3e)
Free Shipping
Colorimeter
High-quality spectrophotometer / Powerful lithium-ion battery / Single or average value measurement / Evaluation via USB / 4 options for light source
PCE-CSM 20 is a handheld colorimeter used for high-quality color measurement. Featuring a single 8 mm aperture and including SCI and SCE specular modes for industrial color measuring applications, the colorimeter offers a long battery life, a 4-color lamp life and an easy-to-use portable design. The powerful battery allows up to 5000 measurements. The lighting used on the colorimeter is designed to carry out three million measurements. Camera/illumination locating for small samples.
The high-quality processing of the colorimeter is very fast. The ability to choose aperture size and light source allows the user to discriminate between colors that may look the same. Four color space choices allow the user to choose the best space for their samples. The 256 image element double array CMOS imager allows measurement from 400 to 700 nm in 10 nm increments. The measured data can be transmitted to a computer via included USB. Sophisticated analysis software is also included in the delivery contents.
Features:
- Long battery life
- USB cable for data transfer to included software
- Portable for ease of use
- Reference memory of 2000 colors, storage for 20,000 samples
- Includes white and black calibration standards
- High measuring accuracy and stability with 4 illumination choices
- Single and average measurements with delta pass/fail display
- Spectrophotometer measures from 400 to 700 nm in 10 nm increments
- Conforms with CIE No. 15, GB/T 3978, GB2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil
Includes:
- 1 x Colorimeter PCE-CSM 20
- 1 x Li-Ion battery (installed)
- 1 x Calibration standard (white and black)
- 1 x Charging adapter
- 1 x Dust cover
- 1 x USB cable
- 1 x Factory calibration certificate
- 1 x CD-Rom with software
- 1 x Cleaning cloth
- 1 x User manual
- 1 x aluminum carry case
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov- You May Also Like
- Your Recently Viewed
- Reviews
| Measuring geometry | 8° / d |
| Integrated sphere size | 48 mm |
| Light source | LED lighting system, UV light |
| Spectrophotometric operation | Concave grid |
| Sensor | 256 Pixel CMOS image sensor |
| Wavelength range | 400 ... 700 nm |
| Wavelength interval | 10 nm |
| Measured reflection range | 0 ... 200% |
| Measuring aperture | Single panel: 8 mm (0.3") |
| Specular component | SCI, SCE |
| Color ranges | CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB |
| Formulas for color inequality | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter) |
| Other colorimetric index | WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO), Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness |
| Lighting type | D65, A, C, D50 |
| Viewing angle | 2° / 10° |
| Data display | Spectrogram values, color values samples, color difference values / graph, pass / fail result, color balance |
| Measuring time | 2.6 seconds |
| Repeatability | Standard deviation within ΔE*ab 0.06 Average of 30 measurements of standard white plate |
| Error between equipment | ΔE*ab 0.4 |
| Measurement mode | Single measurement, average value measurement |
| Tracking procedure | Finding the measuring points by camera |
| Power supply | Built-in Li-ion battery |
| Dimensions | 184 x 77 x 105 mm / 7.2 x 3.0 x 4.1" (L x W x H) |
| Weight | 600 g / 1.3 lbs |
| Lamp lifespan | 5 years / over 3 million measurements |
| Display | 3.5 in TFT color LCD, capacitive touch screen |
| Data interface | USB |
| Data storage | 2000 standards, 20,000 samples |
| Menu languages | English, Chinese |
| Operating conditions | 0 ... 40°C / 32 ... 104°F 0 ... 85% relative humidity (non-condensing) |
| Storage conditions | -20 ... 50°C / -4 ... 122°F 0 ... 85% relative humidity (non-condensing) |
